Model CRX-6.5K Cryogenic Probe Station

The CRX-6.5K provides a low-cost, general-purpose solution for those looking for the convenience of cryogen-free operation and the dependable measurement performance of a Lake Shore product. Using a self-contained closed cycle refrigerator (CCR), the station cools down to cryogenic temperatures unassisted, eliminating the need for monitoring by the researcher. Its versatility and affordability make the CRX-6.5K the tool of choice for many researchers worldwide.

I-V, C-V, and microwave measurements are standard on the CRX-6.5K. The 2-stage CCR allows the sample to be maintained at elevated temperature during cooldown, reducing the potential for condensation, a critical requirement for measuring organic materials.


The CRX-6.5K operates over a temperature range of 8 K to 350 K with the option to extend to a higher range of 20 K to 675 K. This model accommodates full and partial wafers up to 51 mm (2 in) in diameter. A wide selection of probes, cables, sample holders, and options makes it possible to meet specific measurement applications.

Sample holders
Probing configurations
Vision system
Sample temperature accuracy is key

Features of the Model CRX-6.5K Affordable Cryogen-free Probe Station

  • Cryogen-free operation
  • Push-button operation and allows unsupervised cooldown
  • Affordability





DR. SHAYZ IKRAM

TECHNICAL DIRECTOR
+44 (0)1372 378822
shayz@qd-uki.co.uk

JOSH HOOK

SALES/SERVICE SUPPORT ENGINEER
+44 (0)1372 378822
josh@qd-uki.co.uk

Downloads

Supplier Info

For even more information, why not visit our suppliers website.

Visit website

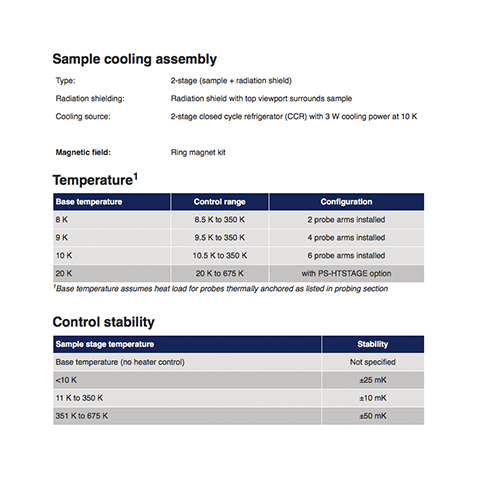

CRX-6.5K Specifications
