Moxtek Mid to High Powered Sources
High Energy Imaging Applications
Moxtek is a manufacturer of x-ray sources for both handheld and bench-top XRF instruments which have many desired functional characteristics.
High energy imaging in a compact package. Mox140G is a complete X-ray source that is ideally configured at:
High energy imaging applications (140kV) compact (3.5in x 3.5in x 5in) lite weight (1.9kb) package.
Side window tubes have approximately 30% higher x-ray flux compared to end window tubes, which helps in applications that rely on counting low numbers of photons, such as X-Ray Diffraction (XRD).

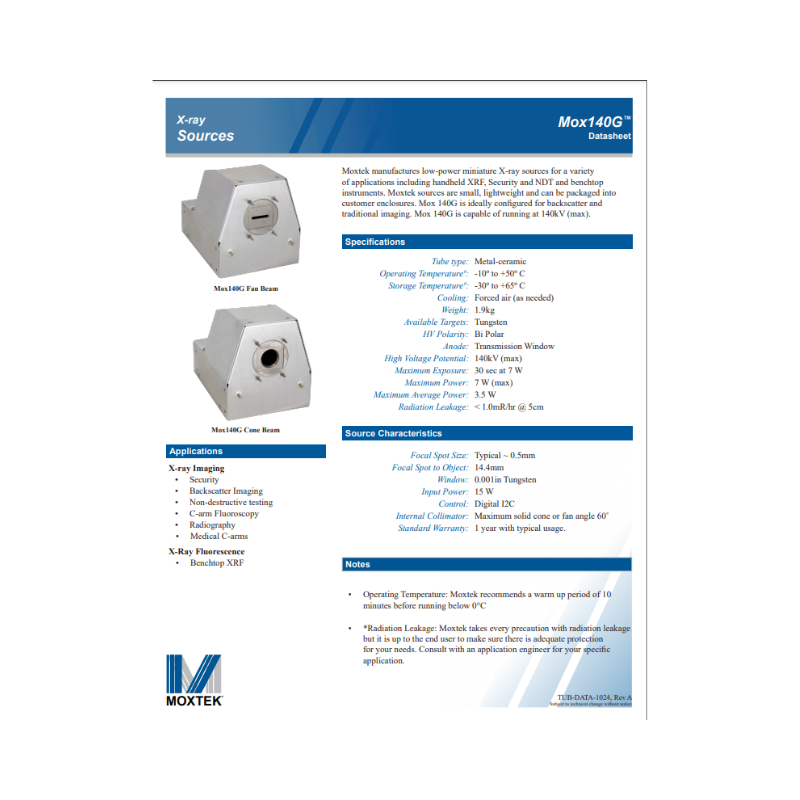

For more information, please view our datasheet or contact us.
Whilst there are off-the-shelf X-ray sources available, with default windows and target materials, as shown in the below tables, all of these sources are also customisable upon request.
CONFIGURATION OPTIONS
- Cone beam window or Fan beam window
- 120kV or 140kV
Related FAQs
What power supply controller do you recommend for Moxtek tubes?
Does Moxtek offer the power supply for x-ray tubes?
What are the dimensions of MOXTEK X-ray sources?
Does Moxtek offer any sources with imaging capabilities?
Does Moxtek manufacture tubes with higher voltage than 40kV?
Profile
Profile
Profile
Profile
Profile
Profile
Profile
SPECIFICATIONS
| Mid – High Powered Sources | Beam Current | Focal Spot | Window | Available Targets | Application | Link to datasheet |
| Mox140G | ~0.5mm | W, 0.001in | W | X-ray Imaging
· Security · Backscatter Imaging · Non-destructive testing · C-arm Fluoroscopy · Radiography · Medical C-arms X-Ray Fluorescence · Benchtop XRF |
TUB-DATA-1024-Mox140G-Rev-A-1.pdf (moxtek.com) | |
| FAAST Reflection Source | Si, Cr, Cu, Au, Mo, Rh, W | · | Reflection X-ray Source – Sigray | |||
| MAAST Transmission Source | · | Talbot-Lau X-ray Source – Sigray |
VIDEOS
Downloads
Supplier Info
APPLICATIONS
Handheld Backscatter
Handheld Imaging C-Arm
Micro CT
Crawlers and Drones
Portable Radiography
