Lake Shore 4 K CCR Series Cryostats

4 K cryogen-free closed-cycle refrigerators

Optimised for ease of use and versatility, the Lake Shore 4 K CCR Series cryostats provide uniform cooling of powders, liquids, and irregularly shaped solid samples down to 4 K. Heaters and sensors on both the copper sample chamber and sample mount are used with a dual-loop temperature controller for rapid and precise sample temperature control.

Lake Shore offers a variety of 4 K cryocoolers – see the range here

Popular models

For more information please visit Lake Shore Cryotronics

Two-stage Gifford-McMahon (G-M) refrigerator systems have been in widespread use for several decades. Room temperature helium gas is first compressed and then supplied to the refrigerator via flexible gas lines. The compressed helium is cooled by expansion and provides cooling to two heat stations on the refrigerator. After cooling the refrigerator, the gas is returned to the compressor to repeat the cycle.

Pulse tube (PT) refrigerator systems use a similar compression/expansion cycle but eliminate the moving regenerator found in G-M cryocoolers. PT cryocoolers often have reduced vibration levels at the vacuum interface flange as compared with G-M systems.

Is a 4 K cryocooler economically practical?

Prior to the introduction of 4 K cryocoolers, liquid helium was most commonly used to cool equipment and experiments to 4 K. The following chart shows the operating cost of a typical liquid helium-cooled apparatus (not including storage Dewar evaporative losses). In some cases, the entire cost of a 4 K refrigerator can be recovered in the first year!

FEATURES



  • 4 K to 325 K (options for 500 K and 800 K)
  • Low-vibration 40 nm option
  • Autorotation option
Profile
David Want Quantum Design UK and Ireland
Name

DAVID WANT

Job Title

Product Specialist

Phone
Email
Profile
Name

TECHNICAL SALES TEAM

Job Title

Support Team

Phone
Email
Profile
Name

ASHLEY CRANE

Job Title

Sales Manager

Phone
Email
Profile
Dr Jordan Thompson Quantum Design UK and Ireland
Name

JORDAN THOMPSON

Job Title

Service Engineer

Phone
Email
Profile
Quantum Design UK and Ireland Dr Shayz Ikram
Name

DR SHAYZ IKRAM

Job Title

Product Specialist

Phone
Email
Profile
Name

JOSH HOOK

Job Title

Sales/Service Support Engineer

Phone
Email
Profile

Name

LUKE NICHOLLS

Job Title

Technical Sales Engineer

Phone

+44 (0)1372 378822

Email

luke@qd-uki.co.uk

SPECIFICATIONS



Cooling type Cryogen-free
Minimum temperature 4 K
Maximum temperature 800 K
Vibration Low-vibration 40 nm option
Cryocooler Gifford-McMahon
Cryocooler power options 0.2 W, 0.7 W, 1 W, 1.2 W, 1.5 W, 2.0 W at 4.2 K

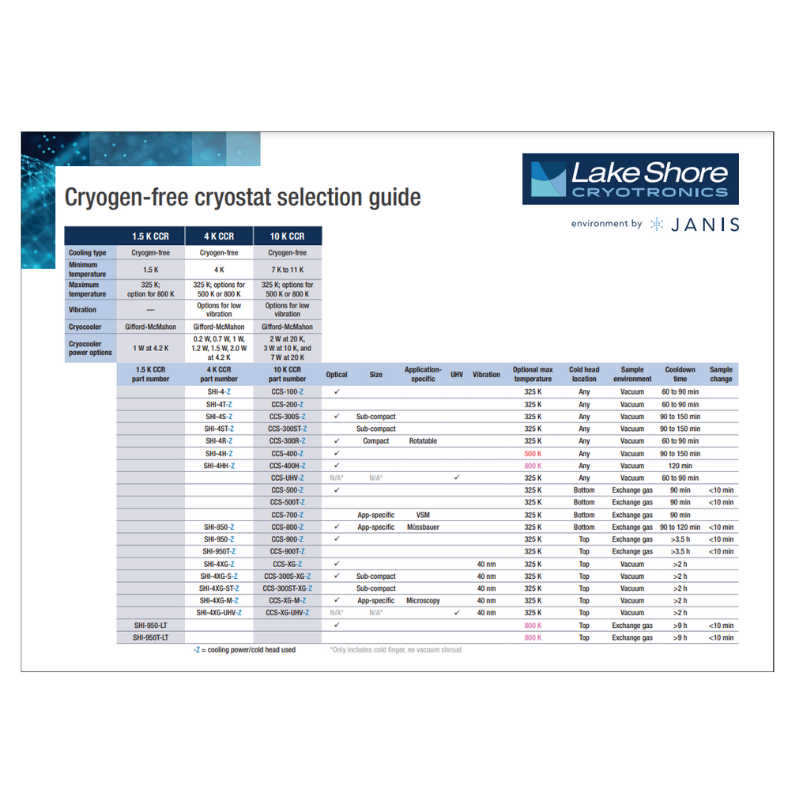

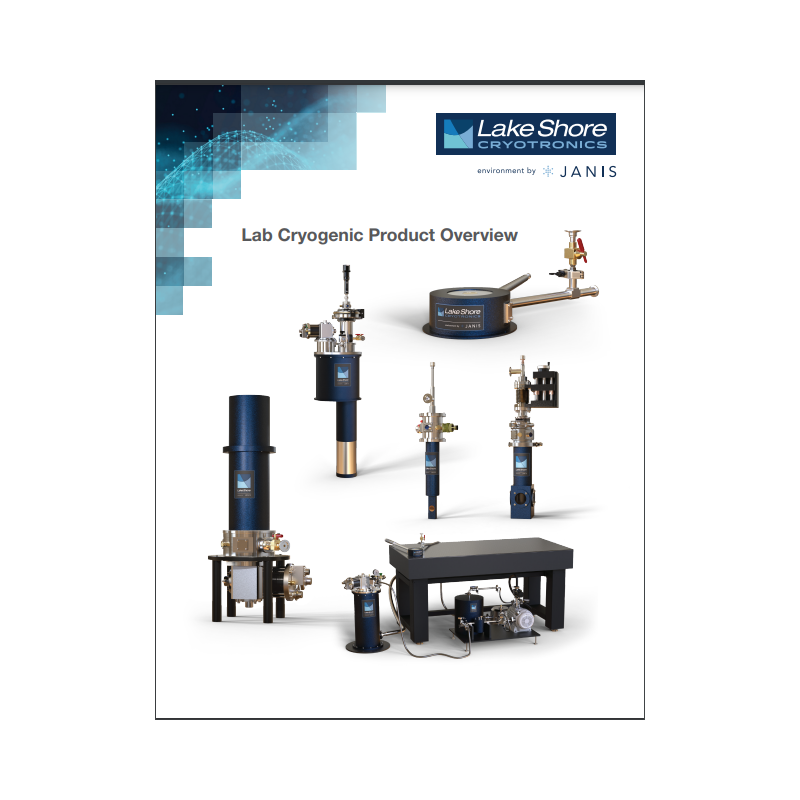

Downloads
