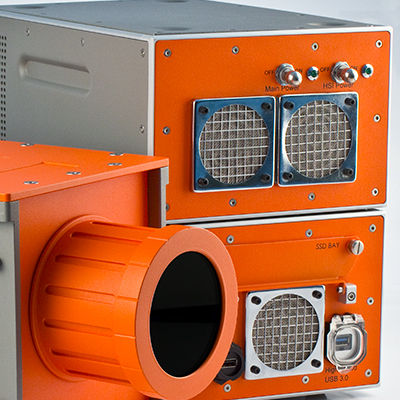

Specim SWIR imspector N25E Spectral Camera
Cryogenically-cooled MCT camera for the 1-2.5µm thermal range
For hyperspectral imaging applications in the SWIR (1000-2500 nm) Specim offer a cryogenically-cooled MCT camera with 384 spatial pixels (MTTF 25,000 hours). A frame rate of 450 fps (full frame) is achieved through the CameraLink (CL) interface. The camera is IP54 rated, making it suitable for both indoor and outdoor use.
- Chemical and material sorting
- Pharmaceutical manufacture
- Mineral mapping
- Food and agriculture
- Moisture content distribution
- Art research and archiving
An electro-mechanical shutter is included for dark image acquisition and crucially all optics are temperature stabilised – an important consideration when operating in this specific spectral range.
- 1000-2500 nm spectral range
- 12 nm spectral resolution
- 288 spectral bands
- Optics temperature stabilisation
- 384 spatial pixels
- 450 fps (full frame)
- CL interface
- 1050:1 SNR (peak)
For hyperspectral imaging applications in the SWIR (1000-2500 nm) Specim offer a cryogenically-cooled MCT camera with 384 spatial pixels (MTTF 25,000 hours). A frame rate of 450 fps (full frame) is achieved through the CameraLink (CL) interface. The camera is IP54 rated, making it suitable for both indoor and outdoor use. An electro-mechanical shutter is included for dark image acquisition and crucially all optics are temperature stabilised – an important consideration when operating in this specific spectral range.
1000-2500 nm spectral range
12 nm spectral resolution
288 spectral bands
Optics temperature stabilisation
384 spatial pixels
450 fps (full frame)
1050:1 SNR (peak)
What’s Really in Your Meat?
Raw meat, poultry and fish have a high risk of quality issues and contamination, and reliable meat inspection process is a necessity to guarantee that the products are high quality, safe and in compliance with the strict safety requirements.
Remote Sensing In Agriculture
Remote sensing is a term commonly used to describe a setting where information is acquired from a distance. During the last few years a tremendous increase has been seen in the use of unmanned airborne vehicles (UAVs) for data acquisition in agriculture. Hyperspectral cameras are seeing increased use in this field as they enable the detection of phenomena that are difficult or impossible to detect using other remote sensing techniques.
Wide product variety, high manufacturing speed and quality requirements in the baked goods industry calls for a flexible solution that can transfer from one product to another. Hyperspectral imaging plays an important role where traditional colour, spectral or x-ray cameras cannot provide a full solution. The non-invasive technology gives results without touching the goods and can detect contamination or foreign objects, moisture, chemical composition, or colour with unmatched accuracy and detail, improving quality and reducing waste and costs.
Sorting with Specim FX Cameras
Specim FX cameras enable you to add precise and reliable chemical identification to your vision and sorting systems. Compared to traditional colour and shape-based sorting, chemical identification will increase the value in the sorting results in many cases, like waste processing and recycling, food and feed and agricultural product processing, and the mining industry.
Make Right Sorting Decisions
Specim FX cameras can reveal much more than traditional colour and filter cameras or point spectrometers. Hyperspectral imaging can be used to detect blemishes and bruising under the skin of fruits, define ripeness and chemical quality independent of the fruit colour and size, and find and remove foreign materials like plastic, wood, paper, metal, or insects when sorting fruit in a production line.
Inspecting Heat Sealed Packages
Good seals can only be made on clean material: any contamination between the seal and the package is no longer airtight. As a result, air and contaminants such as moulds, fungus or bacteria can enter the package and ruin the product well before the expiration date. It is crucial that the incomplete seams and leaking packages are found already on the production line. Hyperspectral imaging is the only imaging method that reliably finds the imperfect seals through the sealing film, even when the package is printed.
Art Conservation and Analysis
Advances in technology are changing the world of art and cultural heritage investigation, and hyperspectral imaging has found its place there. With imaging technology, there is no risk of damaging the works of art: it is a non-invasive and safe way to collect data from paintings and manuscripts.
Food Fraud Detection
Minimise the risk of food fraud, protect your customers as well as your brand reputation and ensure food authenticity with hyperspectral imaging. It is a quick and reliable way to check food quality and safety on the spot.
