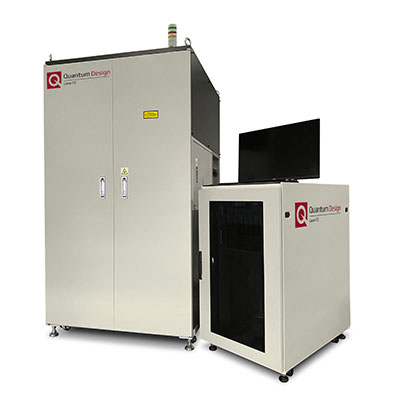

Quantum Design Laser-Based Floating Zone Furnace

Laser based floating zone furnace

Quantum Design is proud to introduce a laser-based floating zone (FZ) furnace for the production of long single crystals. This system, based on technology developed by RIKEN CEMS (Centre for Emergent Matter Science) in Japan, promises the opportunity to grow materials unable to be grown by traditional floating zone methods.

Features

  • Wide temperature range from 500 °C to 3000 °C
  • Reduction of thermal stresses due to adapted laser profile
  • Real-time temperature monitoring
  • Suitable for degassing materials
  • High laser stability due to patented design
Profile
David Want Quantum Design UK and Ireland
Name

DAVID WANT

Job Title

Product Specialist

Phone
Email
Profile
Name

TECHNICAL SALES TEAM

Job Title

Support Team

Phone
Email
Profile
Name

ASHLEY CRANE

Job Title

Sales Manager

Phone
Email
Profile
Dr Jordan Thompson Quantum Design UK and Ireland
Name

JORDAN THOMPSON

Job Title

Service Engineer

Phone
Email
Profile
Quantum Design UK and Ireland Dr Shayz Ikram
Name

DR SHAYZ IKRAM

Job Title

Product Specialist

Phone
Email
Profile
Name

JOSH HOOK

Job Title

Sales/Service Support Engineer

Phone
Email
Profile
Name

LUKE NICHOLLS

Job Title

Technical Sales Engineer

Phone
Email

Specifications

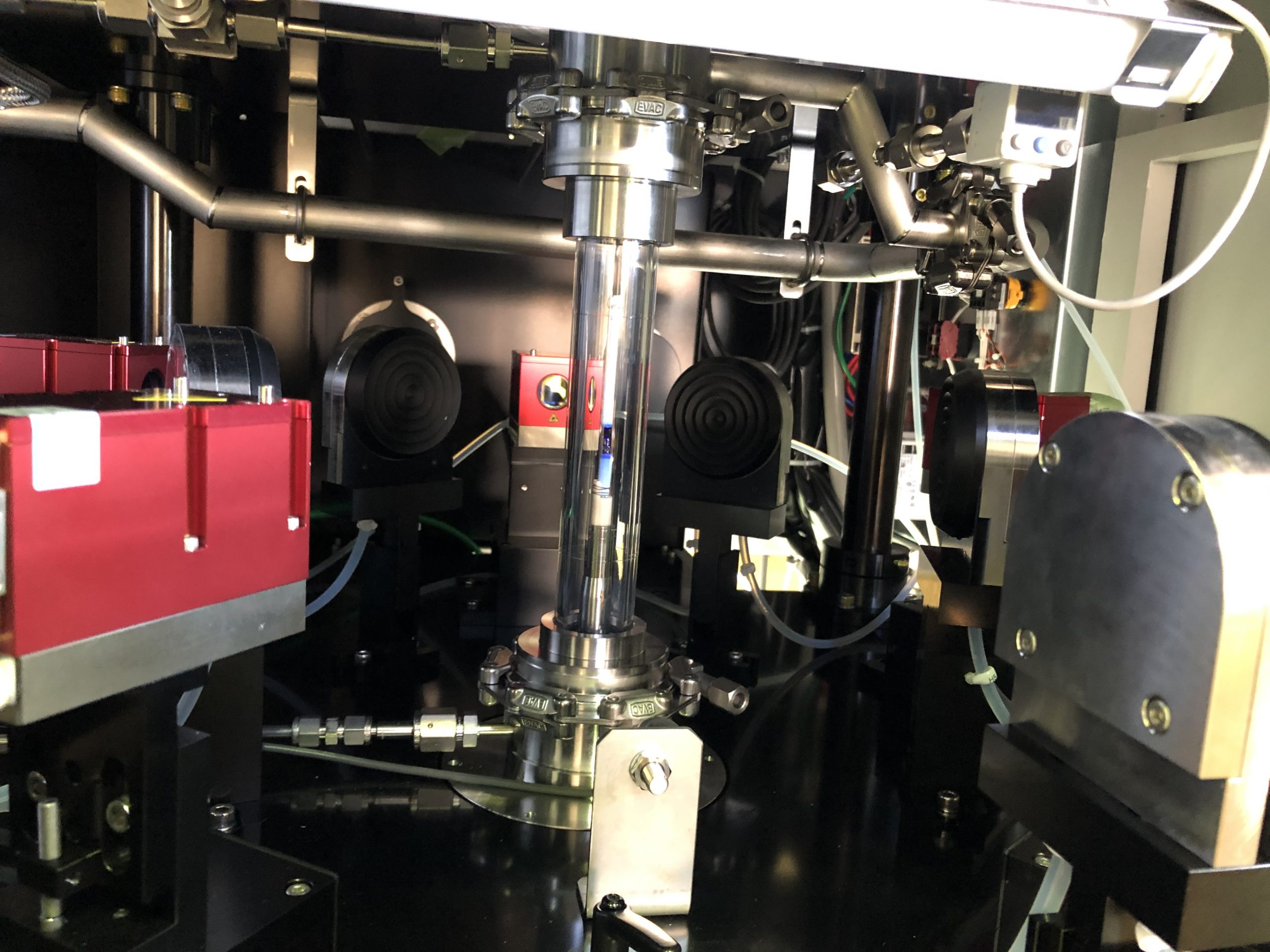

  • 5 laser beams/heads
  • 2000 watts laser power in FZ region (400 watts × 5 beams)
  • 400 °C ~ 3000 °C Temperature range (material dependent)
  • 400 °C ~ 3500 °C  Temperature monitoring (radiation thermometer)
  • ±1 °C Temperature reproducible over entire temperature range
  • Crystal growth max. length 150 mm
  • Crystal growth control 8 mm
  • Growth/rotation speed 0.1 to 200 mm (mm/hr), 0.1 to 40 rpm
  • 1*10-4 torr to 10 bar pressure range
  • User-supplied external gas
  • High vision full HDTV camera for growth monitoring
  • Ubiquitous control possible by PC/Smartphone from your desk/home for remote monitoring/control of the crystal growth process
  • Dimension D 140 x W 210 x H 200 [cm]
