Moxtek Polarisers

The Moxtek linear polarisers and beam splitters are constructed completely from inorganic materials. This allows them to be more tolerant to high temperature or high photon flux environments compared to organic polymer film polarisers. This is especially important in UV curing and projection display applications.

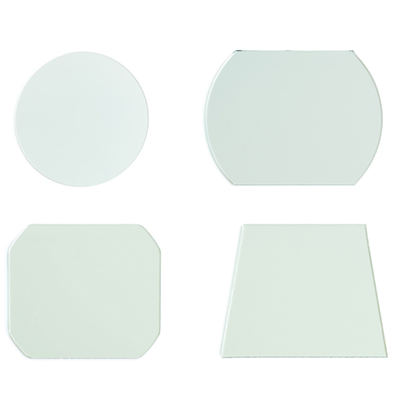

All parts are cut from 200 mm diameter wafers, enabling great flexibility in custom shapes or sizes. Cut parts can then be mounted, or encapsulated to add an additional layer of protection.

Due to the nature of these components, there exists very few standard configurations. Therefore, please contact us to discuss your specific requirement.

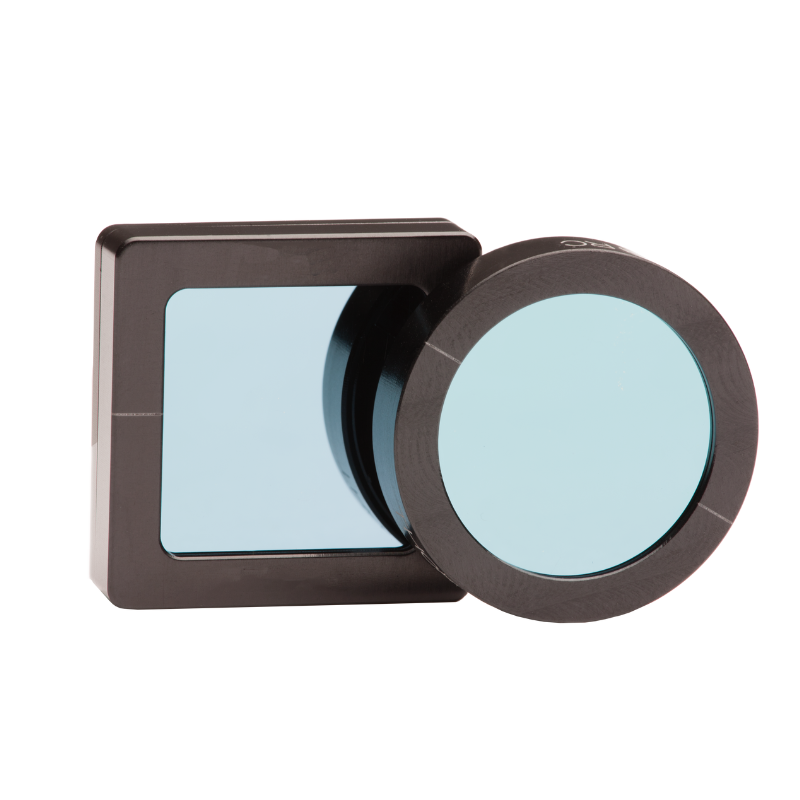

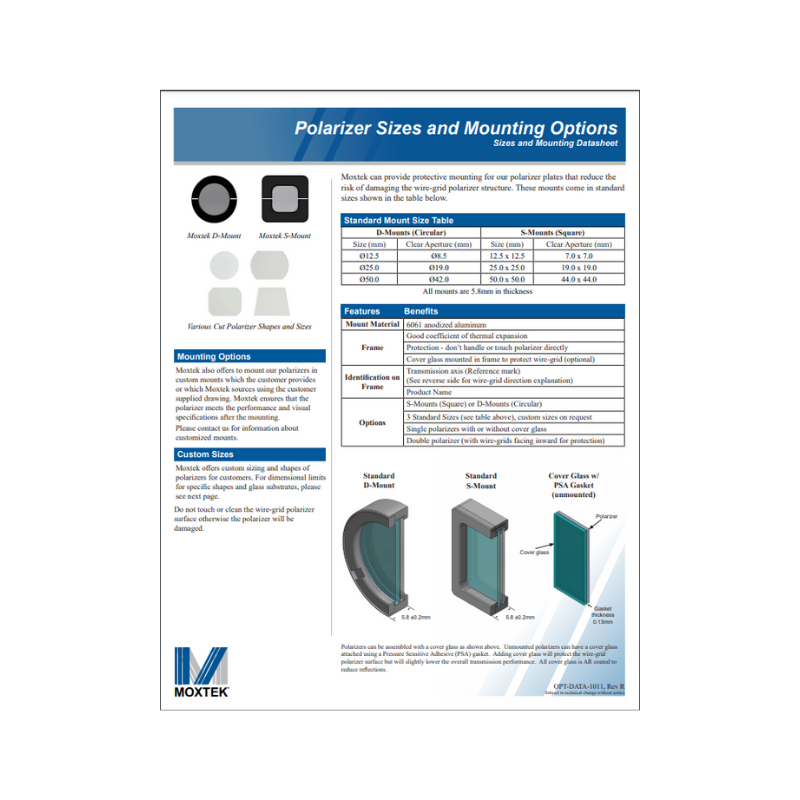

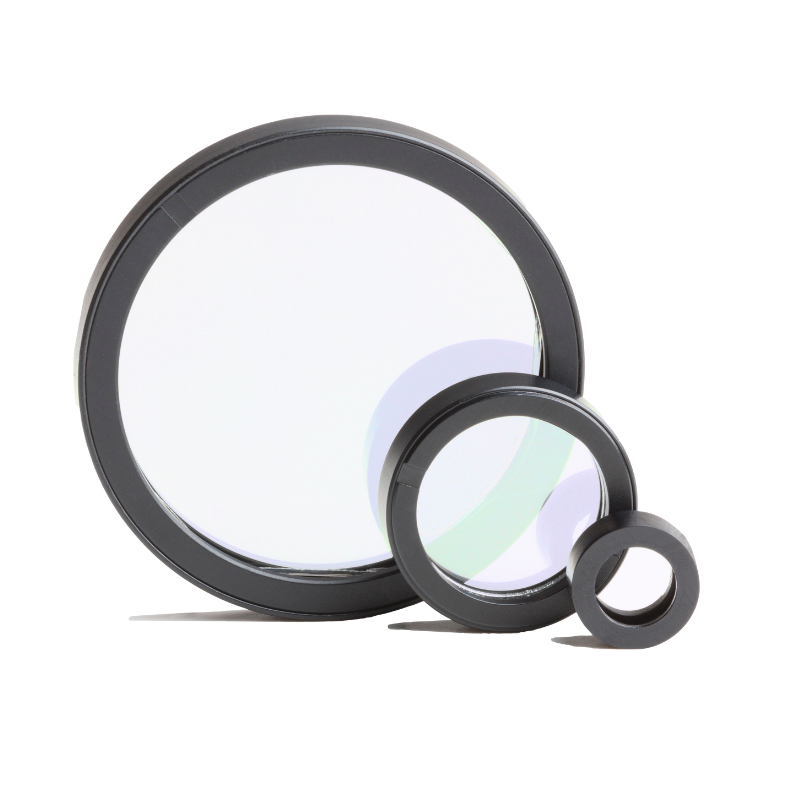

Moxtek can provide protective mounting for their polariser plates that reduce the risk of damaging the wire-grid polariser structure. These mounts come in standard sizes shown in the included datasheet.

MODELS

Absorptive visible polarisers for RGB Channels

All parts are cut from 200 mm diameter wafers, enabling great flexibility in custom shapes or sizes. Cut parts can then be mounted, or encapsulated to add an additional layer of protection.

FEATURES

Configurable for high transmission or high contrast performance
Custom sizing available
Wavelength independent performance (broadband models)
Wide acceptance angle (± 20 degrees)
Tolerant to high temperature and high photon flux environments

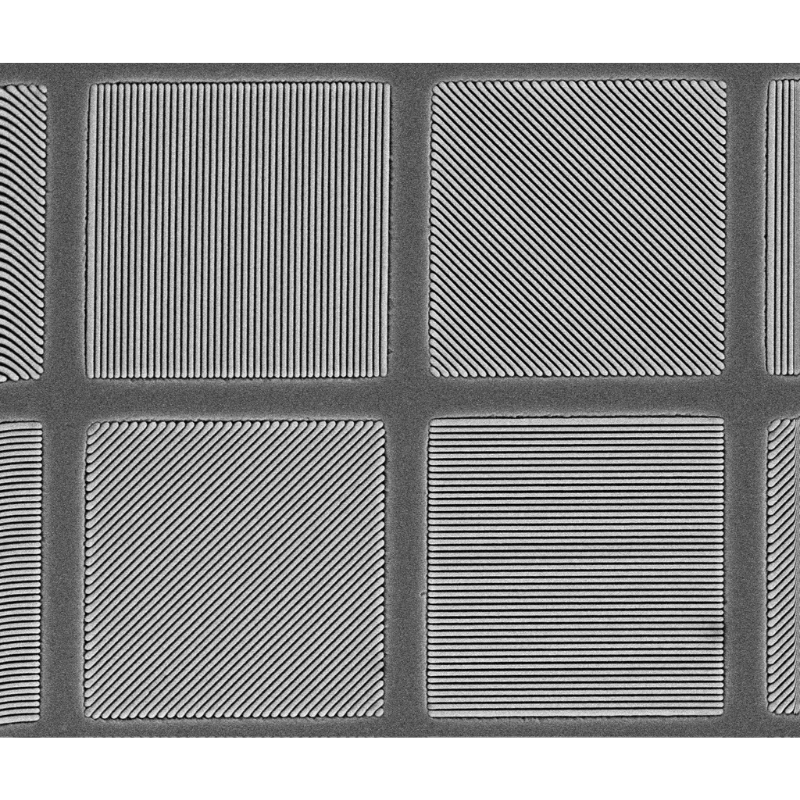

Pixelated Polarisers using micro-pattern grids

Moxtek has created unique Pixelated Polarisers using an array of micro-pattered Nanowire^® grids.
These versatile Pixelated Polarisers can be aligned with cameras, plane arrays, interferometers, and microbolometers without the need for mechanical polariser switches. Using the Pixelated Polarisers, vibrant images distinguishing between multiple polarisations across the visible and IR wavelengths can be captured simultaneously in real-time enabling fast, high resolution images. These polarisers also enable clear 2D and 3D images even in low-light conditions. We offer patterned polarisers for two, three and four-state imaging devices

FEATURES

User defined geometries
Low cross-talk
Accurate registration
Allow for single camera systems

CONFIGURABLE PARAMETERS

Size
Shape
Polarisation states (up to 4)
Transmission axis
Pixel size
Pixel arrangement
Visual criteria
Pixel pitch
Spacing between pixels

UltraViolet Polarisers for UV and broadband applications

Moxtek Ultraviolet polarisers are used for a wide range of UV and broadband applications where performance, contrast, and durability is important. The UVT and UVD Series polarisers offer excellent broadband performance into the IR wavelengths. New applications are emerging.

The UVT and UVD Series ProFlux Nanowire Ultraviolet polarisers offer excellent solutions for UV and DUV applications. High transmission and high contrast choices are available. The high transmission products are indicated by UVT and the high contrast products are indicated by UVD. The UVT series are naturally capable of broadband applications into the NIR spectral range to 4μm.

Use of polarisers in the ultraviolet spectrum is a demanding environment. ProFlux is ready for the challenge.

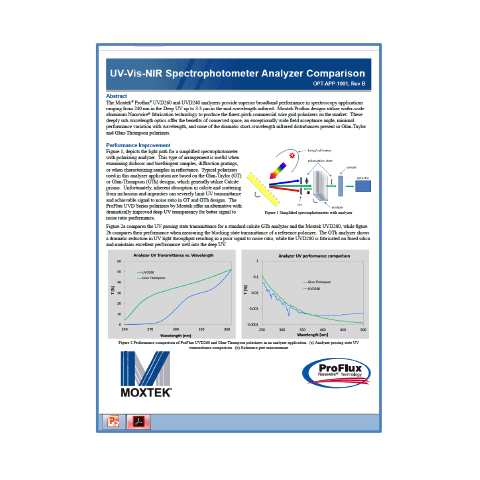

Typical applications include UV curing, forensics, photo-alignment and spectrophotometry. The UVD parts in particular are an excellent alternative to Glan-Taylor or Glan-Thompson components commonly found in commercial spectrophotomer instruments.

FEATURES

Brightness and contrast uniformity
>20° half angle without performance loss
Wavelength and AOI independent
High heat resistance

CONFIGURABLE PARAMETERS

Transmission levels
Contrast levels
Size
Transmission axis
Visual criteria

Heat tolerant visible polarisers

Moxtek visible polarisers are heat tolerant, accept wide angles of incidence, and have high transmission and contrast. These features make them excellent for use in projection applications. Their light weight and small size also make them ideal for use in head mounted displays.

We offer both reflective and absorptive polarisers.

FEATURES

Brightness and contrast uniformity
>20° half angle without performance loss
Wavelength and AOI independent
High heat resistance

CONFIGURABLE PARAMETERS

Transmission levels
Contrast levels
Size
Transmission axis
Visual criteria
Shape

Optimised to provide uniform polarisation

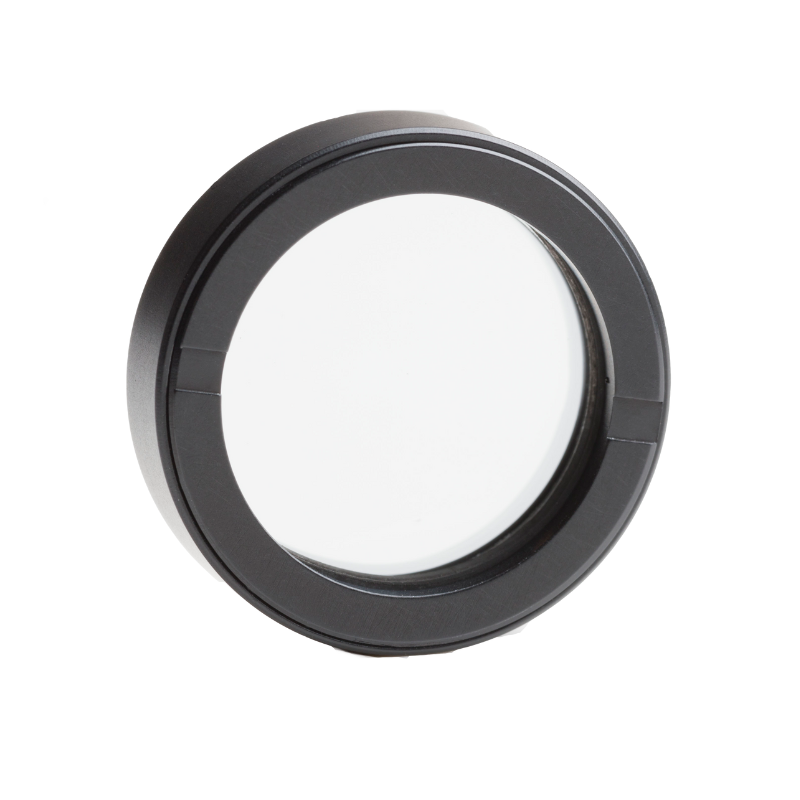

The Moxtek ProFlux^® Ultra Broadband polarisers are optimised to provide uniform polarisation over a broad range from 300 nm to more than 4 microns. The versatility of our high contrast broadband products eliminate the need to switch or rotate multiple polarisers.

Transmission is relatively constant from 400nm to 3.2 microns while contrast increases throughout this range.

FEATURES

Brightness and contrast uniformity
>20° half angle without performance loss
Wavelength and AOI independent
High heat resistance

CONFIGURABLE PARAMETERS

Transmission levels
Contrast levels
Size
Transmission axis
Visual criteria
Shape

SPECIFICATIONS

Polarisers	Options	Wavelength Range	Substrate type	Thickness	Max Temp	Application	Datasheet

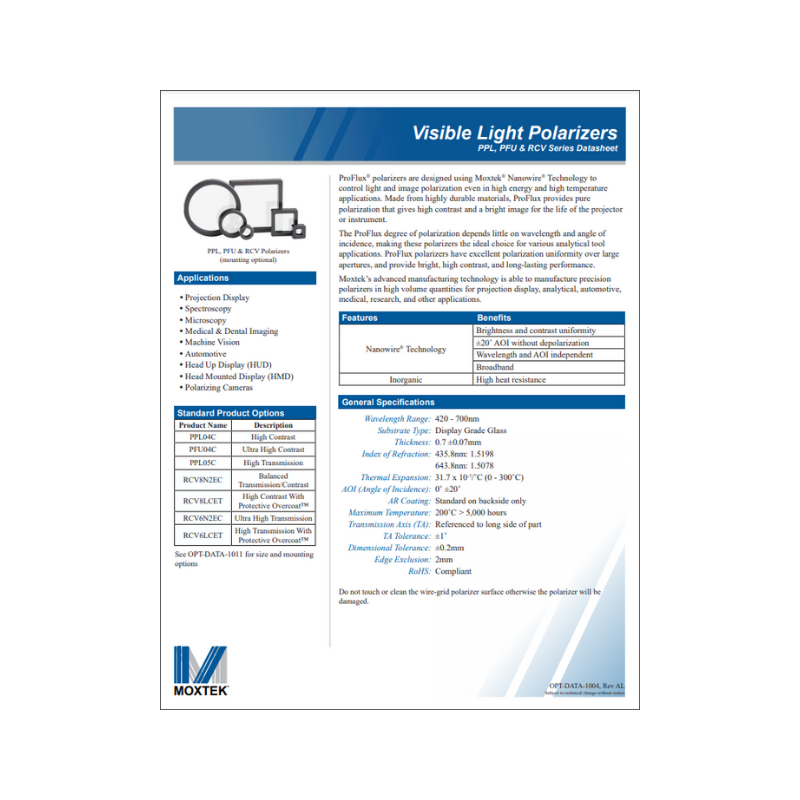

Visible Light Polarisers	PPL, PFU and RCV Series	420 – 700 nm	Display Grade Glass	0.7 ±0.07mm	200˚C > 5,000 hours	– Projection Display – Spectroscopy – Microscopy – Medical & Dental Imaging – Machine Vision – Automotive – Head Up Display (HUD) – Head Mounted Display (HMD) – Polarizing Cameras	OPT-DATA-1004-PPL-PFU-and-RCV-Series.pdf (moxtek.com)

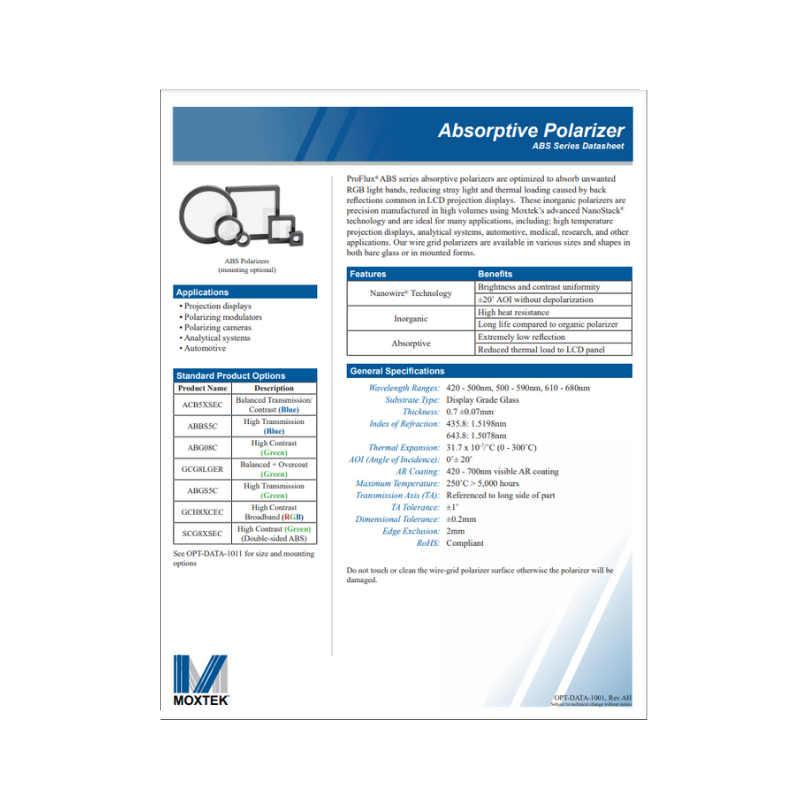

Absorptive Polarisers	ABS Series	420 – 500 nm, 500 – 590 nm, 610 – 680 nm	Display Grade Glass	0.7 ±0.07mm	250˚C > 5,000 hours	– Projection displays – Polarizing modulators – Polarizing cameras – Analytical systems – Automotive	OPT-DATA-1001-Absorptive-Polarizer.pdf (moxtek.com)

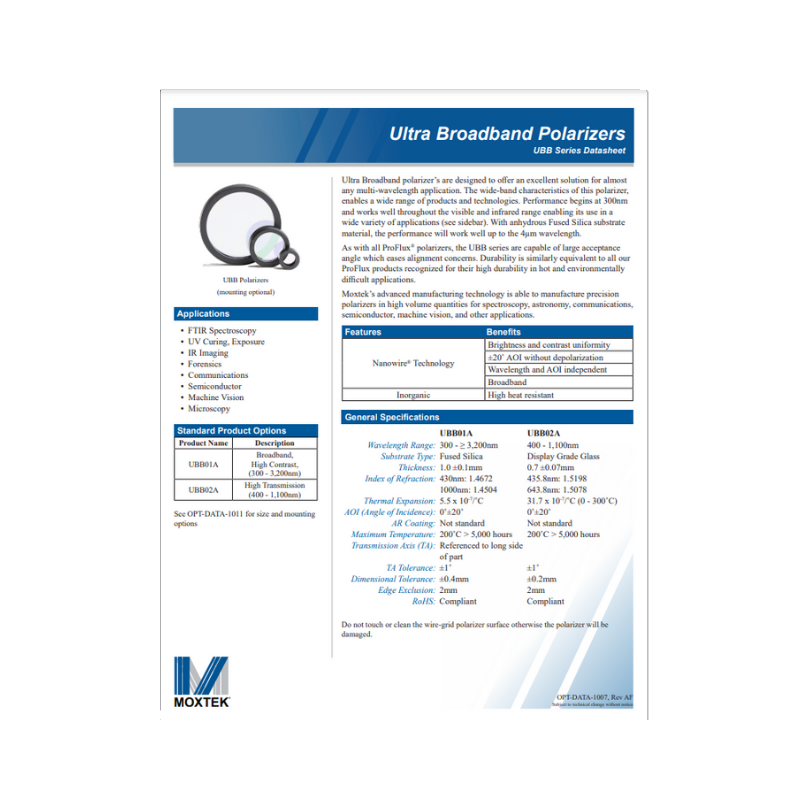

Ultra Broadband Polarisers	UBB Series	UBB01A – 300 – ≥ 3,200nm UBB02A – 400 – 1,100nm	UBB01A – Fused Silica UBB02A – Display Grade Glass	UBB01A – 300 – ≥ 3,200nm UBB02A – 400 – 1,100nm	UBB01A – 1.0 ±0.1mm UBB02A – 0.7 ±0.07mm	– FTIR Spectroscopy – UV Curing, Exposure – IR Imaging – Forensics – Communications – Semiconductor – Machine Vision – Microscopy	OPT-DATA-1007-Ultra-Broadband-Polarizers-UBB-Series.pdf (moxtek.com)
UV Polarisers	UV Series	240 – 400nm	Fused Silica (UV and IR stabilized)	UVT Types: 1.0 ±0.1mm UVD Types: 2.1 ±0.2mm	150°C Standard 250°C Coated	– UV Exposure, Curing – Photo-Alignment Processing – Security – Forensics – Photo-Alignment – Biomedical	OPT-DATA-1008-UV-Polarizers.pdf (moxtek.com)

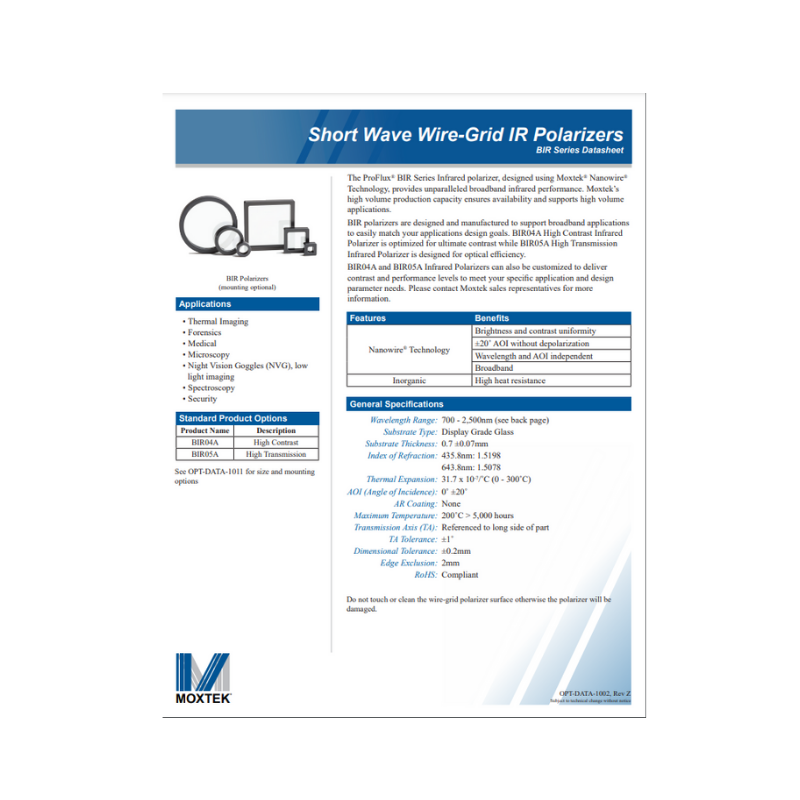

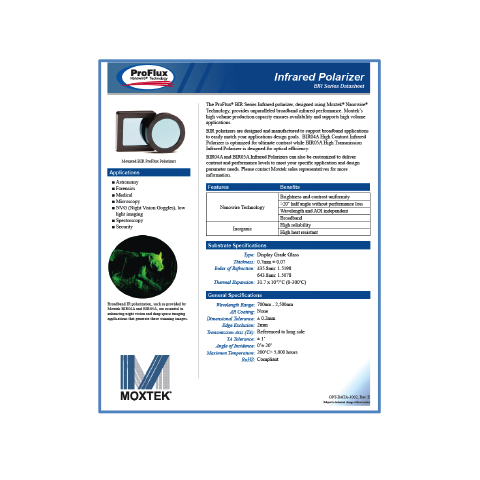

Short Wave Wire-Grid IR Polarizers	BIR Series	700 – 2,500nm	Display Grade Glass	0.7 ±0.07mm	200˚C > 5,000 hours	– Thermal Imaging – Forensics – Medical – Microscopy – Night Vision Goggles (NVG), low light imaging – Spectroscopy – Security	OPT-DATA-1002-Short-Wave-IR-Polarizers-BIR-Series.pdf (moxtek.com)

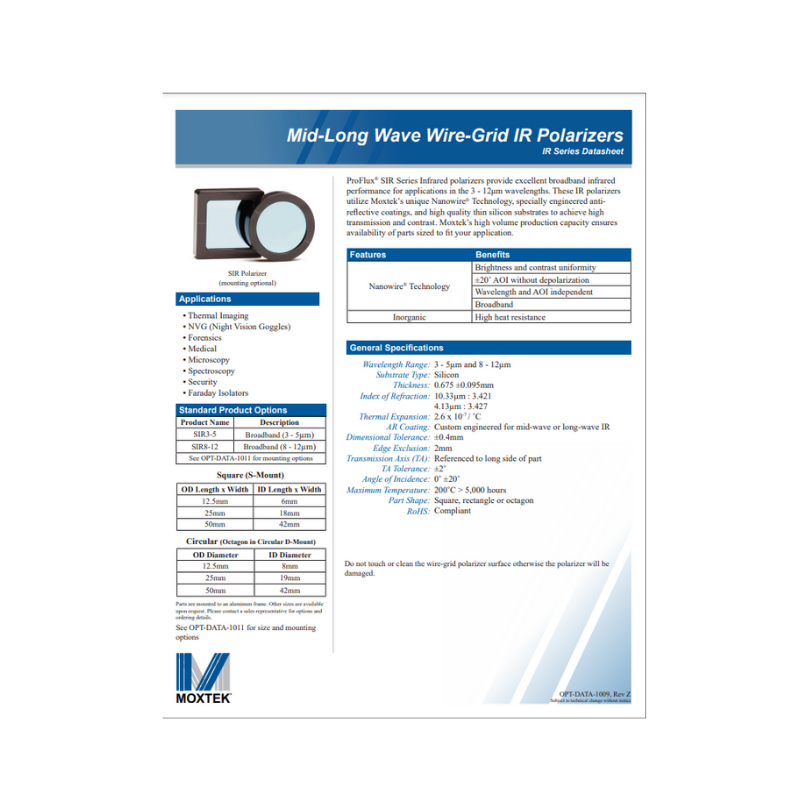

Mid-Long Wave Wire-Grid IR Polarizers	IR Series	3 – 5µm and 8 – 12µm	Silicon	0. 675 ±0.095 mm	200˚C > 5,000 hours	– Thermal Imaging – NVG (Night Vision Goggles) – Forensics – Medical – Microscopy – Spectroscopy – Security – Faraday Isolators	OPT-DATA-1009-Mid-Long-Wave-Wire-Grid-IR-Polarizer-SIR.pdf (moxtek.com)

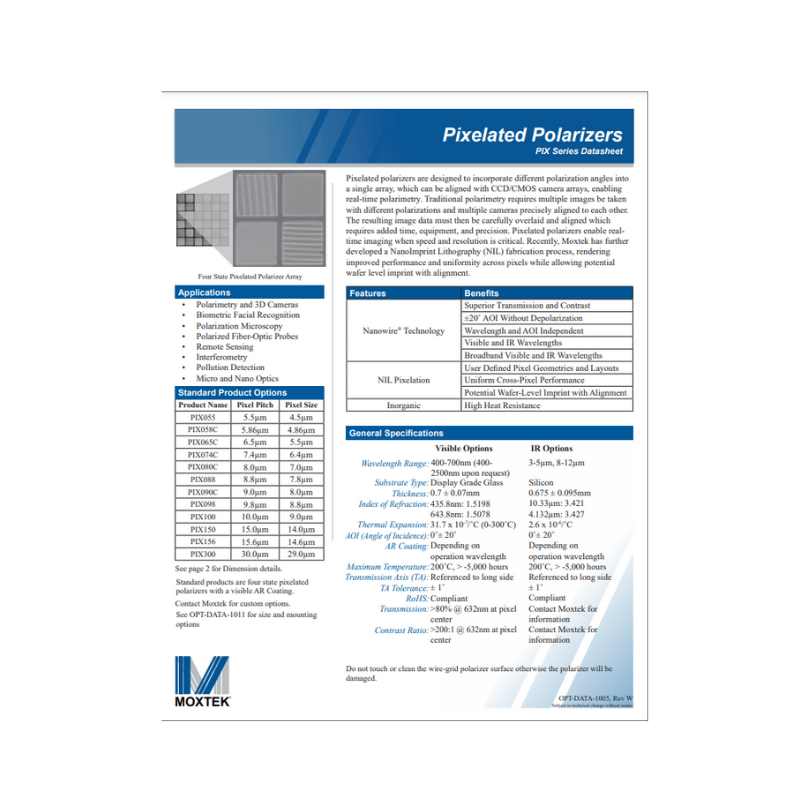

Pixelated Polarisers	Visible and IR Options	Visible Options 400-700nm (400- 2500nm upon request) IR Options 3-5µm, 8-12µm	Visible Options Display Grade Glass IR Options Silicon	Visible Options 0.7 ± 0.07mm IR Options 0.675 ± 0.095mm	Visible Options 200˚C > 5,000 hours IR Options 200˚C > 5,000 hours	– Polarimetry and 3D Cameras – Biometric Facial Recognition – Polarization Microscopy – Polarized Fiber-Optic Probes – Remote Sensing – Interferometry – Pollution Detection – Micro and Nano Optics	OPT-DATA-1005-Pixelated-Polarizers.pdf (moxtek.com)
