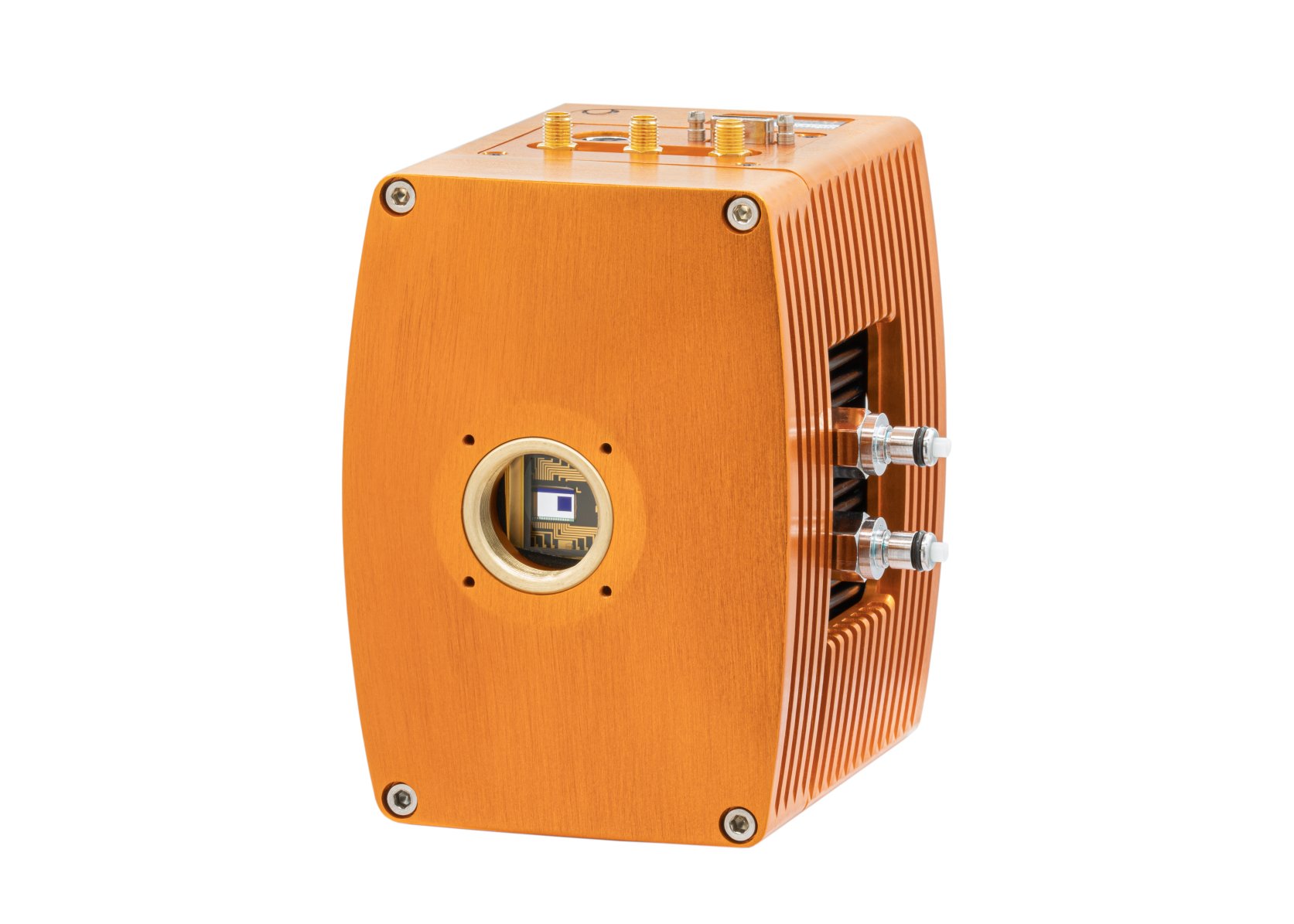

Raptor Kestrel EMCCD Camera

Digital Monochrome Scientific Frame Transfer EMCCD, 2000fps

The digital Kestrel EMCCD camera is based on e2v’s CCD-60 back-thinned 1/3″ sensor. It combines high sensitivity, speed and resolution. with QE up to 95%. It has strong response from UV through to NIR. With EM gain on it offers less than 0.01 electrons read noise. It uses a 16 bit A/D converter and offers a standard CameraLink output. At 2000fps in full resolution, it offers some of the fastest and most sensitive speeds available on the market.

Fastest EMCCD on the market

Ultra low noise readout with THE FASTEST speeds. The Kestrel 1000, offers ultra-low readout noise while running at 1,000 frames per second (fps) in full frame and up to 1,800 fps with ROI.

FEATURES

  • 2000 frames per second – Full resolution speed making it the fastest EMCCD on the market
  • 128 x 128 Back-thinned EMCCD sensor – Enables optimum image resolution in low light imaging applications
  • 16 bit CameraLink output – Realtime imaging for low latency photon to digital image
  • Up to 95% QE from back-illuminated sensor – Optimum Photon collection
  • Strong UV and NIR response and ultrawide bandwidth – From 180nm through to 1100nm
  • Deep cooled to -80°C – For minimal background events
