Moxtek Handheld X-Ray Sources
XRF and Handheld Applications
Moxtek Analogue X-ray Sources are used primarily for XRF applications. Our small, ultra light-weight designs make these especially useful in handheld applications. The geometry of the end window allows closer coupling of tube and detector; creating lower absorption loss and geometric loss. The result is high flux for faster, more accurate analysis. Close coupling is especially important for low z materials. We offer a wide selection of target materials for your specific application needs. For more information, please view our datasheet or contact one of our experts.
Whilst there are off-the-shelf X-ray sources available, with default windows and target materials, as shown in the below tables, all of these sources are also customisable upon request.
FEATURES
- Close coupling of source to detector
- High flux stability
- Low power consumption
- Can be customised
- Long life
- 40kV 4W or 50kV 10W
- Target materials: Ag, W, Au, Pd, Ta, Rh
- Wiring length from 2”-14”
Profile
Profile
Profile
Profile
Profile
Profile
Profile
SPECIFICATIONS
| Handheld Source | Beam Current | Focal Spot | Window | Available Targets | Application | Link to datasheet |
| 40kV Cable with MAGNUM® Reflection | 0 – 0.1 mA | ~300um | Be, 0.127mm thick | Cr, Cu, Mo, W | · Material Characterisation and Identification (XRF)
· X-ray Imaging |
TUB-DATA-1001-40kV-Cable-with-MAGNUM-Side-Window.pdf (moxtek.com) |

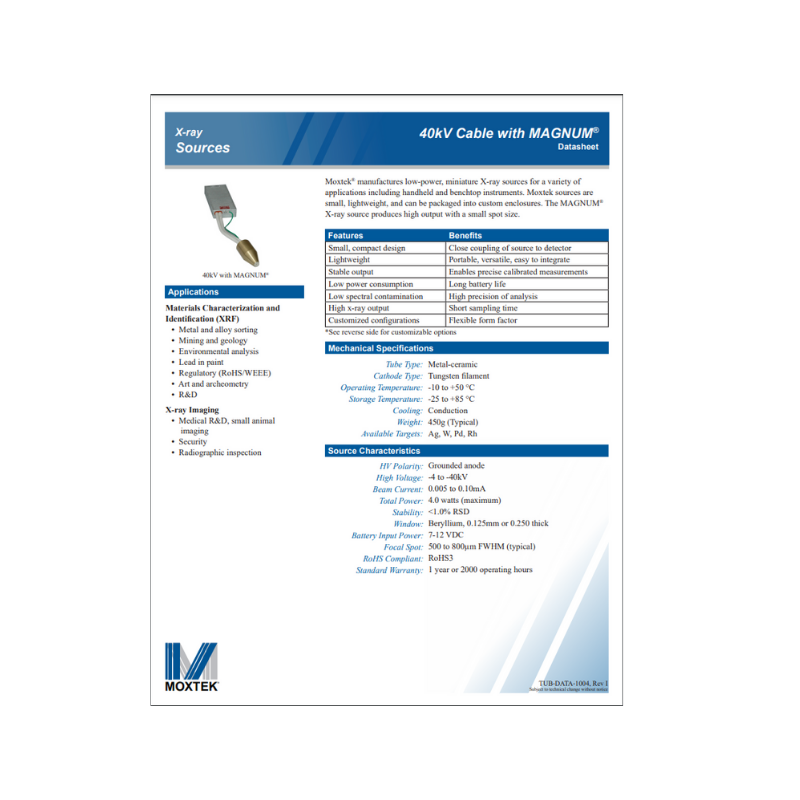

| 40kV Cable with MAGNUM® | 0.005 – 0.1 mA | 500 – 800 um FWHM | Be, 0.125 or 0.25 mm thick | Ag, W, Pd, Rh | · Material Characterisation and Identification (XRF)
· X-ray Imaging |
TUB-DATA-1004-40kV-Cable-with-MAGNUM.pdf (moxtek.com) |
| 50kV MAGNUM® | 5 – 200 uA | 500 – 800 um FWHM | Be, 0.125 or 0.25mm thick | Ag, W, Rh | · Material Characterisation and Identification (XRF)
· X-ray Imaging |
TUB-DATA-1002-50kV-MAGNUM-X-ray-Source.pdf (moxtek.com) |

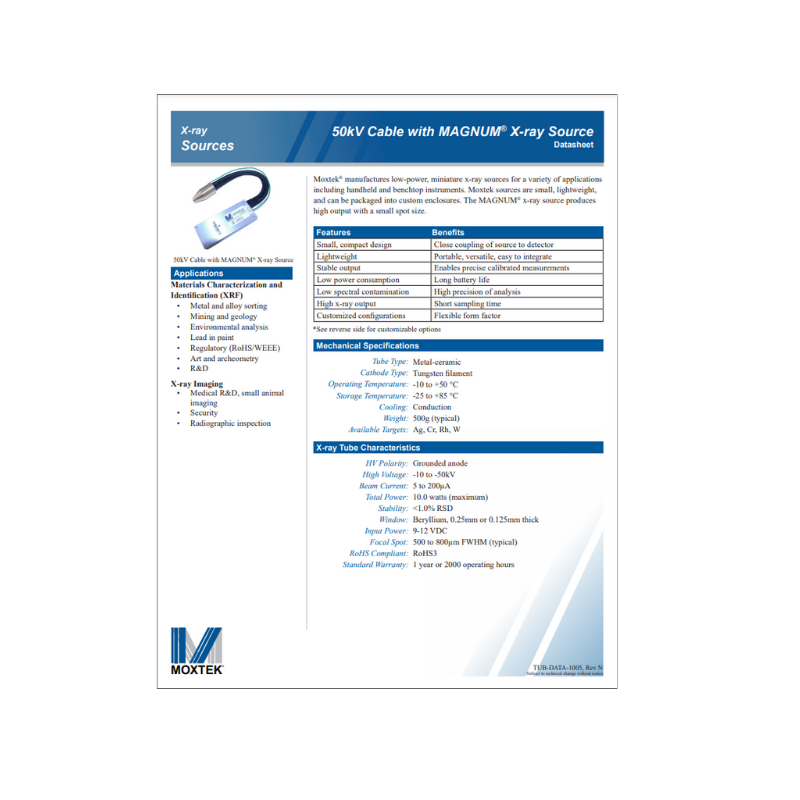

| 50kV Cable with MAGNUM® | 5 – 200 uA | 500 – 800 um FWHM | Be, 0.125 or 0.25mm thick | Ag, Cr, Rh, W | · Material Characterisation and Identification (XRF)
· X-ray Imaging |
TUB-DATA-1005-50kV-Cable-with-MAGNUM-X-ray-Source.pdf (moxtek.com) |

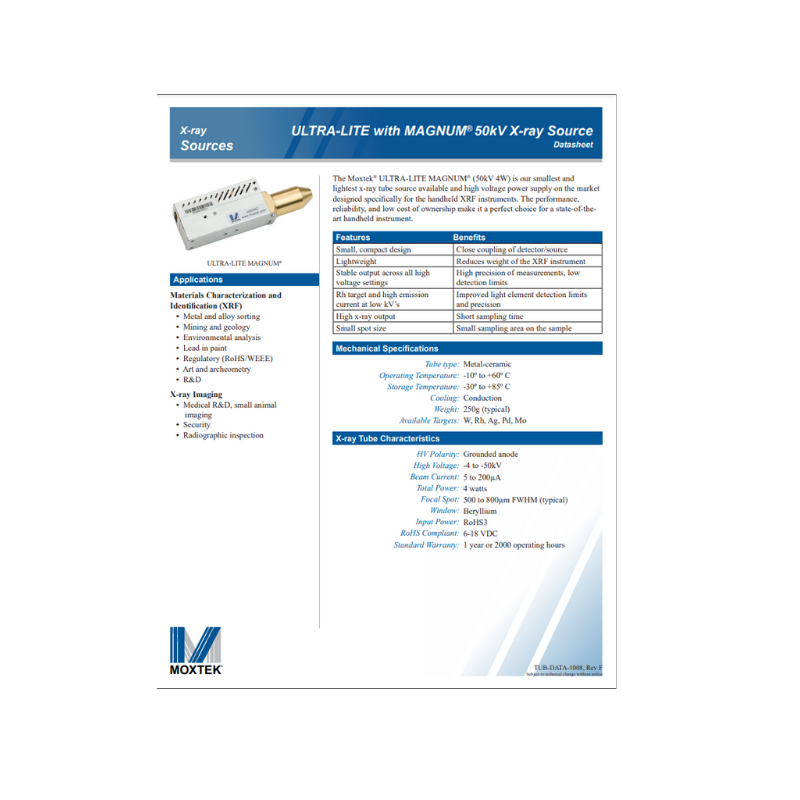

| ULTRA-LITE with MAGNUM® 50kV | 5 – 200 uA | 500 – 800 um FWHM | Be | W, Rh, Ag, Pd, Mo | · Material Characterisation and Identification (XRF)
· X-ray Imaging |
TUB-DATA-1008-50kV-ULTRA-LITE-with-MAGNUM-X-ray-Source.pdf (moxtek.com) |
VIDEOS
Downloads
APPLICATIONS
MAGPRO Series
• Elemental composition • Powder diffraction • Residual stress • Medical R&D, small animal imaging • Security • Radiographic inspection
HPC Series
• High power XRF: 150 is for Light Elements and 350 is for heavy elements • Scrap metal sorting XRF • Thickness gaging • Portable medical imaging • Food inspection • NDT
