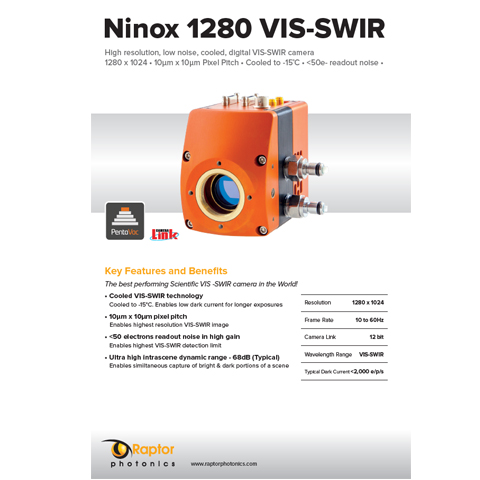

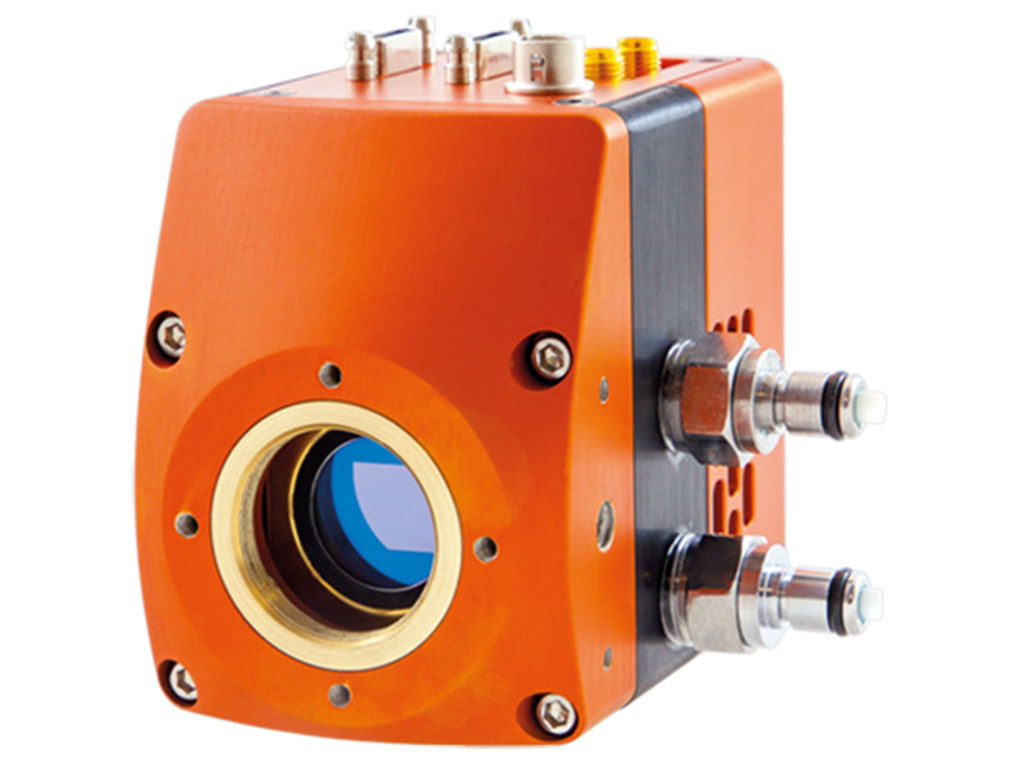

Raptor Ninox 1280 VIS-SWIR Camera

High resolution, low noise, cooled, digital VIS-SWIR InGaAs camera

Using a 1280 x 1024 InGaAs sensor, the Ninox 1280 offers visible extension from 0.4µm to 1.7µm to enable high sensitivity scientific imaging. With cooling to -15°C, the camera achieves typical dark current readings of <2,000e/p/s at this temperature, allowing for longer exposure times. This is one of the lowest dark current readings on the market for a HD resolution SWIR camera. The 10µm x 10µm pixel pitch enables the highest resolution imaging. The camera will offer ultra-high intrascene dynamic range of 69dB enabling simultaneous capture of bright & dark portions of a scene.

Available with a 12-bit Camera Link output, the Ninox 1280 will run from 10Hz up to 60Hz. The camera will feature on-board Automated Gain Control (AGC) which will enable the best contrast imaging from low to bright light as well as an on-board intelligent 3 point Non-Uniform Correction (NUC) algorithm, providing the highest quality images. As with all Raptor cameras, the Ninox 1280 is compact and rugged.

FEATURES:

  • Cooled HD VIS-SWIR technology
  • Cooled VIS-SWIR technology – Cooled to -15°C. Enables low dark current for longer exposures
  • HD Format (1280 x 1024) – The best resolution available in VIS-SWIR
  • 10μm x 10μm pixel pitch – Enables the highest resolution VIS-SWIR image
  • <40 electrons readout noise – Enables the highest VIS-SWIR detection limit
  • Air and water cooled to -15°C – Enables low dark current for longer exposures
  • Ultra high intrascene dynamic range – 68dB – Enables simultaneous capture of bright & dark portions of a scene
  • On-board intelligent 3 point NUC – Enables highest quality images
