Moxtek Polarising Beamsplitters

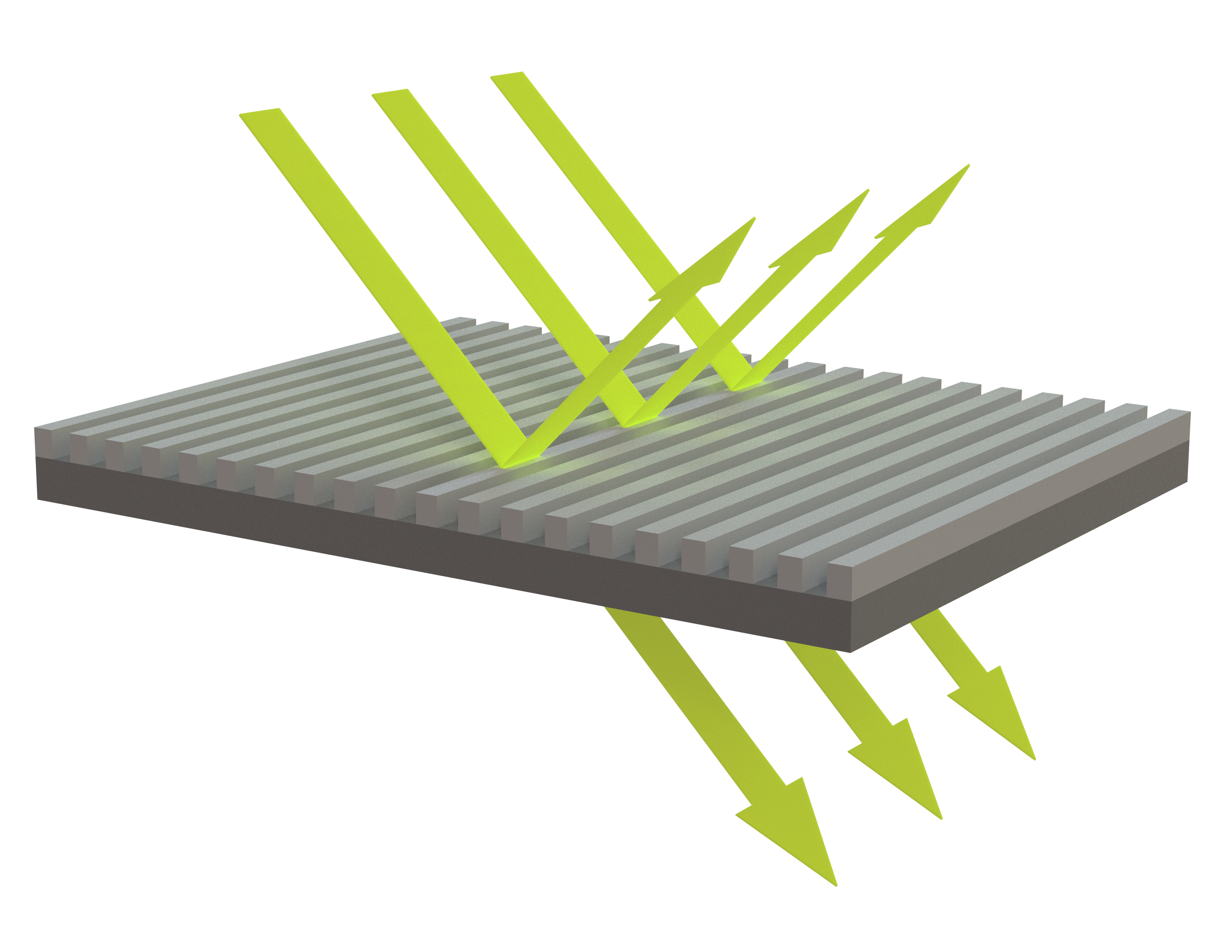

ProFlux® beamsplitter Nanowire® Technology is optimised to operate at 45°, providing durable polarising beamsplitters. These beamsplitters can be used for a variety of both imaging and non-imaging applications for display products and scientific instruments. The ProFlux polarising beamsplitter’s wide angular aperture, excellent performance and exceptional reliability offer an excellent design choice.
Whilst there are off-the-shelf beamsplitters available, custom designs are also available upon request.
FEATURES
- Brightness and contrast uniformity
- Excellent for optical designs with f/# < f/2.0
- Wavelength and AOI independent
- High temperature durability
- High heat resistance
- Improved Wavefront Error for better channel alignment
CONFIGURABLE PARAMETERS
- Transmission levels
- Contrast levels
- Size
- Transmission axis
- Visual criteria
- Shape
Profile
Profile
Profile
Profile
Profile
Profile
Profile
MODELS
ProFlux® wire-grid Polarising Beamsplitters (PBS) are optimised for 45° and can be used for imaging and non-imaging applications for display products and scientific instruments.
Made with highly durable materials, Moxtek’s PBS products have high performance and durability providing bright images for the life of a projector. ProFlux® beamsplitters align with liquid crystal displays to provide uniformity even over large apertures making it an excellent design choice.
- Brightness and contrast uniformity
- Excellent for fast systems with f/# < 2
- Wavelength and AOI independent
- High reliability
- High heat resistance
- Transmisson levels
- Contrast levels
- Size
- Transmission axis
- Visual criteria
- Shape
VIDEOS

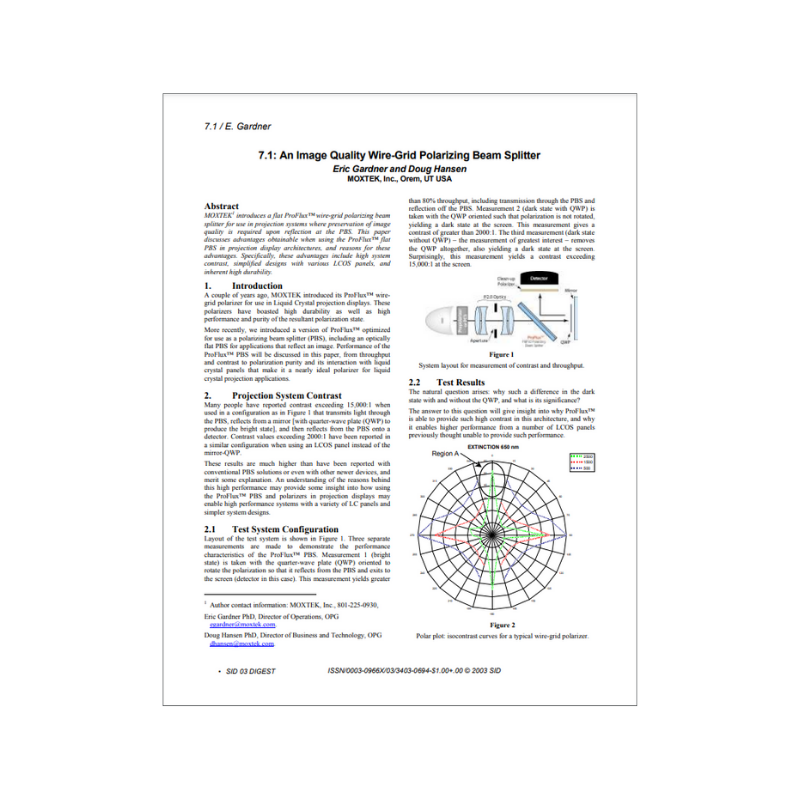

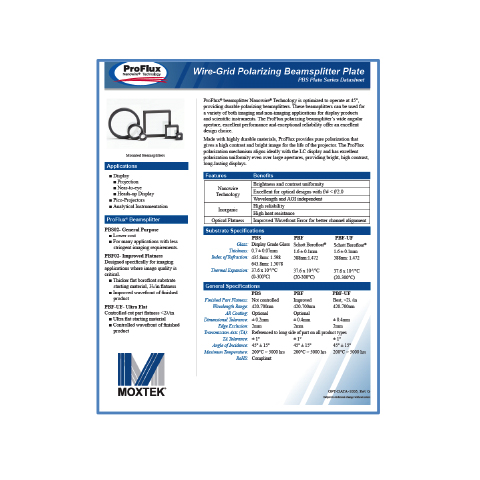

Downloads
Supplier Info
APPLICATIONS
Head Mounted Display
Head Up Display
Interferometry
Dental Imaging
