Model 8600 Series VSM

Vibrating sample magnetometer

Advanced measurement performance

The 8600 Series vibrating sample magnetometer raises the bar for magnetometer performance and convenience. These VSMs combine high sensitivity (15 nemu), rapid measurement speed (10 ms/pt), and simple operation for more accurate measurements, faster.

Convenient operation

The entire 8600 Series system has been reimagined with a focus on clean, ergonomic design that simplifies the researcher’s interaction with the system. A motorised head brings the sample to a comfortable height for easy, one-handed exchange of the QuickLIGN™ sample rods. Temperature options include a cryostat, high-temperature oven, and single stage variable temperature insert. The combined temperature range of the options is 4.2 K to 1273 K. All three GlideLOCK™ options quickly slide into place and are auto-detected, with the software automatically displaying controls for the specific option. The magnet poles are also easily adjusted with the ExactGAP™ indexed positioning system that allows the pole gap to be set at one of six repeatable positions, eliminating the need to recalibrate after each change.

Let us test your sample! Contact us on 01372 378822 for more details.

MODEL 8600 FEATURES

  • 0.15 × 10-7 emu noise floor at 10 s/pt
  • 10 ms/pt data acquisition rate
  • 10,000 Oe/s field ramp rate
  • Rapid, repeatable temperature option exchange
  • High stability—±0.05% per day
  • Fields to 3.26 T
  • Widest available temperature range—4.2 K to 1273 K



DR. SHAYZ IKRAM

TECHNICAL DIRECTOR
+44 (0)1372 378822
shayz@qd-uki.co.uk

Dr. Alex Murphy

TECHNICAL SALES ENGINEER
+44 (0)1372 378822
alex@qd-uki.co.uk

Videos

Downloads

Supplier Info

For even more information, why not visit our suppliers website.

Visit website

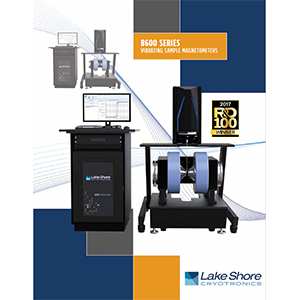

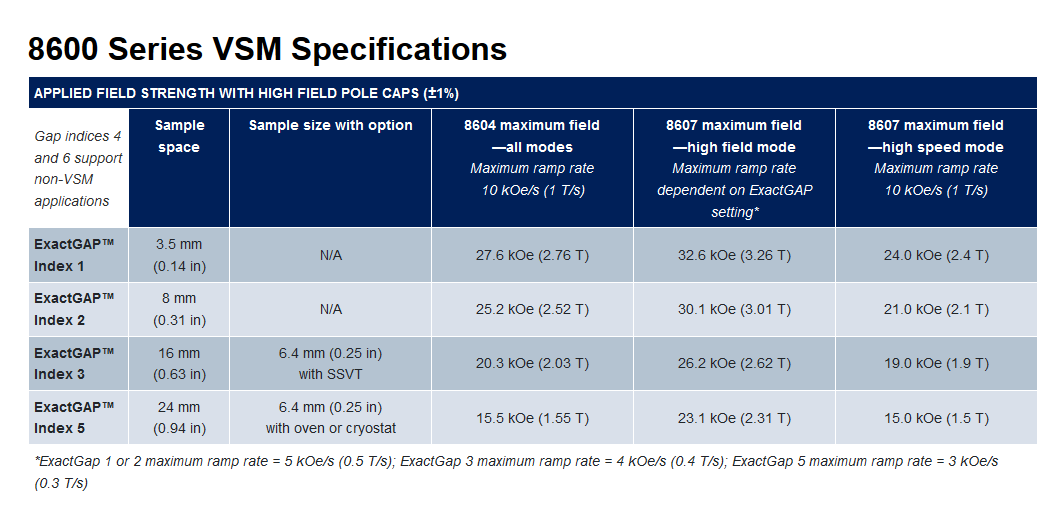

8600 VSM Specifications
