Model CRX-EM-HF Cryogenic Probe Station

The Lake Shore CRX-EM-HF probe station is a cryogen-free closed cycle refrigerant probe station with a ±0.6 T horizontal, in-plane electromagnet. All standard C-V, I-V, microwave, and electro-optical probing, plus in-plane horizontal field electromagnetic measurements can be performed on this versatile probe station. Researchers can use the CRX-EM-HF for testing magneto-transport parameters. It is Lake Shore’s premier cryogen-free probe station for vector-dependent magneto-transport measurements. To maximise magnetic field at the sample, the CRX-EM-HF has its probes configured at 30° angles for probing wafers up to 25 mm (1 in) in diameter.

Using a self-contained closed cycle refrigerator (CCR), the CRX-EM-HF cools down to cryogenic temperatures unassisted, eliminating the need for monitoring by the researcher. A 360° sample stage rotation option allows measurement of angular-dependent and anisotropic magneto-transport properties.

Sample holders
Probing configurations
Vision system

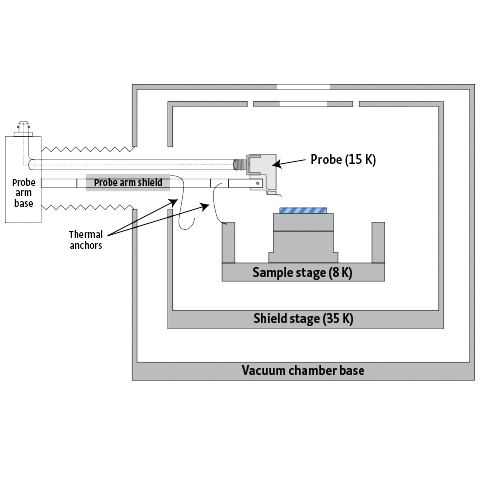

Sample temperature accuracy is key

Features of the Model CRX-EM-HF Cryogen-free Horizontal Field Electromagnet Probe Station

  • Cryogen-free operation
  • Allows unsupervised cool down
  • Standard probing plus in-plane horizontal field electromagnetic measurements
  • Generate full field without cooldown
  • Probes configured at 30° angles to accommodate electromagnet
  • Optional 360° rotation





DR. SHAYZ IKRAM

TECHNICAL DIRECTOR
+44 (0)1372 378822
shayz@qd-uki.co.uk

JOSH HOOK

SALES/SERVICE SUPPORT ENGINEER
+44 (0)1372 378822
josh@qd-uki.co.uk

Downloads

Supplier Info

For even more information, why not visit our suppliers website.

Visit website

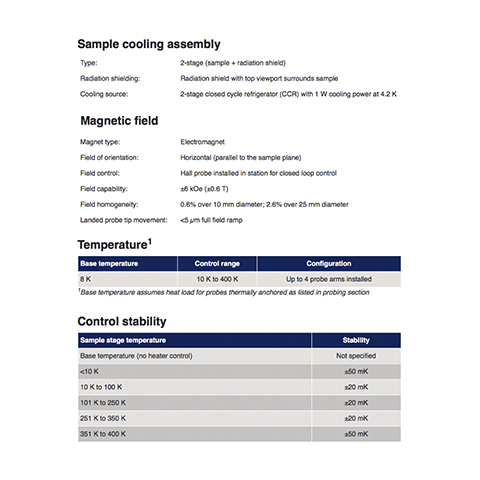

CRX-EM-HF Specifications
