Electromagnet systems (MCS-EMP)

MCS Modular Characterisation System
EMP Electromagnet platform

The multi-purpose MCS-EMP electromagnet platform provides all of the essential components required for automated, variable field experiments. Each MCS-EMP builds on a 4-inch or 7-inch electromagnet with pole caps, magnet base, and pedestal. Magnets feature ExactGAP™ precision-settable sample gaps. 2-inch pole caps are standard on the 4-inch MCS‑EMP, and convertible 4-inch/2-inch caps are standard on the 7-inch MCS-EMP. Optical access is optional.

More about the MCS-EMP
MeasureLink™ – MCS software
Electronic measurement modules
Electronic sample options
Electronic temperature options

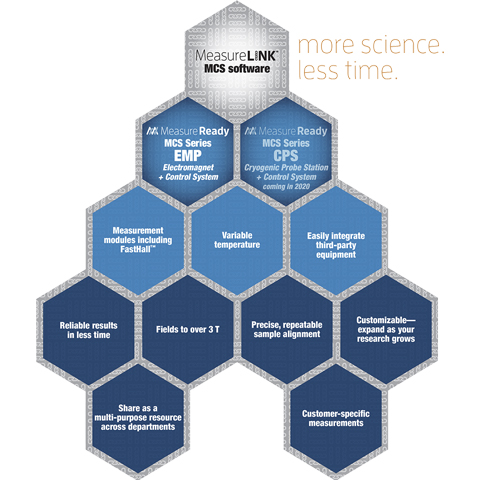

MCS Series Modular Characterisation Systems

Research platforms that quickly adapt to a wide range of material characterisation applications, now and into the future.

Included with each MCS-EMP:

  • 4 in or 7 in electromagnet
  • Electromagnet system controller (ESC):
  • High-reliability linear magnet power supply (643 or 648)
  • F71 multi-axis teslameter and single-axis field-monitoring probe
  • PC with installed MeasureLINK-MCS control software
  • Equipment console
  • MCS-EMP choices:
    • GlideLOCK option mount only
    • Variable temperature control with GlideLOCK mount
    • Optical bore

Key features

  • Variable magnetic fields to over 3 T
  • Low-noise 4-quadrant power supply
  • Integrated teslameter for closed loop field control
  • MeasureLINK™-MCS control software license and script library

Measurement options

  • Fully-integrated measurement modules, e.g., Hall effect
  • Measurement instrumentation
  • Variable temperature
  • Sample holders

Typical applications

  • Electronic/electro-transport measurements
  • Magnetic/magneto-transport measurements
  • Specialised, customer-built measurements



DR. SHAYZ IKRAM

TECHNICAL DIRECTOR
+44 (0)1372 378822
shayz@qd-uki.co.uk

Dr. Alex Murphy

TECHNICAL SALES ENGINEER
+44 (0)1372 378822
alex@qd-uki.co.uk

Downloads

Supplier Info

For even more information, why not visit our suppliers website.

Visit website

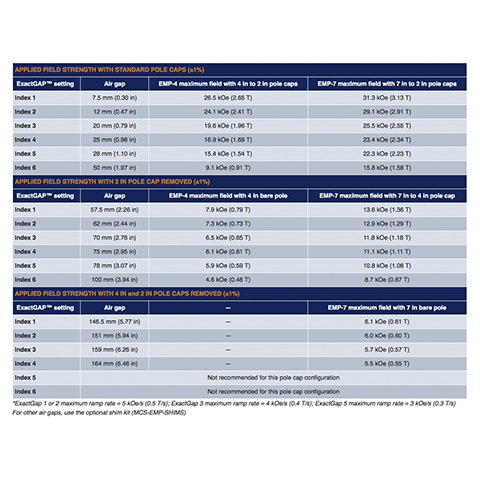

MCS-EMP Specifications
