Raptor Eagle Scientific CCD

-90°C 1MP and 4MP Scientific CCDs

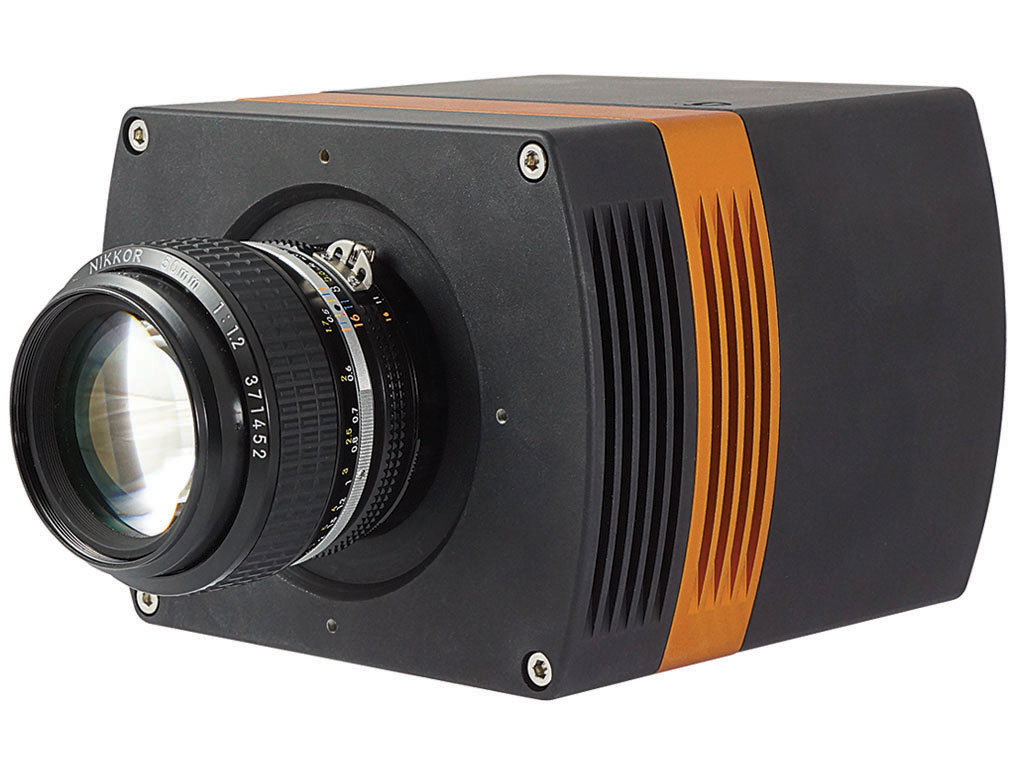

The Raptor Photonics Eagle is one of the most sensitive CCD camera platforms in the world. Using a choice of back-illuminated CCD sensor from e2v (CCD42-40 and CCD47-10), and putting into Raptor’s proprietary PentaVac vacuum enclosure and cooling it to -90°C, the Eagle is the perfect camera for long exposures. Offering low read noise of <2.3e- unbinned and binning options up to 64×64, the Eagle also offers dual read-out rates of 75kHz and 2MHz.

The BEST CCD on the market today !

FEATURES

  • 5 year vacuum guarantee – Protection and integrity of the sensor
  • Extremely low dark current – Deep cooled to greater than -110°C delta enables long exposure times
  • Back illuminated 1MP and 4MP sensors from e2v – Enables large field of view imaging
  • 13.5µm x 13.5µm pixels (4MP) – Enables ultra sharp image resolution
  • High QE: >90% @ 525nm and 50% @ 380nm & 720nm – Optimum photon collection



Profile
David Want Quantum Design UK and Ireland
Name

DAVID WANT

Job Title

Product Specialist

Phone
Email
Profile
Name

TECHNICAL SALES TEAM

Job Title

Support Team

Phone
Email
Profile
Name

ASHLEY CRANE

Job Title

Sales Manager

Phone
Email
Profile
Dr Jordan Thompson Quantum Design UK and Ireland
Name

JORDAN THOMPSON

Job Title

Service Engineer

Phone
Email
Profile
Quantum Design UK and Ireland Dr Shayz Ikram
Name

DR SHAYZ IKRAM

Job Title

Product Specialist

Phone
Email
Profile
Name

JOSH HOOK

Job Title

Sales/Service Support Engineer

Phone
Email
Profile

Name

LUKE NICHOLLS

Job Title

Technical Sales Engineer

Phone

+44 (0)1372 378822

Email

luke@qd-uki.co.uk

MODELS

Open Front High Energy CCDs with a range of custom options

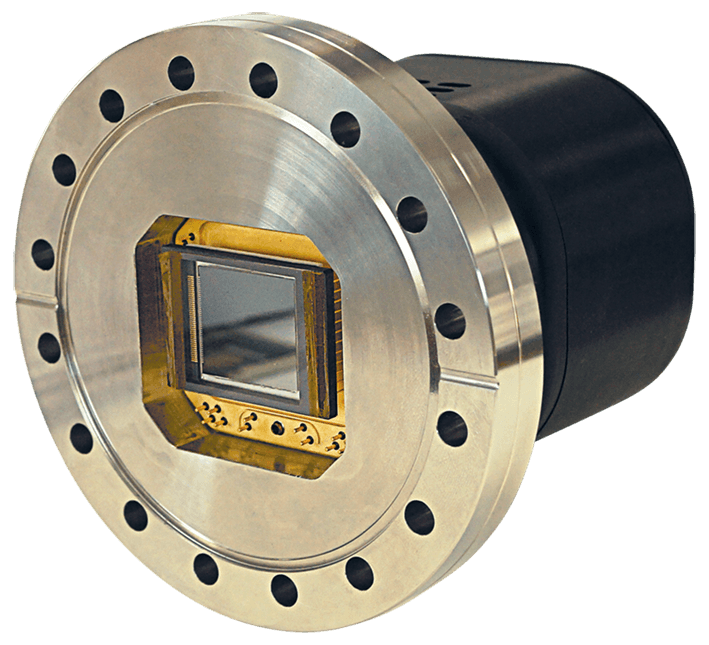

Introducing a high energy direct X-Ray Open Front version for one of the most sensitive CCD cameras in the World. The Eagle XO is available in a range of options including sensor resolution, sensor type, cooling and flange options. This freedom of choice offers cameras to meet your exact needs.

The EAGLE XO camera features:

  • Open front end – CF152 (6”) flange for direct interfacing to vacuum chambers
  • Deep cooled using Thermoelectric cooler (TEC) – Minimise dark current and enable long exposure
  • Choice of resolutions and pixel sizes – Optimises sensitivity and large field of view imaging
  • Choice of sensor types – Enables ultra sharp image resolution and high dynamic range
