Model 480 Fluxmeter

An advanced tool designed primarily for use in industrial and measurement systems settings, the Model 480 fluxmeter measures total flux from which B, flux density, and/or H, magnetic field strength, can be determined. The Model 480 is valuable for magnetising, manual and automated magnet testing and sorting, and as the main component in BH loop or hysteresis measurement system applications. The Model 480 fluxmeter is compatible with most sensing coils and fixtures.

  • Manual magnet testing
  • Automated magnet testing
  • Magnetising
  • Materials analysis
  • AC magnetic fields
  • Drift adjustment
  • Model 480 rear panel
  • Display

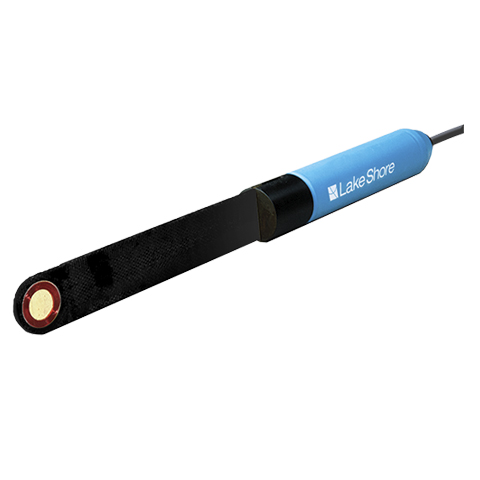

  • Helmholtz and search coils

Model 480 Features

  • 5¾ digit DC resolution (1 part out of ±300,000)
  • Automatic drift compensation
  • Very fast peak capture
  • AC frequency response to 50 kHz
  • IEEE-488 and serial interfaces
  • Storage of parameters for up to 10 existing coils



DR. SHAYZ IKRAM

TECHNICAL DIRECTOR
+44 (0)1372 378822
shayz@qd-uki.co.uk

JOSH HOOK

SALES/SERVICE SUPPORT ENGINEER
+44 (0)1372 378822
josh@qd-uki.co.uk

Downloads

Supplier Info

For even more information, why not visit our suppliers website.

Visit website

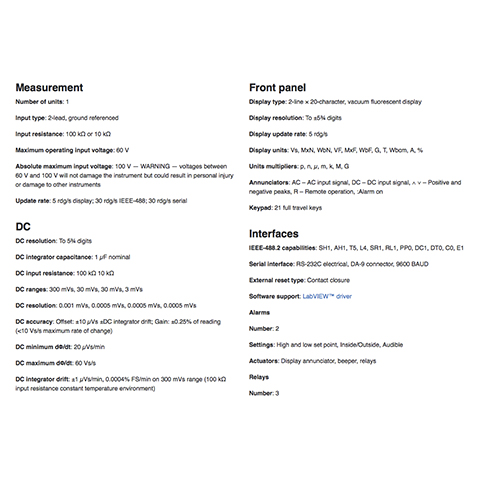

Model 480 Fluxmeter Specifications
