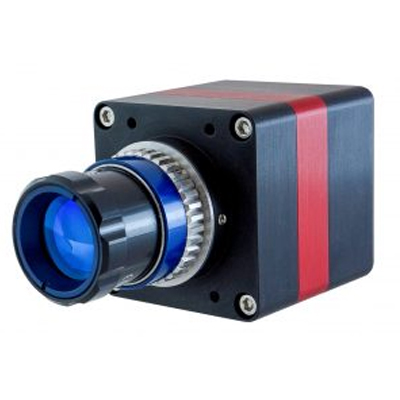

Raptor OWL 640 N VIS-SWIR Camera

Ultra Low Readout Noise (<18e-) Digital VIS-SWIR Camera


Using next-generation technology, Raptor has launched one of the lowest noise VIS-SWIR cameras on the market, perfect for imaging in low light conditions. Using a 640 x 512 InGaAs sensor, and the sensor stabilised to 15°C, the Owl 640 N offers a visible response from 0.4µm to 1.7µm to enable a high sensitivity. The camera also offers the lowest readout noise on the market with a typical value of 18 electrons. The camera has a high intra-scene dynamic range of typically 73dB, enabling simultaneous capture of bright and dark portions of a scene.

Available with a 14 bit base Camera Link output, the Owl 640 N will run at frame rates up to 120Hz. The camera features an on-board Automated Gain Control (AGC) which enables the best contrast imaging from low to bright light as well as an on-board intelligent 3 point Non-Uniform Correction (NUC), providing the highest quality images.

The best performing VIS-SWIR camera in the World! As with all Raptor cameras, the Owl 640 N is compact and rugged.

FEATURES



  • Ultra low noise sensor – Enables ultimate night vision VIS-SWIR image
  • VIS-SWIR technology – Compatible with VIS-SWIR illuminators, markers & pointers
  • 15µm x 15µm pixel pitch – Enables highest resolution VIS-SWIR image
  • On-board Automated Gain Control (AGC) – Enables clear video in all light conditions
  • Ultra compact, Low power – Ideal for hand-held, mobile or airborne systems
Profile
David Want Quantum Design UK and Ireland
Name

DAVID WANT

Job Title

Product Specialist

Phone
Email
Profile
Name

TECHNICAL SALES TEAM

Job Title

Support Team

Phone
Email
Profile
Name

ASHLEY CRANE

Job Title

Sales Manager

Phone
Email
Profile
Dr Jordan Thompson Quantum Design UK and Ireland
Name

JORDAN THOMPSON

Job Title

Service Engineer

Phone
Email
Profile
Quantum Design UK and Ireland Dr Shayz Ikram
Name

DR SHAYZ IKRAM

Job Title

Product Specialist

Phone
Email
Profile
Name

JOSH HOOK

Job Title

Sales/Service Support Engineer

Phone
Email
Profile

Name

LUKE NICHOLLS

Job Title

Technical Sales Engineer

Phone

+44 (0)1372 378822

Email

luke@qd-uki.co.uk

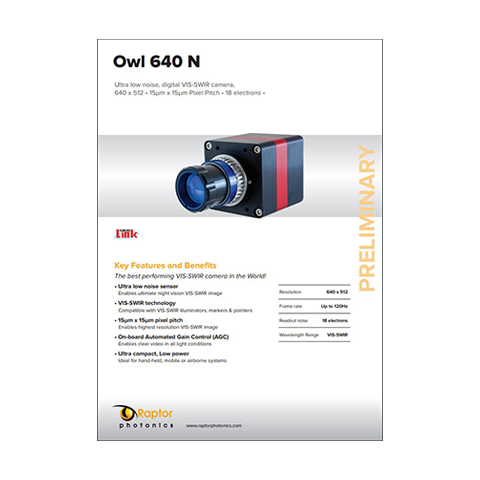

Downloads
