Upgrade your cryostat with a 1.2 Kelvin capability

This is now possible with the OneK-Optic option for existing CryoAdvance 100 and Gen3 Cryostation s100 systems in the field.

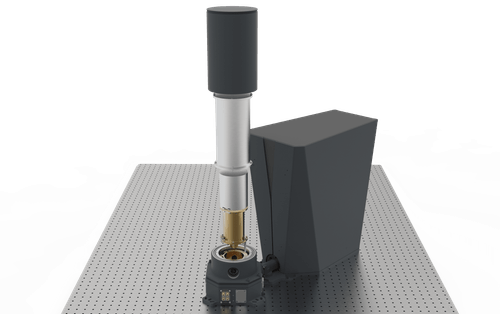

The new plug and play add-on module for sub 2K temperatures in your Montana Instruments cryostat has just been released. The OneK-Optic is compatible with most 100 mm diameter sample space systems. It includes a vacuum housing with 2 side windows and can be configured with various options like configurable side panels for DC and RF feedthroughs, low working distance option and exchangeable windows.

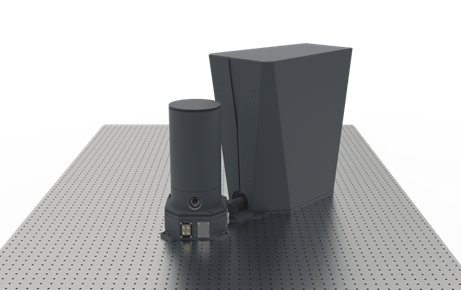

The module can be removed and replaced with standard vacuum housing when not in use or when switching configurations.

• 1.2 Kelvin at your fingertips
  • Plug and play add-on module to reach our coldest temperatures yet
• 1.2 Kelvin base temperature
  • The OneK-Optic^TM is a closed cycle module that provides more than 8 hours of cooling at 1.2K prior to the automated recycle of the system.
• Add-On and Upgrade
  • Easily add to existing CryoAdvance® 100 systems.
• Single Shot with Automated Recycle
  • Greater than 8 hours at 1.2K with 200 µW cooling capacity. System will automatically recycle and be ready for test in <3 hours.
• Fully Integrated with Galaxy Software Control
  • Intuitive and easy to use, 1.2K research is a button push away.
• Sample Access
  • Optical, DC, and RF access direct to the 1.2K sample space.

OneK-Optic

FEATURES

• 100mm Footprint – Same form factor and width as standard 100mm system.
• Add Ons – Low Working Distance option and exchangeable windows.
• Optical+ DC + RF – 2 side windows with multiple feedthrough options for RF and DC electrical access to the sample.
• Touchscreen User Interface – Displays real-time temperature status and temperature stability.

---

---
