FusionScope® from QD Microscopy

Easy to use Correlative AFM with SEM Microscopy Platform

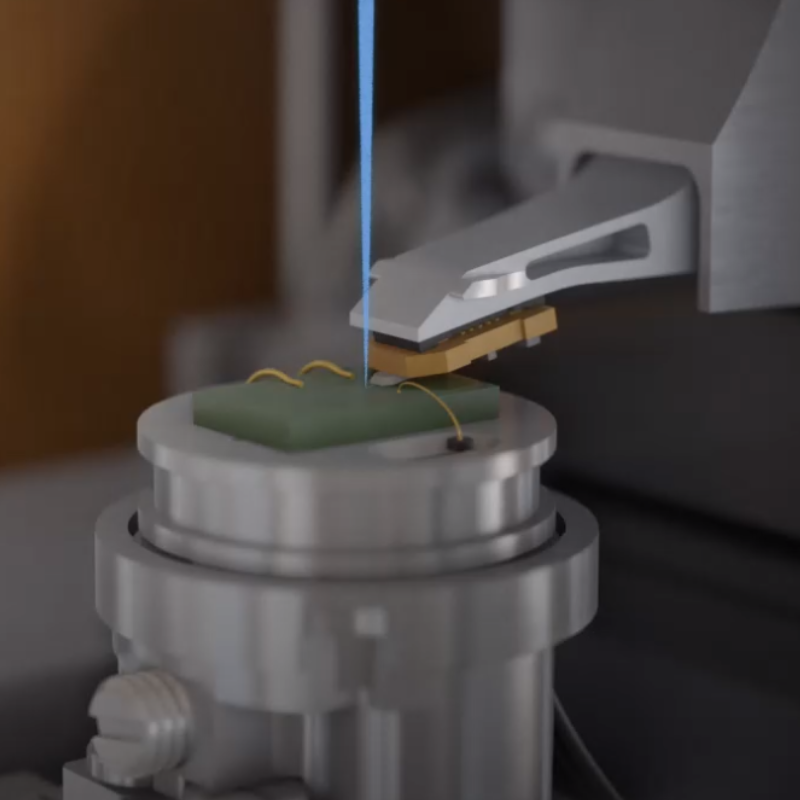

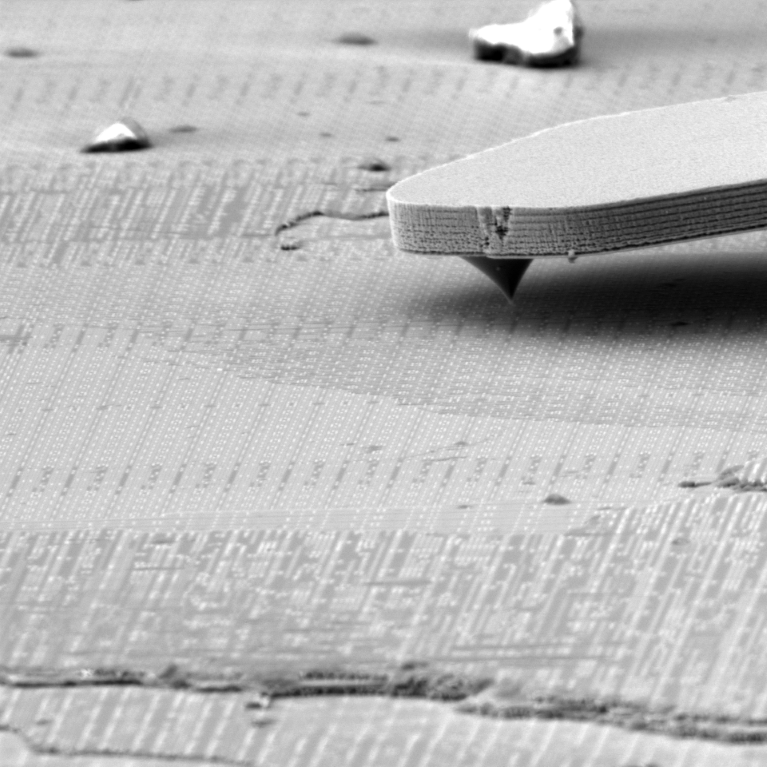

The FusionScope® is an advanced platform for Electron Microscopy that uniquely integrates Scanning Electron Microscopy (SEM) with a full suite of Standard AFM techniques, delivering powerful correlative analysis within a single, easy-to-use system. By combining the high-resolution imaging capabilities of electron microscopy with the nanoscale measurement precision of atomic force microscopy, the FusionScope enables researchers to seamlessly acquire complementary structural, mechanical, electrical, and magnetic data from the exact same region of interest in real time.

At the core of the system is a fully functional Standard AFM operating in multiple modes, including contact (static), dynamic (tapping), and advanced FIRE mode, allowing precise topographical mapping across a wide range of materials. These capabilities are enhanced by integrated Scanning Electron Microscopy, providing surface-sensitive imaging with nanometre-scale resolution, fast acquisition speeds, and excellent signal-to-noise performance for detailed surface analysis.

Beyond conventional imaging, the FusionScope supports a range of specialised techniques, including Conductive-AFM, which enables simultaneous topography and electrical characterisation through current mapping and IV measurements. This is particularly valuable for semiconductor research, nanodevice development, and failure analysis. In addition, Magnetic Force Microscopy allows users to investigate magnetic domains and long-range magnetic interactions, making the system ideal for advanced materials science and data storage applications.

By integrating Electron Microscopy, Scanning Electron Microscopy, Standard AFM, Conductive-AFM, and Magnetic Force Microscopy into a single correlative workflow, the FusionScope provides a highly versatile solution for nanostructure characterisation, quality control, and multi-modal materials analysis across research and industry.

FEATURES

  • Material Characterisation
  • Quality Control
  • Failure Analysis
  • Nanostructures
Profile
David Want Quantum Design UK and Ireland
Name

DAVID WANT

Job Title

Product Specialist

Phone

+44 (0)1372 378822

Email

david@qd-uki.co.uk

Profile
Name

TECHNICAL SALES TEAM

Job Title

Support Team

Phone

+44 (0)1372 378822

Email

info@qd-uki.co.uk

Profile
Name

ASHLEY CRANE

Job Title

Sales Manager

Phone

+44 (0)1372 378822

Email

ashley@qd-uki.co.uk

Profile
Dr Jordan Thompson Quantum Design UK and Ireland
Name

JORDAN THOMPSON

Job Title

Service Engineer

Phone

+44 (0)1372 378822

Email

service@qd-uki.co.uk

Profile
Quantum Design UK and Ireland Dr Shayz Ikram
Name

DR SHAYZ IKRAM

Job Title

Product Specialist

Phone

+44 (0)1372 378822

Email

shayz@qd-uki.co.uk

Profile
Name

JOSH HOOK

Job Title

Sales/Service Support Engineer

Phone

+44 (0)1372 378822

Email

josh@qd-uki.co.uk

Profile

Name

LUKE NICHOLLS

Job Title

Sales Manager

Phone

+44 (0)1372 378822

Email

luke@qd-uki.co.uk

Static Mode (Contact Mode)

In static mode, or contact mode, the tip is in continuous contact with the surface of the sample and follows the topography closely in the repulsive regime. Typically, the cantilever is operated in deflection feedback mode. The set cantilever deflection relates to how hard the tip pushes against the surface and therefore determines the force load between tip and sample. For contact mode, long and soft cantilevers with lower force constants typically are used.

(Figures 1 and 2) AFM image of a polymer surface obtained in contact mode.
(Figures 1 and 2) AFM image of a polymer surface obtained in contact mode.
(Figures 1 and 2) AFM image of a polymer surface obtained in contact mode.


Dynamic Mode

In dynamic mode, also called intermittent contact or tapping mode, the cantilever is oscillated near its resonance frequency. When the tip comes close to the surface, the interaction between the tip and the sample causes the amplitude of the oscillation to change. As the cantilever is scanning over the sample, the height is adjusted to maintain a set cantilever oscillation amplitude. An AFM image is therefore produced by imaging the force of the intermittent contacts of the tip with the surface. The user can fine tune the interaction between the tip and the sample working in both attractive and repulsive regimes. Since this interaction with the surface is rather gentle compared to static imaging mode, it can better preserve the sharpness of the AFM tip.

(Figure 1) Correlative SEM and AFM topography image of freestanding graphene membranes measured in dynamic mode.
(Figure 1) Correlative SEM and AFM topography image of freestanding graphene membranes measured in dynamic mode.
(Figure 2) High resolution AFM topography image of a single free-standing graphene membrane.
(Figure 2) High resolution AFM topography image of a single free-standing graphene membrane.

FIRE Mode

The Finite Impulse Response Excitation (FIRE) mode is a novel off-resonance intermittent contact scanning force microscopy technique. The FIRE mode is based on the observation of the cantilever signal in a frequency domain that is above the drive frequency but below the resonant frequency of the cantilever. The drive is provided by periodic excitation of the Z-flexure, which brings the cantilever tip periodically into contact with the sample. Comparison of the excitation profile to the cantilever deflection allows the gate array electronics to extract sample stiffness and tip adhesion in real time. Using this technique, when the tip is at a distance from the sample, background signals due to long range interactions can be measured and subsequentially subtracted from the measurements.

(Figure 1) AFM topography image measured with FIRE mode of two component polymer sample (polystyrene and polyolefin elastomer).
(Figure 1) AFM topography image measured with FIRE mode of two component polymer sample (polystyrene and polyolefin elastomer).
(Figure 2) Corresponding stiffness measured with FIRE mode of two component polymer sample (polystyrene and polyolefin elastomer).
(Figure 2) Corresponding stiffness measured with FIRE mode of two component polymer sample (polystyrene and polyolefin elastomer).

Conductive AFM

Standard Conductive AFM (C-AFM) works in static or contact mode by simultaneously measuring the sample topography and the conductive properties of the sample using a sharp conductive tip. The cantilever tip is in constant contact with the surface while applying a defined bias voltage between the tip and the sample and measuring the current flow. In this way a current or conductivity map of the surface can be created. In addition, single point IV curves can be recorded to probe the detailed electrical properties at user defined positions.

(Figure 1) SEM image of Au electrode structure on silicon substrate.
(Figure 1) SEM image of Au electrode structure on silicon substrate.
(Figure 2) AFM topography image of electrode structure.
(Figure 2) AFM topography image of electrode structure.
(Figure 3) Conductivity map of electrode structure.
(Figure 3) Conductivity map of electrode structure.

Electrostatic Force Microscopy (EFM)

Electrostatic Force Microscopy (EFM) is a phase imaging mode used to study imaging variations in the electric field of the sample substrate and therefore study the surface potential and charge distribution. The EFM mode is the electrical equivalent to Magnetic Force Microscopy (MFM). Like MFM, the EFM measurement is typically done in a two-pass procedure. First the AFM tip is in contact with the surface measuring the topography in dynamic mode. Then in the second pass the tip is lifted by a user defined value (typically ranging from a few to tens of nm) and follows the topography of the surface in lift-mode. During the second pass a DC bias is applied between the conductive cantilever tip and the sample enabling the measurement of the long-range electrostatic interaction forces in combination with the sample topography.

(Figure 1) SEM image of BaTiO3 ceramic showing different grain boundaries.
(Figure 1) SEM image of BaTiO3 ceramic showing different grain boundaries.
(Figure 2) AFM topography image of BaTiO3 ceramic.
(Figure 2) AFM topography image of BaTiO3 ceramic.
(Figure 3) EFM phase image of BaTiO3 ceramic using +1.5V bias voltage.
(Figure 3) EFM phase image of BaTiO3 ceramic using +1.5V bias voltage.

Magnetic Force Microscopy

Magnetic Force Microscopy (MFM) is a phase imaging mode used to study the properties of magnetic materials using a magnetic AFM tip. The tip of the cantilever in atomic force microscopy generally experiences forces originating from the surface of the sample being measured. As a result, the structures shown are a product of the physical topography of the sample surface. However, by using different cantilevers, other characteristics of the sample can be detected and measured.

The simplest method to do this is a two-step procedure. The tip is drawn across the sample line by line and each of the two steps is applied to each line. In the first step, the topography of the sample surface is measured “normally” in AFM mode. In the second step, the same line of the sample is measured again, but the topography of the surface is traced at a defined distance above the surface so that phase shift and amplitude can be recorded.

Due to the distance to the surface, the tip of the cantilever experiences no interactions with short-range forces of the surface in the second step, but only with long-range forces that are still “visible” at this distance. Long-range forces are, for example, magnetic interactions. If the cantilever used has a permanent magnetic tip, these magnetic interactions can be mapped with this method.

(Figure 1) AFM topography image (dynamic mode) of a multilayer Pt/Co/Ta sample.
(Figure 1) AFM topography image (dynamic mode) of a multilayer Pt/Co/Ta sample.
(Figure 2) Magnetic Force Microscopy (MFM) of the same area.
(Figure 2) Magnetic Force Microscopy (MFM) of the same area.

SEM (Scanning Electron Microscopy)

Using its focused electron beam, FusionScope can achieve high-resolution topographic imaging from the surface of your sample. In fact, with its highly surface-sensitive SE mode, FusionScope can collect topographic information from within a few nanometers of the surface.

How does FusionScope obtain this information? Through the use of Secondary Electrons (SE), which are lower energy (< 50 eV) electrons that have a limited escape depth (< 2nm). Thus, only the ones from the sample surface manage to emerge from the material. This allows for achieving very high topographic resolution in the SE mode with low beam energies (< 10 kV), with the additional benefit of reducing the damage caused by high energy beams. Since the SE yield (emission rate) is high, this mode also provides a better signal-to-noise ratio (SNR). Overall, this mode offers a good compromise of high resolution, fast and non-destructive imaging for dimensional analysis.

(Figure 1) SEM micrograph of tin spheres on carbon layer. Image horizontal field width is 50 µm.
(Figure 1) SEM micrograph of tin spheres on carbon layer. Image horizontal field width is 50 µm.
(Figure 2) A high magnification micrograph reveals the details of the marked surface of the broken tin ball from Figure 1.
(Figure 2) A high magnification micrograph reveals the details of the marked surface of the broken tin ball from Figure 1.

Additional SEM Features Include:

  • Ease of navigation with very high-resolution imaging due to FusionScope’s millimeter-to-nanometer scan range capability
  • Advanced automated functions for sharp and crisp images for users at any skill level
  • Up to 80° tilt with Profile View reveals additional “side” features of samples and allows for cross-sectional images
  • Probe current measuring by integrated Faraday Cup interface
  • Automation via the power and versatility of Python scripting
  • Multiple beam-defining orifice options allow the operator to select different beam currents on-demand
  • High frame rates allow live SEM imaging
  • Rapid analysis for application areas for Bio and Medical Sciences, Ceramics, Quality Control, Failure Analysis, Forensics Investigations, Life Sciences, and Semiconductor Inspection

VIDEOS

FusionScope™ — Introduction Video
The FusionScope™ Story
FusionScope™ - A New World of Correlative AFM with SEM
[video width="640" height="390" src="https://qd-uki.co.uk/wp-content/uploads/2025/05/post_processing-1.mp4" /]

Downloads

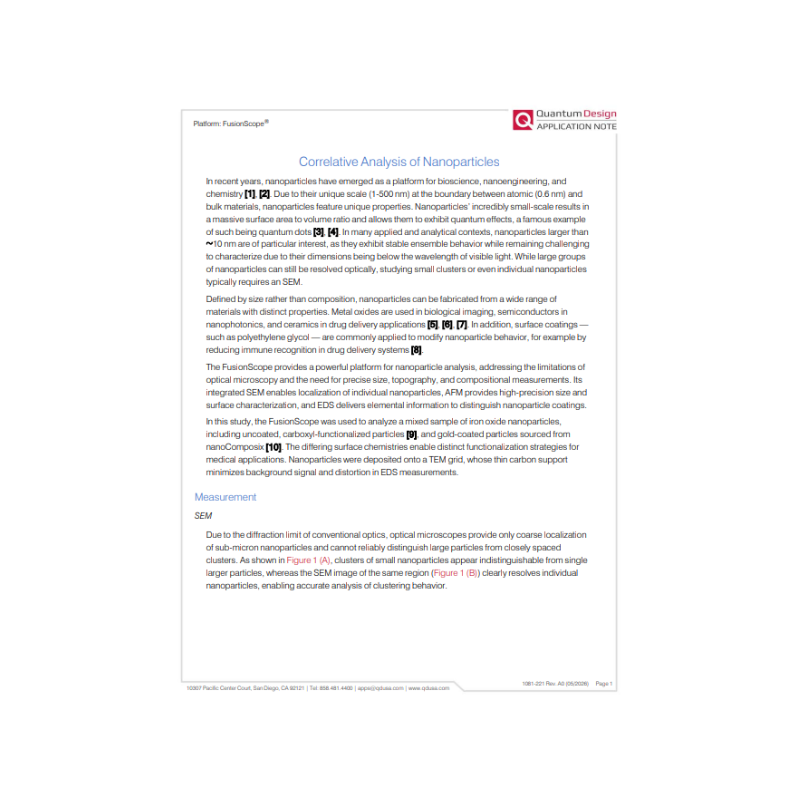

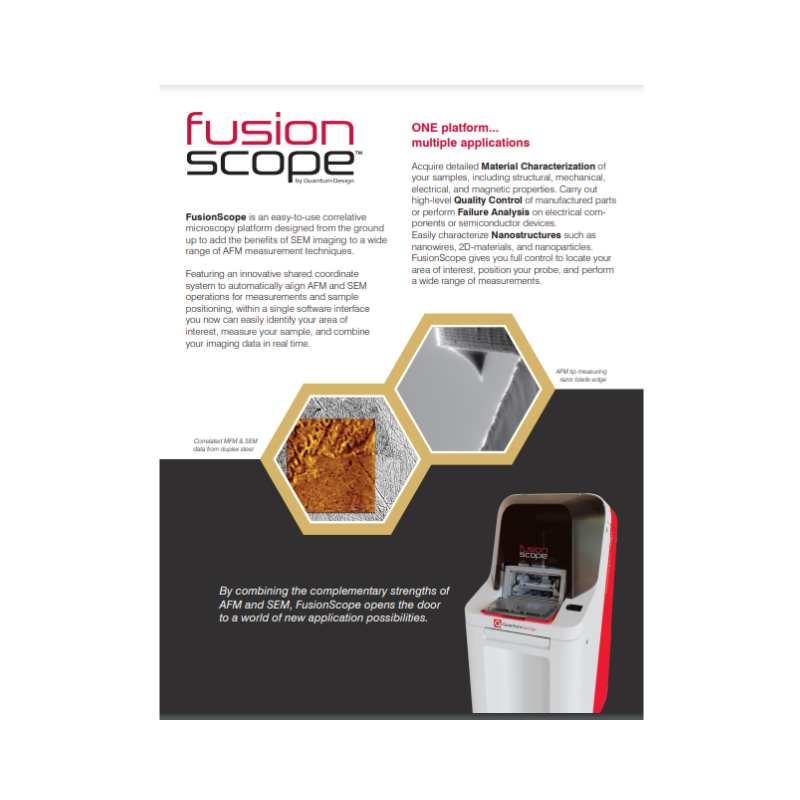

FusionScope Brochure

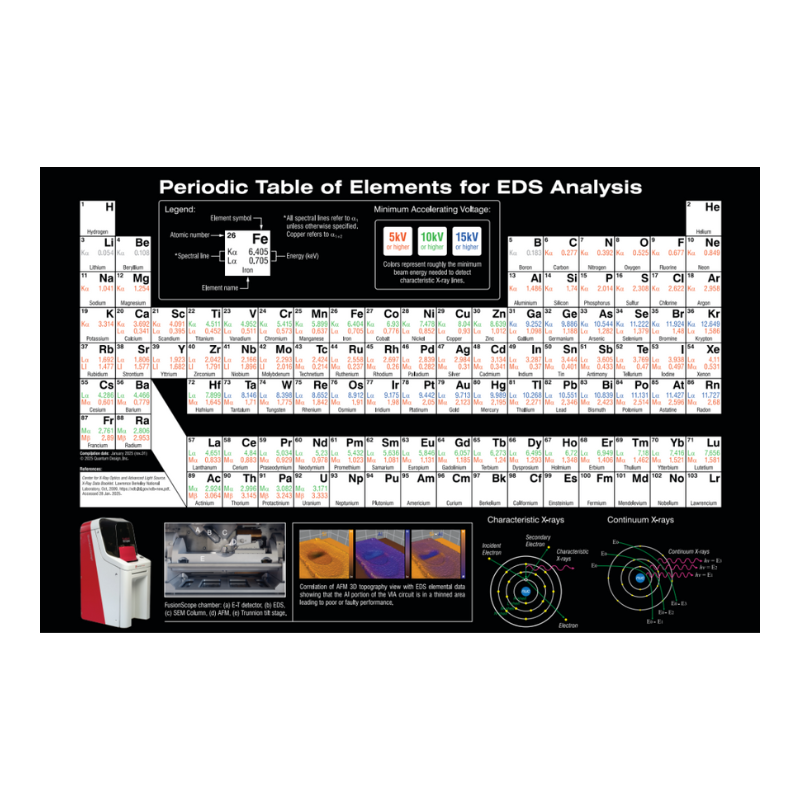

EDS Periodic Table
