Lake Shore Janis SuperTran-VP NMR Cryostats
SuperTran-VP Cryostat Systems
Lake Shore SuperTran-VP STVP-NMR nuclear magnetic resonance cryostats are optimised for NMR magnets with an 89 mm (3.5 in) diameter bore; custom configurations can be fabricated for larger or smaller magnets. Samples are typically mounted in a user-supplied NMR insert, which is mounted inside a 55 mm (2.17 in) inner diameter chamber. An isothermal zone sample tube provides uniform sample temperature and enhanced operation with LN2.
STVP-NMR cryostats can be combined with Infinite Helium for cryogen-free operation throughout the entire temperature range. This enables unattended cryostat operation, ideal for extended duration measurements.
Every cryostat comes with a Lake Shore temperature controller and calibrated sensor
FEATURES
- 30 min cooldown to 5 K
- Sample in flowing vapour for uniform sample cooling
- Easy sample access with top-loading sample chamber
Profile
Profile
Profile
Profile
Profile
Profile
Profile
SPECIFICATIONS
SPECIFICATIONS
| Temperature Range | <2 K (1.5 K in single-shot mode) to 325 K (420 K optional) |
| Typical temperature stability 1 | ±50 mK |
| Orientation 2 | Vertical for operation <4.5 K |
| Cooldown time (LHe to 5 K) | 30 min |

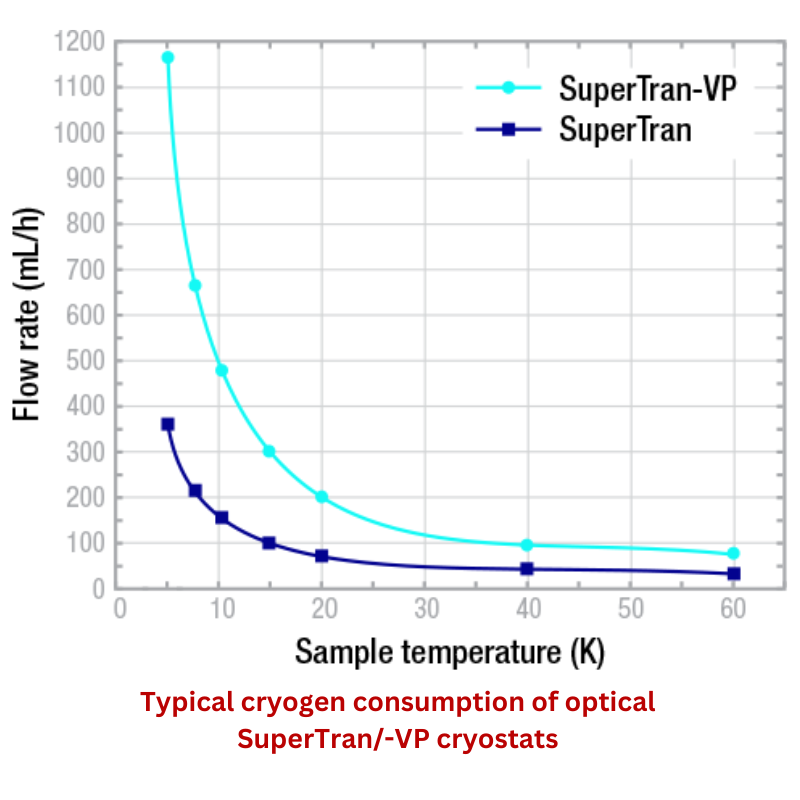

| Cryogen consumption (LHe room temp to 4.2 K) | 0.5 L |
| Cryogen consumption (LHe at 5 K) | 1.4 L/h |
| Height (approximate) | Customer-specified to fit magnet |
1 Measured with temperature controller 2 Cryogen consumption may be higher during non-vertical operation
