Book Your Hyperspectral Imaging Camera Demo Loan
High Performance, Compact Hyperspectral Imaging Cameras
We are really pleased to be able to offer two incredible Specim Hyperspectral Imaging Cameras to researchers. The FX10 and FX17 from the Specim FX series.
Specim is a pioneer and world leader in hyperspectral imaging instrumentation. With a hyperspectral imaging camera from Specim you will have spectral information at each and every pixel of your image. All the cameras from Specim operate according to the push-broom technique, meaning that the target is imaged line by line to build up the full 2D image. Specim have instruments designed to operate in specific discrete bands across the VIS-IR spectrum (400 nm to 12 µm).
“ We’re offering researchers the opportunity to hire the Specim FX10 or FX17 cameras for a week or a month (or possibly longer) at a time. Use our camera for your upcoming research project, without having to commit to buying one.”
Dr. Luke Nicholls, Technical Sales Engineer, Quantum Design UK and Ireland
Scroll down to fill out the form to register your interest and preferred dates.
Tailor the camera functionalities with applications matching your own analysis requirements. Applications define how the camera is used and how the hyperspectral data is processed, analysed, saved, and visualised.
If you buy a camera within 9 months of the loan, we’ll take a portion of the loan cost off the purchase price.
FEATURES FX10:
- 400-1000 nm spectral range
- 5.5 nm spectral resolution
- 220 spectral bands
- F/1.7 optics
- 1024 spatial pixels
- 330 fps (full frame)
- CL or GigE models
- 600:1 SNR (peak)
FEATURES FX17:
- 900-1700 nm spectral range
- 8 nm spectral resolution
- 230 spectral bands
- F/1.7 optics
- 670 fps (full frame)
- CL or GigE models
- 1000:1 SNR (peak)
Profile
Profile
Profile
Profile
Profile
Profile
Profile
WHICH ONE IS FOR YOU?
The FX10 is a compact, lightweight, cost-effective hyperspectral camera for the VNIR spectral range (400-1000 nm). F/1.7 optics enables excellent light throughput, high sensitivity, short integration times and high signal-to-noise ratio. The FX10 operates with an impressive frame rate of 330 fps (full frame) using 1024 spatial pixels and 220 spectral bands. By reducing the number of spectral bands, the frame rate can be increased up to 9,900 fps. The camera is supplied with a high quality lens (38 deg FOV) and includes an integrated shutter and order sorting filter. The camera is also IP52 rated, making it suitable for use in harsh environments.

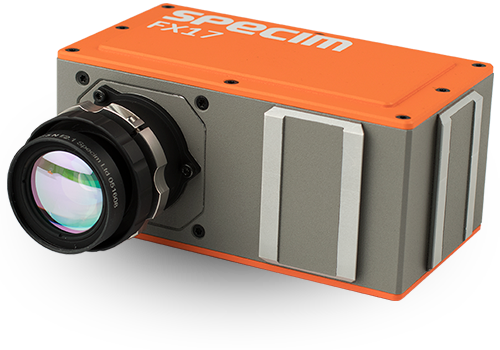

The FX17 is a small footprint hyperspectral camera built around an InGaAs detector. It operates in the NIR spectral range (900-1700 nm). As with the FX10 camera, F/1.7 optics enables excellent light throughput, high sensitivity, short integration times and high signal-to-noise ratio. The FX17 operates with a frame rate of 670 fps (full frame) using 640 spatial pixels and 230 spectral bands. By reducing the number of spectral bands, the frame rate can be increased up to 15,000 fps. The camera is supplied with a high quality lens (38 deg FOV) and includes an integrated shutter. The camera is also IP52 rated, making it suitable for use in harsh environments.
Please use this form to contact us about the loan of this camera
VIDEOS
Downloads
Supplier Info
Applications
Vegetation and Agriculture
Colour and Density in Printing
Phenotyping
Recycling
Food Sorting
Waste Sorting
Moisture Measurement
