Molecular Vista “Vista One” PiF Microscope

Nano IR Microscope and Spectrometer

The original PiF microscope for nano‑IR chemical analysis

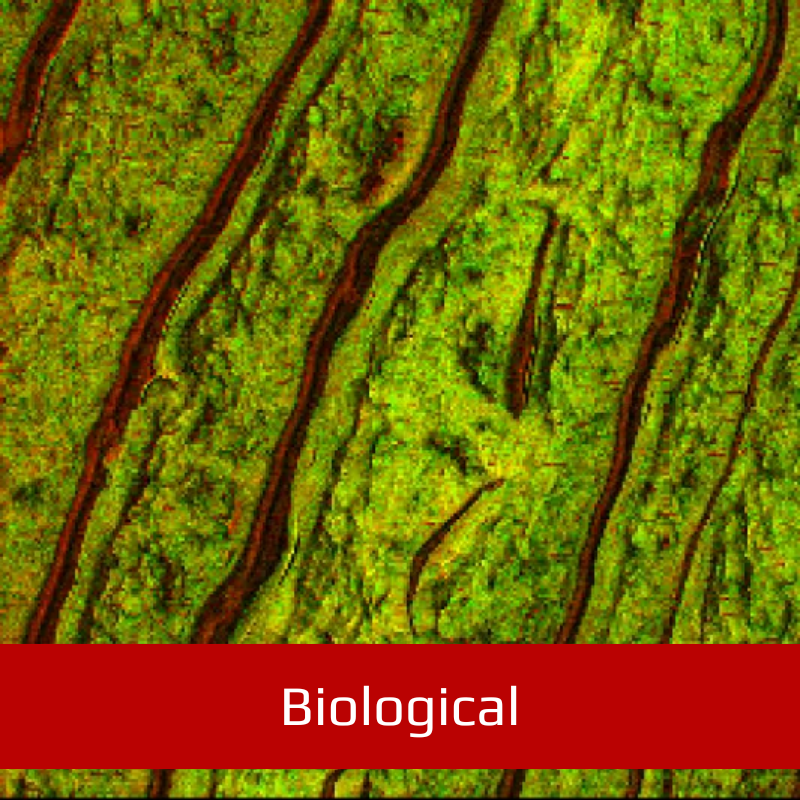

Vista One makes nanoscale chemical maps and point spectra with more detail than FTIR or nano-FTIR. Characterise at the highest resolution.

Offering the highest resolution nanoscale chemical analysis instruments available.

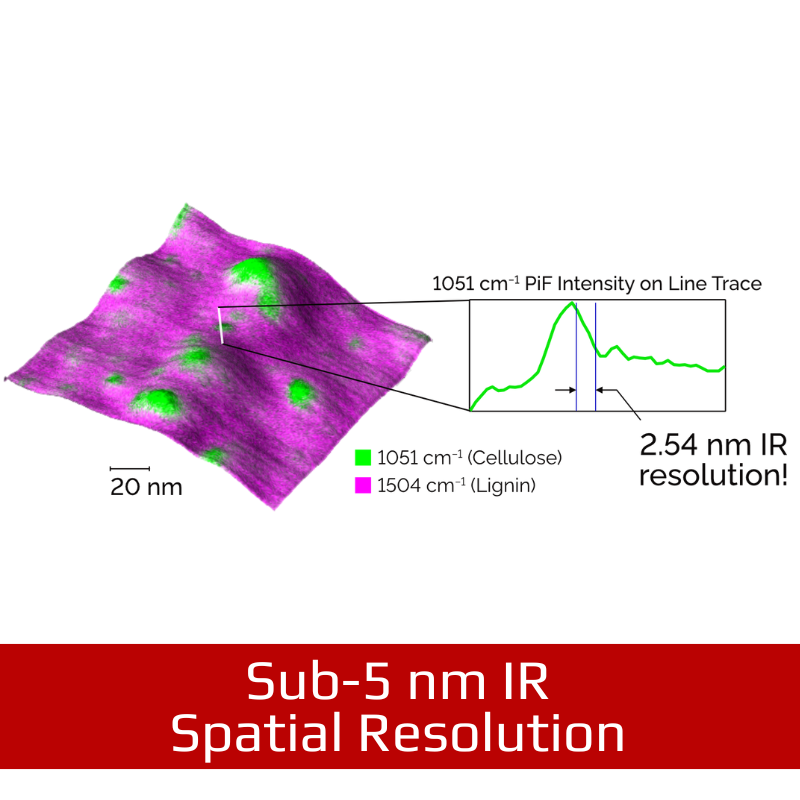

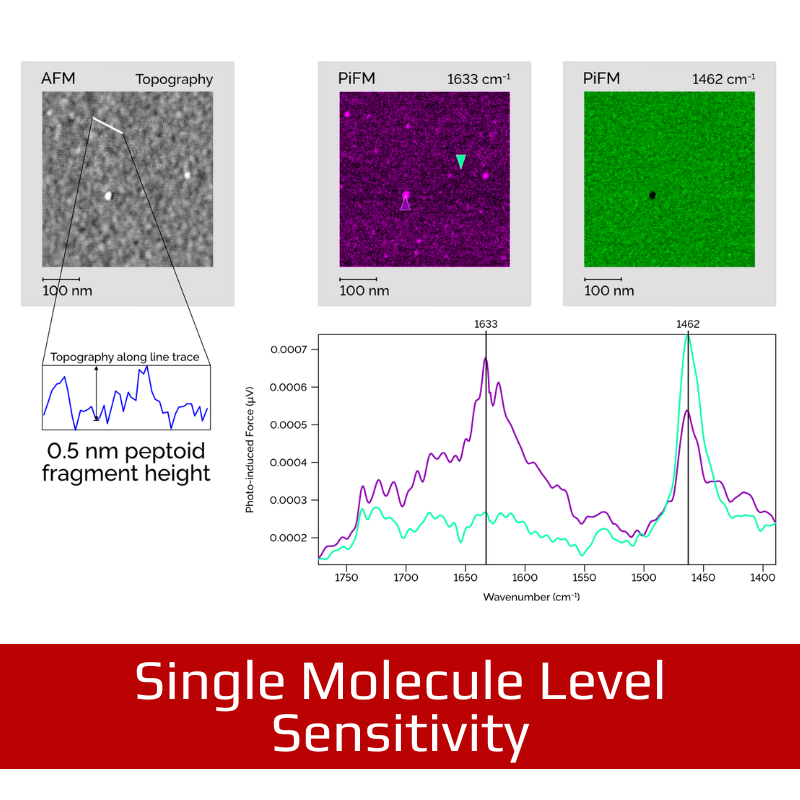

  • Sub-5 nm IR spatial resolution

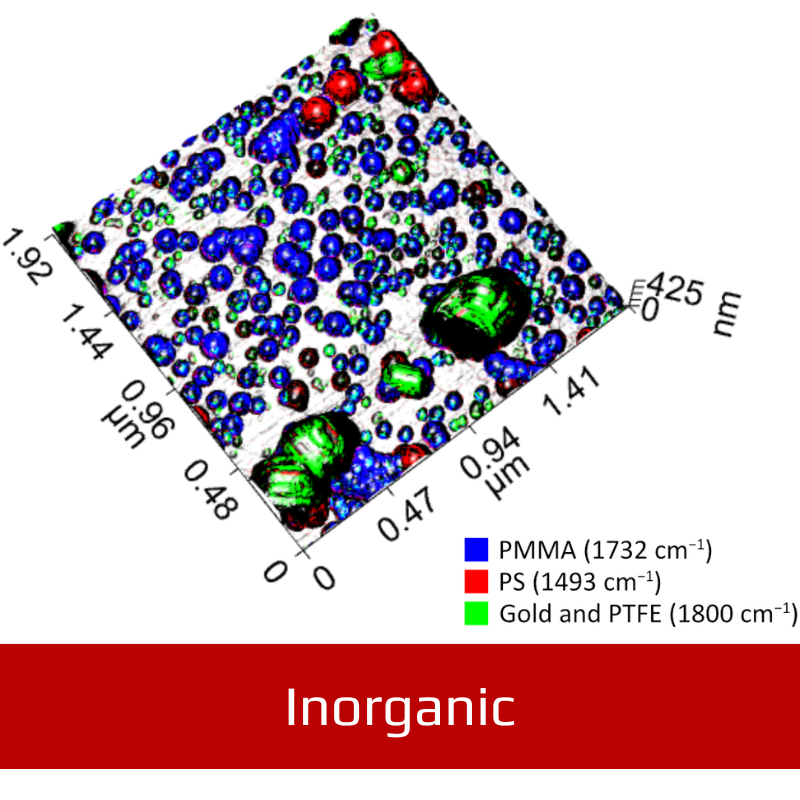

  • Unique chemical identification capability

Complete results immediately

Designed for high throughput measurement

  • Tunable IR lasers can sweep a full PiF‑IR spectrum in as little as 100 ms.
  • Use existing FTIR spectra to identify materials.
  • Fixed-wavelength PiFM images can be acquired in minutes with a range of up to 80 µm in X and Y.
  • Optical alignments are maintained even when changing samples.
  • hyPIR™ imaging and our automated principle component analysis tools provide complete image and spectral data‑sets with minimal effort.


  • Engineered for precision

    • Capacitive sensors + optical encoders – The motorised stage features 6 mm travel and optical encoders for precision control. The capacitive sensors in the AFM scanner ensure linear scans with a ~100 pm RMS precision.
    • Dual Z – Image samples faster without introducing artifacts. The dual Z‑piezo scanner system provides accurate scans with a large 12 µm vertical range.
  • Proper optics integration

    • Built to handle any light – A 3D-actuated parabolic mirror focuses excitation light onto the side of the tip no matter what wavelength of light is used.
    • Fast cantilever alignment – The cantilever alignment chip ensures that optical alignments are maintained for both the AFM feedback and near-field lasers during cantilever changes.
  • Accessible and stable AFM head

    • Invar construction – Both the head and scanner are made of invar for the best thermal stability possible.

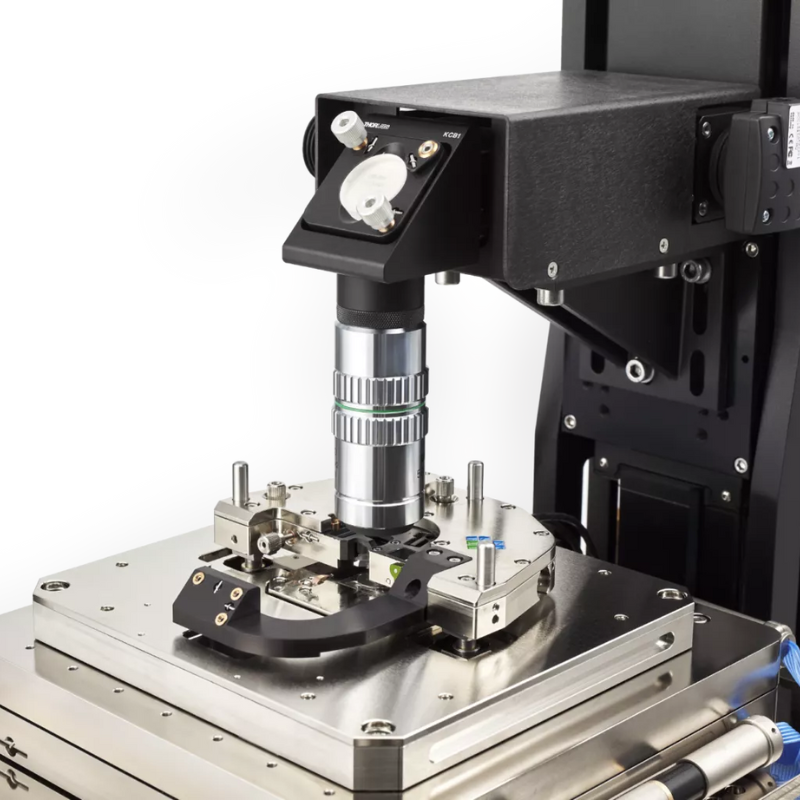

    • Low profile stability – The low-profile AFM head allows us to use top objective lenses with high numerical apertures. This provides an excellent optical view of the sample. The head also features the most stable mount configuration for low drift and acoustic stability.
  • Versatile optical pathways

    • Bottom optics* – Nano-precision independent scanning allows moving the excitation source focus spot in 3D space.
    • Many optical views – Access the top, bottom, or side of the AFM tip via the top objective, bottom optics, and parabolic mirror. Configure up to 6 lasers for PiFM and PiF-IR.
  • Customisable environments

    • Optional environmental cover – The optional environmental/vacuum cover allows customisation of the entire microscope environment. Work under partial pressure with any gas, pump down to vacuum, or control the humidity.
  • Work in your element

    • No need to whisper – Install Vista One anywhere you want, and the combination of acoustic enclosure, active isolation table, and external cable frame ensure the AFM tip stays quiet.
    • Thermal isolation – The Acoustic Chamber features a temperature control unit to keep the entire system stable within ±0.1 ºC. *
  • Versatile and customisable

    • Any optical technique – Vista One is Molecular Vista’s original PiF microscope designed to handle any optical experiment. It also supports sSNOM, confocal Raman, and many custom designed experiments.
    • Customise any optic – Molecular Vista uses standard optical components from ThorLabs and other suppliers. This means that you aren’t tied into a proprietary system and your Vista One will be infinitely configurable by nature.
David Want Quantum Design UK and Ireland


Job Title

Product Specialist



Job Title

Support Team



Job Title

Sales Manager

Dr Jordan Thompson Quantum Design UK and Ireland


Job Title

Service Engineer

Quantum Design UK and Ireland Dr Shayz Ikram


Job Title

Product Specialist



Job Title

Sales/Service Support Engineer




Job Title

Technical Sales Engineer


+44 (0)1372 378822


Microscope: Vista One frame

Isolation: active vibration isolation table, and acoustic enclosure with temperature control

Laser(s): choice of QCL

  • Protein Range: A laser designed specifically for protein analysis covering 1350-1860 cm−1. Can be upgraded to the full fingerprint range anytime.
  • Oxide Range: A laser designed for analysis on both organics and inorganics covering 760-1350 cm−1. Can be upgraded to the full fingerprint range anytime.
  • Fingerprint Range: A laser which covers the entire IR fingerprint region of 760-1860 cm−1.

Multiplexer: medium size

Inverted Optics: optional

Add-ons (optional): environment/humidity/vacuum control, heated stage, polarisation switcher, dry-air filtration, KPFM, cAFM, PFM, force-volume mapping, spectrometer, photon counter (SP-APD), s-SNOM module

Everything in Vista One IR


  • Multiplexer: large size
  • Required add-ons: s-SNOM module

Everything in Vista One IR


  • Laser(s): choice of QCL, visible diode laser
  • Multiplexer: large size
  • Required add-ons: spectrometer

Microscope: Vista One frame

Isolation: active vibration isolation table, and acoustic enclosure with temperature control

Laser(s): bring your own

Multiplexer: optional

Add-ons: optional


Beam Deflection AFM Head (AFM-BD) Body Material: Invar for excellent thermal stability
Body Profile: 12 mm thick to allow short working distance top objective lens
AC Detector Noise: <50 fm/root Hz above 100 KHz
Detector Bandwidth: 6 MHz
Cantilever Deflection Sensor Laser: 904 nm with finely adjustable beam steering and focus
Manual Translation Stage: 3mm movement in X and Y for coarse tip alignment to focus point of optional bottom objective lens
Fast-Z Module: 1 um z-piezo on cantilever mount serves as the Fast-Z element of high-speed Dual-Z feedback system
Operational Environment: Ambient air, optional open liquid cell, or vacuum/partial pressure with optional environmental chamber cover
Excitation Optics: Broadband (400 nm – 20 um) integrated parabolic mirror with 3D piezo-motor stage for tip-sample illumination for PiFM and reflection-mode s-SNOM
Forward Facing Tuning Fork AFM Head (AFM-FFTF) Body Material: Invar for excellent thermal stability
TF Operation: Tapping-mode
Manual Translation Stage: 3 mm movement in X and Y for coarse tip alignment to external laser or focus point of bottom objective lens (for tip-enhanced spectroscopy)
Integrated Tip Scanner: X-Y flexure scanner built into head with 12 um x 12 um range for scanning the tuning fork
Fast-Z Module: 1 um z-piezo on cantilever mount serves as the Fast-Z element of high speed Dual-Z feedback system
Main Body Frame Versatile frame architecture provides for multiple optical pathways to the tip-sample interface.
Inverted Objective Lens (optional): 100X 1.4NA Oil immersion lens or 60X 0.9A conventional lens forms the basis of a custom-designed inverted optical microscope for bottom viewing and illumination of the tip-sample interface. Optional broadband reflective lens available for wideband IR illumination.
Tip Alignment Mechanism: Piezo-driven XYZ stage (12 um for XY and 100 um for Z) for the inverted objective lens for precise alignment of the focus spot onto the tip

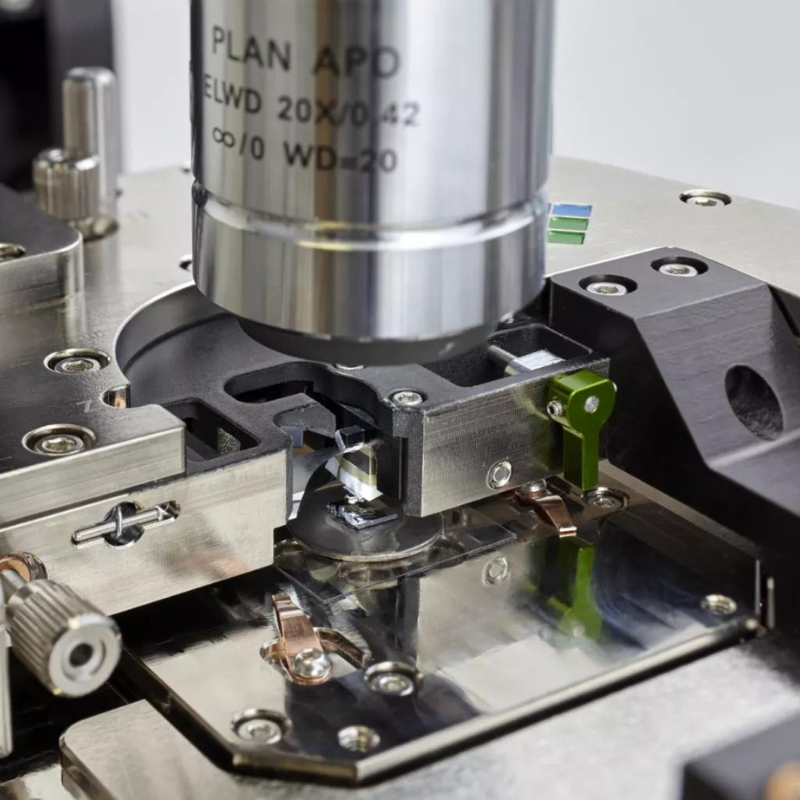

Top Objective Lens: 20X, 0.42NA 20 mm working distance standard; shorter working distance (down to 13 mm) also supported for higher NA options
Top Objective Lens Focus: Motorized with stored focus position for fast return after tip or sample change
CCD Camera: Concurrent top and inverted views ; digital zoom, pan, and capture
Tip-Sample Approach: Automated engagement
Sample Stage: Motorized precision stage with 6 mm x 6 mm travel range
Maximum Sample Size: 25 mm x 25 mm x 5 mm
System Noise: <90 pm RMS (dependent on environment)
Optical Configuration: Multiple optical pathways to bottom objective and side parabolic mirror provided; pathways are based on industry standard 1” cage system to allow user customization and expansion.
Sample Scanner: XYZ flexure stage scanner with 80 um x 80 um x 15 um scanning range (closed loop); Z sample scanner serves as the slow Z component of high speed Dual-Z feedback system. Built-in capacitive sensors provide closed-loop scanning control for X and Y for superb linearity and accuracy; optional Z capacitive sensor available.
Scanner Material: Invar for excellent thermal stability
Scanner Sensor Noise: 0.15 nm RMS for X and Y with 0.08 nm RMS achievable with software controlled reduced scan range (20 um x 20 um)
High-Speed Electronics FPGA-based control electronics has a section dedicated for high speed scanning probe microscopy.
PiFM & Optics Electronics TTL Signal Generator: Two flexible TTL signal generators (with 160 MHz sampling rate) with adjustable duty cycle and DC offset for direct current modulation of laser diodes or for input to Bragg cells
Flexible Lock-in Referencing: Lock-in amplifiers can be phase locked to any other lock-in or at any calculated frequencies from the other lock-ins
Digital Counter Input: Input for avalanche photodiode or photomultiplier for low-light detection
Computer Mounted in a 19″ rack. Minimum configuration includes i7 based Quad Core, 8GB RAM, 256GB SSD and 2000GB HD combination, 26″ or dual monitor support , 8×USB ports, Windows 10 64bit Professional
VistaScan Image Acquisition Software Supported modes/features include:
Contact and AC AFM
STM and PLL feedback (for high Q sensors such as tuning-fork)
Ultrafast Dual-Z feedback
Bi-modal force gradient imaging for linear and non-linear PiFM
Sideband force gradient imaging (for KPFM via electric force gradient detection)
Concurrent acquisition of 26 channels in Dual-Z configuration and 40 channels in Slow-Z configuration
Concurrent acquisition of 4 channels for each spectroscopy mode which may include
vs gap distance
vs bias with and without feedback
step response to voltage response with and without feedback
SurfaceWorks Image Analysis Software Powerful and intuitive software. Features include:
Shape and histogram-based masks
Functions and analysis (flattening, FFT filtering, line & region analysis, 3D rendering, palettes, etc) applied to an image saved as a file property along with the raw data file
Copy/Paste file property to apply same functions and analysis to other image file(s)
Preview feature for most functions

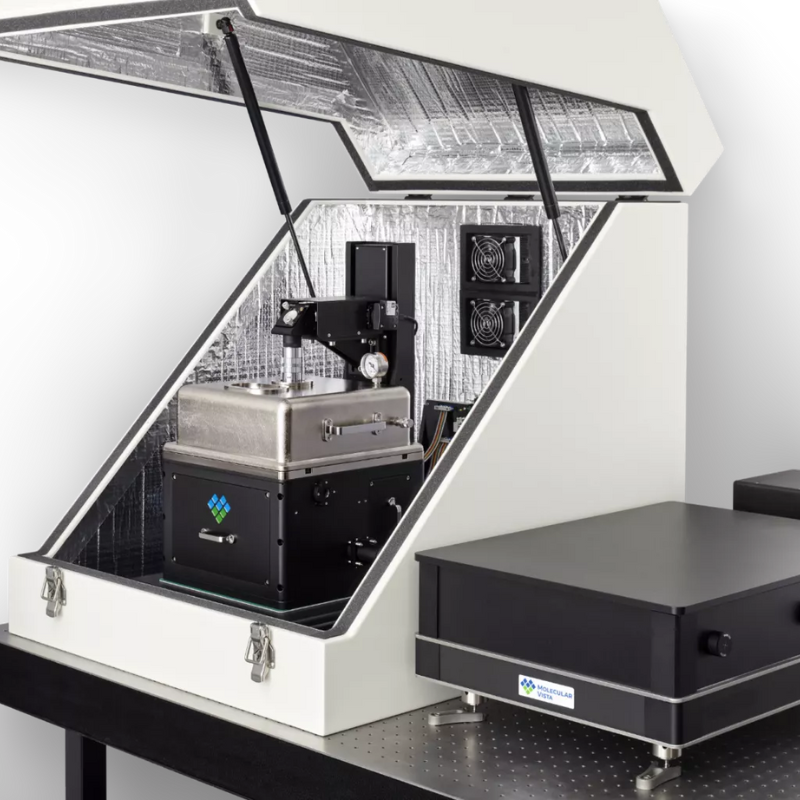

Acoustic Enclosure Optional acoustic enclosure (30W×30D×27H in3). Available with or without temperature control.
Comes with ports for cables and optical access.
