Moxtek Benchtop Sources
Small Spot Size Ideal for X-ray Imaging Applications

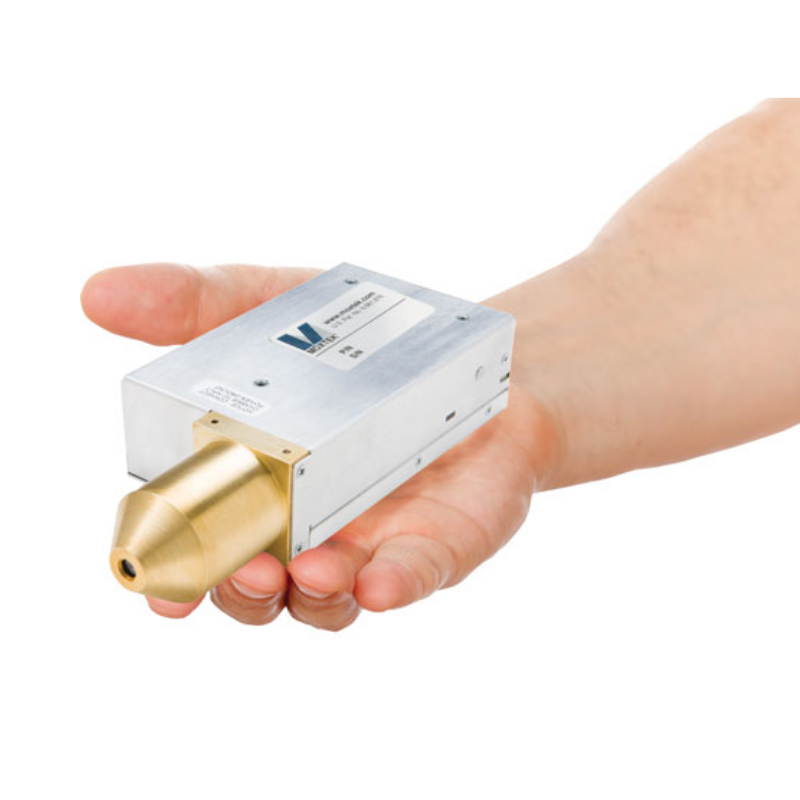

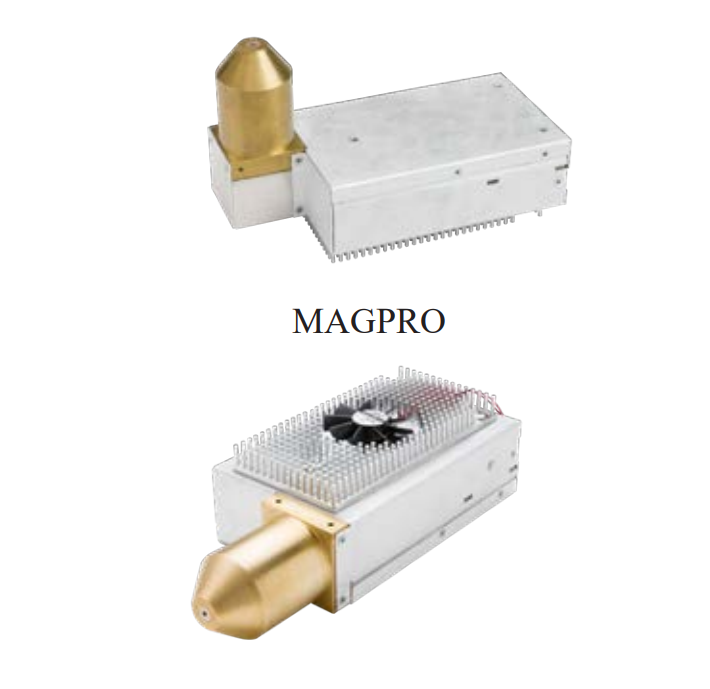

Moxtek is a manufacturer of x-ray sources for both handheld and bench-top XRF instruments which have many desired functional characteristics. The Moxtek® MAGPRO 70kV 12W x-ray source is designed for the portable XRF, XRD and Imaging instruments. Small spot size makes it a good choice for x-ray imaging applications.
Whilst there are off-the-shelf X-ray sources available, with default windows and target materials, as shown in the below tables, all of these sources are also customisable upon request.
FEATURES:
- Small, compact design – Close coupling of detector/ source
- Lightweight – Portable, easy to integrate
- Stable output – High Precision of measurements, low detection limits
- Multiple communication protocols – Improved heavy element analysis
- High x-ray output – Short sampling time
- Small spot size – Possible coupling with optics, good image resolution
- 70kV 12W – Improved light element analysis
- Wide cone angle – Energy and flux appropriate for backscatter imaging
- (70kV only) – Large flat field for imaging (70kV only)
Profile
Profile
Profile
Profile
Profile
Profile
Profile
SPECIFICATIONS
| Benchtop Source | Beam Current | Focal Spot | Window | Available Targets | Application | Link to datasheet |

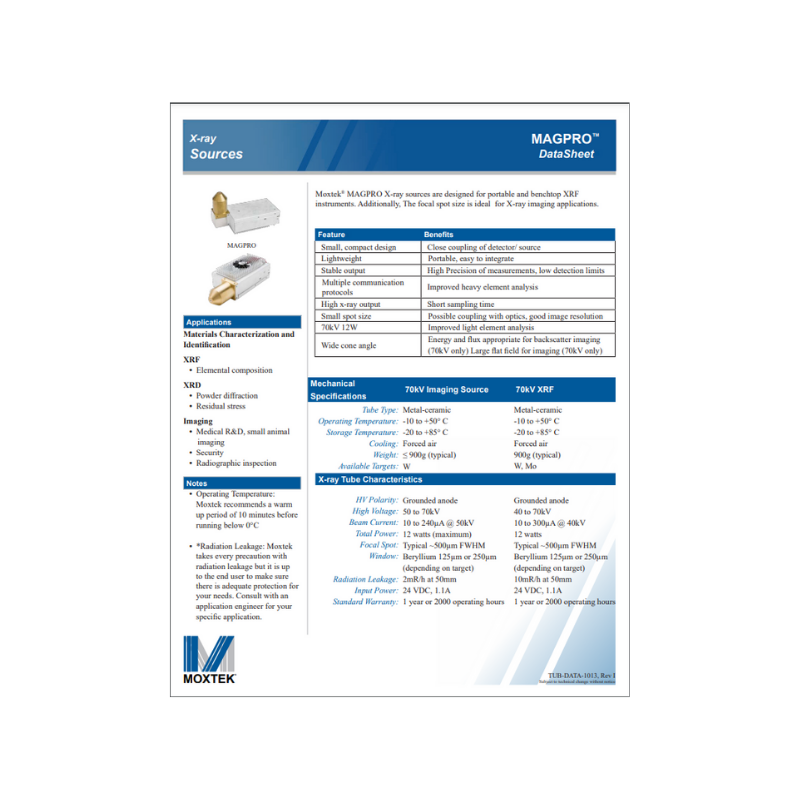

| MAGPRO – 70kV Imaging Source | 10 – 240 uA at 50kV | ~500um FWHM | Be, 125um or 250um | W | · XRF
· XRD · Imaging |
TUB-DATA-1013-MAGPRO.pdf (moxtek.com) |
| MAGPRO – 70kV XRF | 10 – 300 uA at 40kV | ~500um FWHM | Be 125um or 250um | W, Mo | · XRF
· XRD · Imaging |
TUB-DATA-1013-MAGPRO.pdf (moxtek.com) |

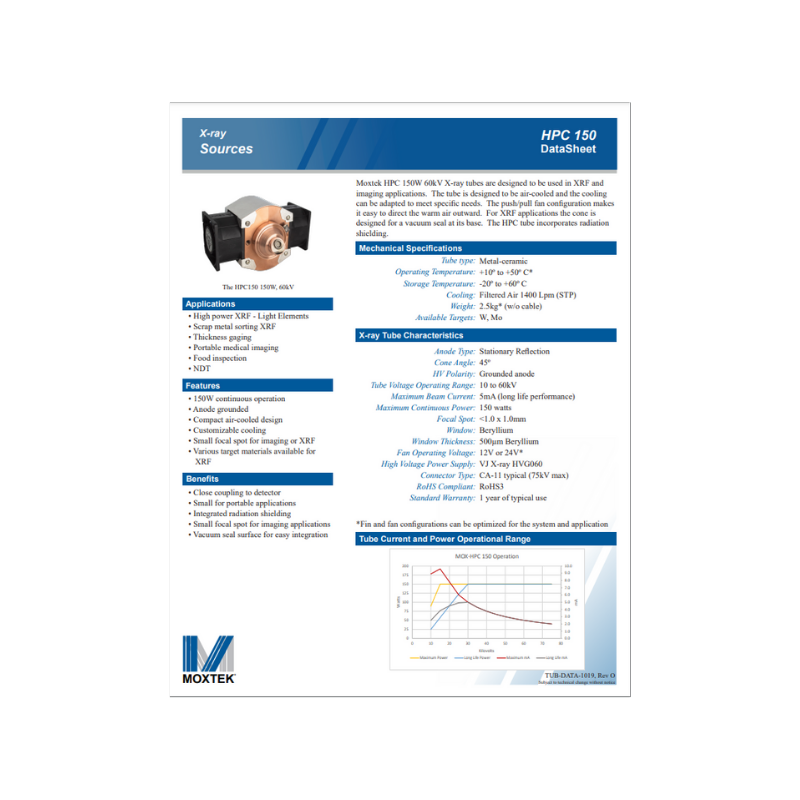

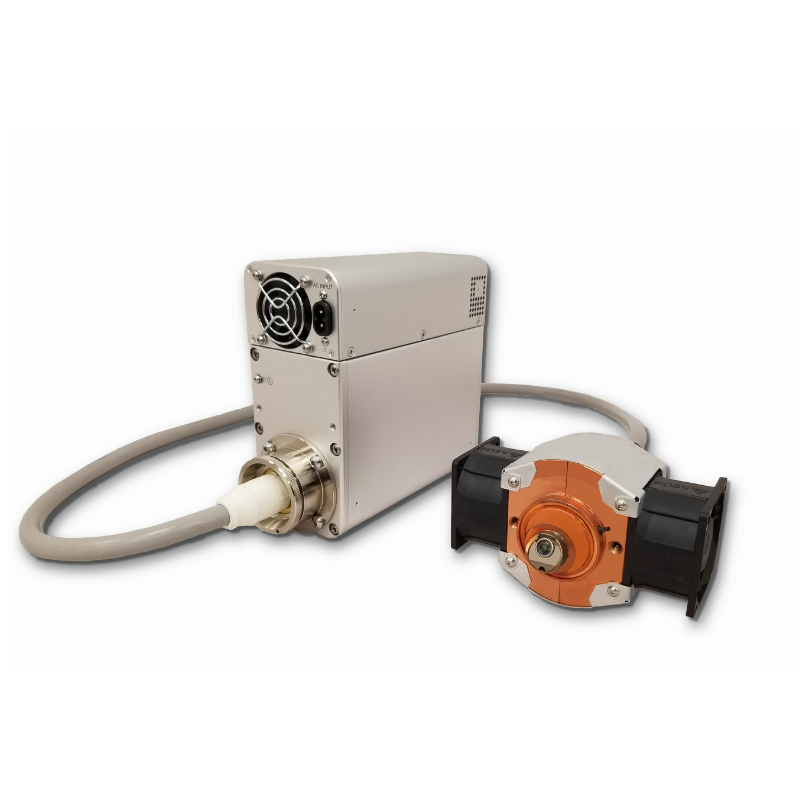

| HPC 150 | 5mA (long life) | < 1.0 x 1.0 mm2 | Be 500um | W, Mo | · XRF
· Imaging |
TUB-DATA-1019-MoxHPC-150.pdf (moxtek.com) |

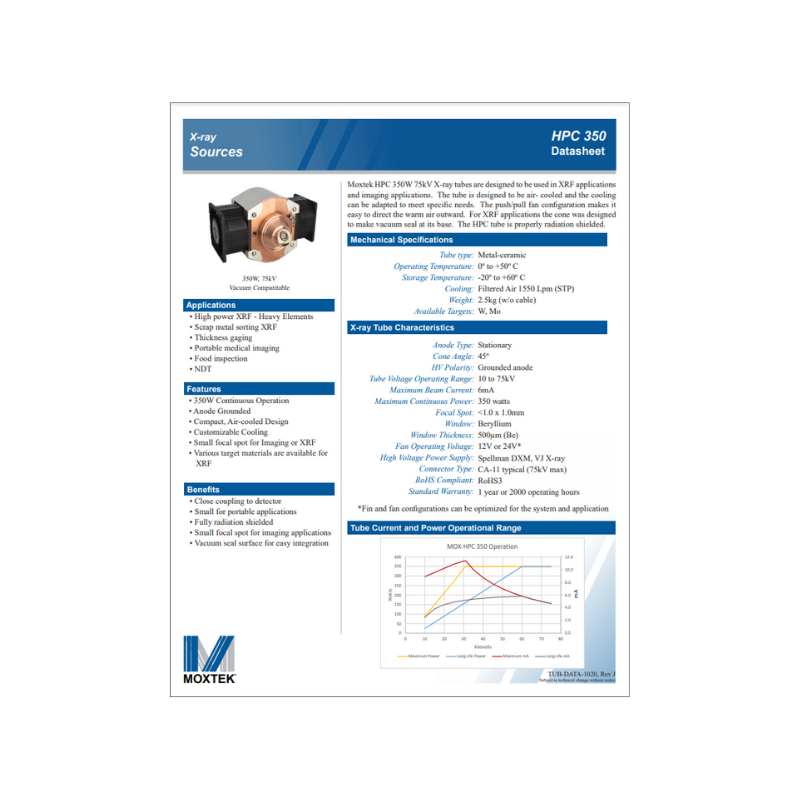

| HPC 350 | 6mA | < 1.0 x 1.0 mm2 | Be 500um | W, Mo | · XRF
· Imaging |
TUB-DATA-1020-MoxHPC-350.pdf (moxtek.com) |
VIDEOS
Downloads
Supplier Info
APPLICATIONS
Material Characterisation and Identification (XRF)
• Metal and alloy sorting • Mining and geology • Environmental analysis • Lead in paint • Regulatory (RoHS/WEEE) • Art and archaeometry • R&D
X-ray Imaging
• Medical R&D, small animal imaging • Security • Radiographic inspection
