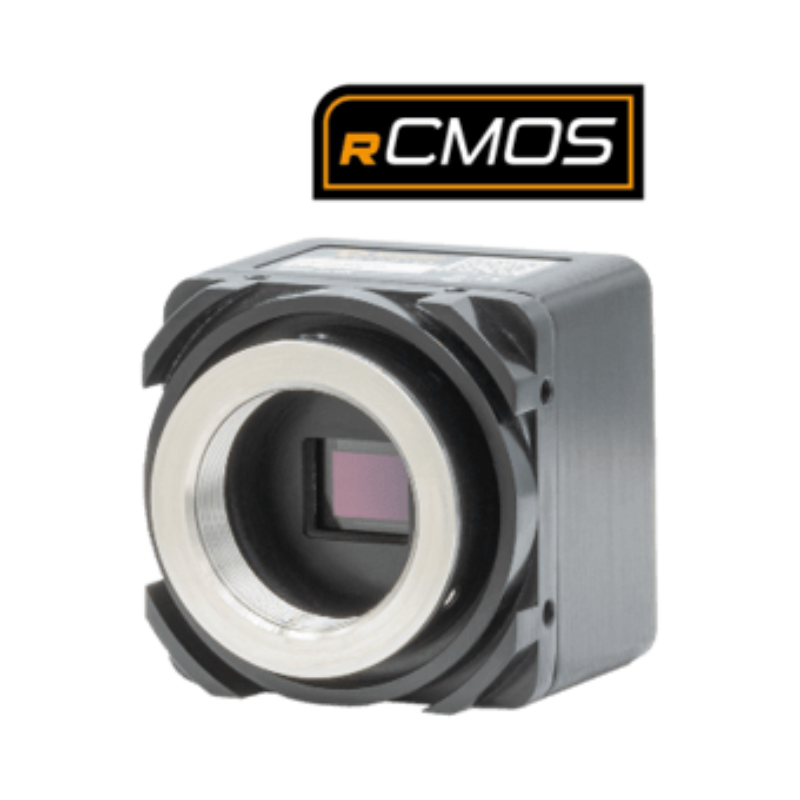

Raptor CMOS Cameras
High Resolution, Ultra Sensitive Digital EMCCD Camera
Raptor has created a family of ruggedised CMOS cameras. The Hawk series of ultra-sensitive RCMOS OEM cameras cover UV, VIS and NIR wavelengths and are designed to reliably perform in the harshest conditions from the seabed to space, withstanding temperature, pressure, moisture, radiation, shock and vibration extremes.
Available in a range of resolutions, the Hawk cameras are perfect for the most demanding conditions for airborne, space, surveillance, industrial and marine applications. OEM only – minimum orders apply
Profile
Profile
Profile
Profile
Profile
Profile
Profile
Ruggedised CMOS SVGA 1/1.7″ Night Vision Camera
816 x 624, 9μm pitch CMOS technology: Enables SVGA resolution imaging from 0.3μm to 1.1μm
Latest Generation CMOS technology: Enables ultimate sensitivity similar to II or EMCCD in mono and colour options
Ultra compact and rugged: Easy integration into any Electro-Optics platform
High QE: >77% @ 510nm: Enables better quality image under low light conditions
Global shutter, progressive scan technology: Enables real time, lag-free images at 60Hz full-frame
Datasheets
Hawk 800 Technical Drawing
Ruggedised CMOS SVGA 1/1.7″ Night Vision Camera
1944 x 1472, 4.5μm pitch CMOS technology: Enables highest resolution imaging from 0.3μm to 1.1μm
Latest Generation CMOS technology: Enables ultimate sensitivity similar to II or EMCCD in mono and colour options
Ultra compact and rugged: Easy integration into any Electro-Optics platform
Global shutter, progressive scan technology: Enables real time images at 50Hz full-frame
Datasheets
Hawk 1920 Technical Drawing
Ruggedised CMOS 12.3MP Night Vision Camera
4096 x 3008, 2.74μm pitch CMOS technology: Enables highest resolution imaging from 0.3μm to 1.1μm
Latest Generation CMOS technology: Enables ultimate sensitivity similar to II or EMCCD in mono and colour options
Ultra compact and rugged: Easy integration into any Electro-Optics platform
Global shutter, progressive scan technology: Enables real time, lag-free images at 10Hz full-frame
Datasheets
Ruggedised UV optimised CMOS 2/3” Camera
2848 x 2848, 2.74μm pitch CMOS technology: Enables imaging from 0.2μm to 0.4μm
Latest Generation CMOS technology: Enables ultimate sensitivity similar to EMCCD
Ultra compact and rugged: Easy integration into any Electro-Optics platform
High UV QE: >36% @ 250nm: Enables better quality image under low light conditions
Global shutter, progressive scan technology: Enables real time, lag-free images at 15Hz full-frame
Datasheets
Downloads
Supplier Info
APPLICATIONS
Surveillance
Ground Based Surveillance | Airborne Surveillance | UV Imaging Blue Response | Scientific Imaging | Situational Awareness
