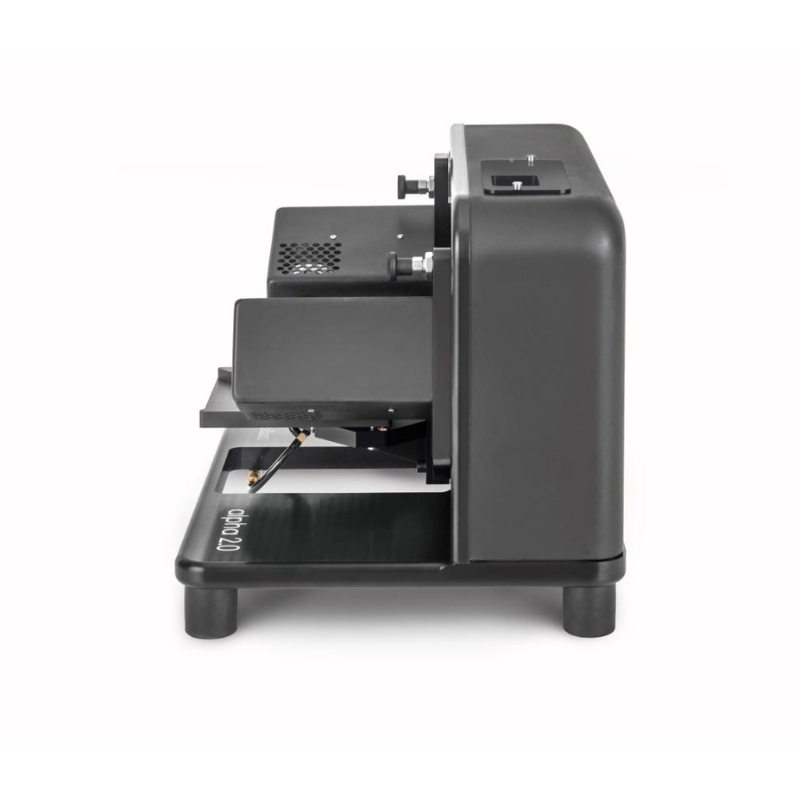

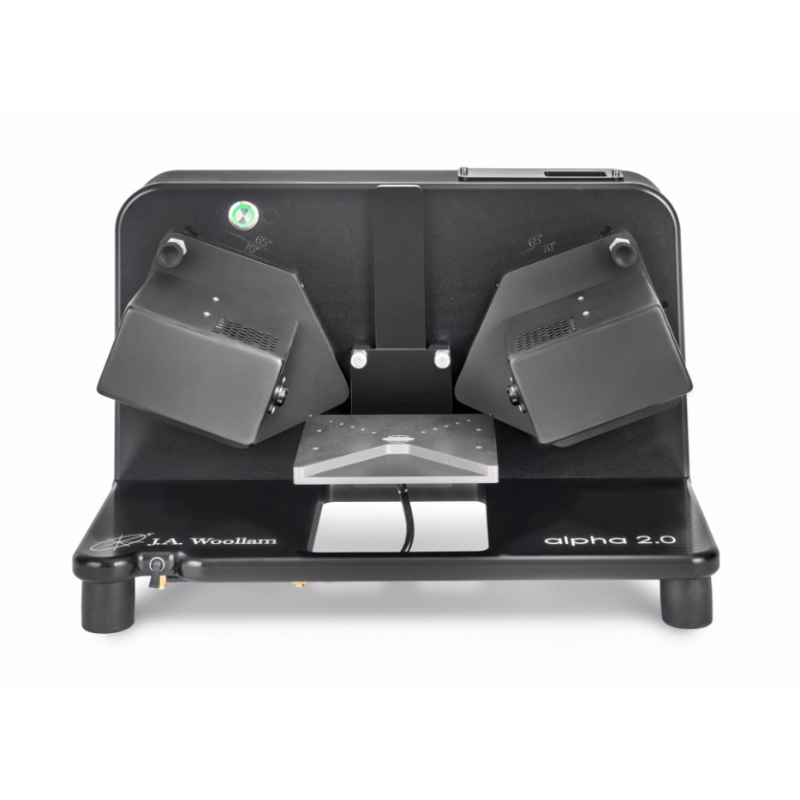

J.A. Woollam alpha 2.0 Spectroscopic Ellipsometer
Ellipsometer for spectral range of 400-1000 nm
The alpha 2.0 is a budget-friendly option for routine measurements of thin film thickness and refractive index. A compact footprint and simple design make the alpha 2.0 easy to use while harnessing the power of spectroscopic ellipsometry. It was designed for ease-of-use: simply place the sample on the stage, choose the model that matches your film, click “measure”, and you will have results within seconds.

FEATURES
- Easy-to-Use
Push-button operation is complemented by advanced
software that takes care of the work for you. - Powerful
Proven spectroscopic ellipsometer technology gives you
both thickness and refractive index with much higher
certainty than other techniques. - +Flexible
It works with your materials – dielectrics,
semiconductors, organics, and more. - Affordable
A streamlined instrument created for research and
development of simple samples. - Fast
Simultaneous collection of 190 wavelengths for highspeed, multi-angle ellipsometry measurements.
SPECIFICATIONS
Spectral Range | 400 nm to 1000 nm, 190 wavelengths |
Angle of Incidence | • Manual adjustment • 65°, 70°, 75°, or 90° (straight-through) |
System Overview | • Dual-Rotation optical design • CCD detection • Automated sample alignment |
Sample Size | The alpha 2.0 accommodates samples up to 200-mm diameter and 16-mm thick. |
Data Acquisition Rate | • 5-10 seconds for full spectrum [typical] |
Software | CompleteEASE for data acquisition, data analysis, and optical simulations |
Beam Diameter | • Focused: < 1 mm |
