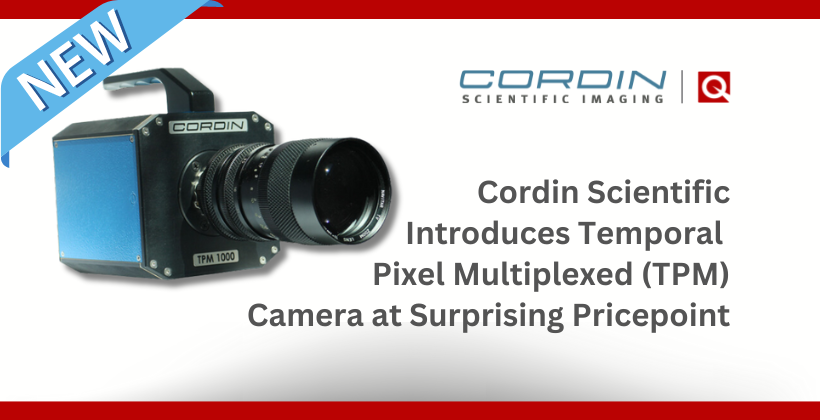

Cordin Scientific Introduces TPM Camera at Surprising Pricepoint

The brand new Cordin Model TPM-1000 high-speed CMOS camera offers a ground-breaking combination of 10 Mfps high-speed framing camera performance with a dramatic new pricepoint and compact package size.

The Cordin TPM-1000 captures images at frame rates of up to 10 million frames per second and up to 1 mega-pixel resolution. The system uses a new TPM architecture jointly developed by Cordin and Oxford University with a unique CMOS sensor chip capable of capturing sub-array images in a burst mode.

With its flexible TPM architecture, the TPM-1000 allows the user to trade off the number of frames in a burst versus resolution, given the available on-chip pixel memory. The Model TPM-1000 camera can be triggered by the event being photographed, and can accept triggers in advance or for some time after the event of interest. It can also provide the trigger to initiate the event.

Features

  • Very high framing rate: up to 10 million fps (100ns interframe), 40ns exposure time
  • Flexible: variable tradeoff between number of frames and resolution (up to 1K x 1K)
  • Solid-state design: no moving parts
  • Software control: easy control of exposure and timing parameters through user-friendly PC software Laser and pulsed flash illumination synchronisation
  • Uses standard C-mount objective lenses (not included)

The system comes complete with Cordin’s control software application, and is controlled via Ethernet interface by the customer’s choice of standard Windows-based PC or laptop. Data may be saved in a wide variety of 8 bit file formats. Full 10 bit images are saved in 16 bit TIFF file format.

Specifications

Want to find out more about the Cordin TPM1000?

Contact our Technical Sales Manager, Dr. Luke Nicholls, by email below or call (01372) 378822.
