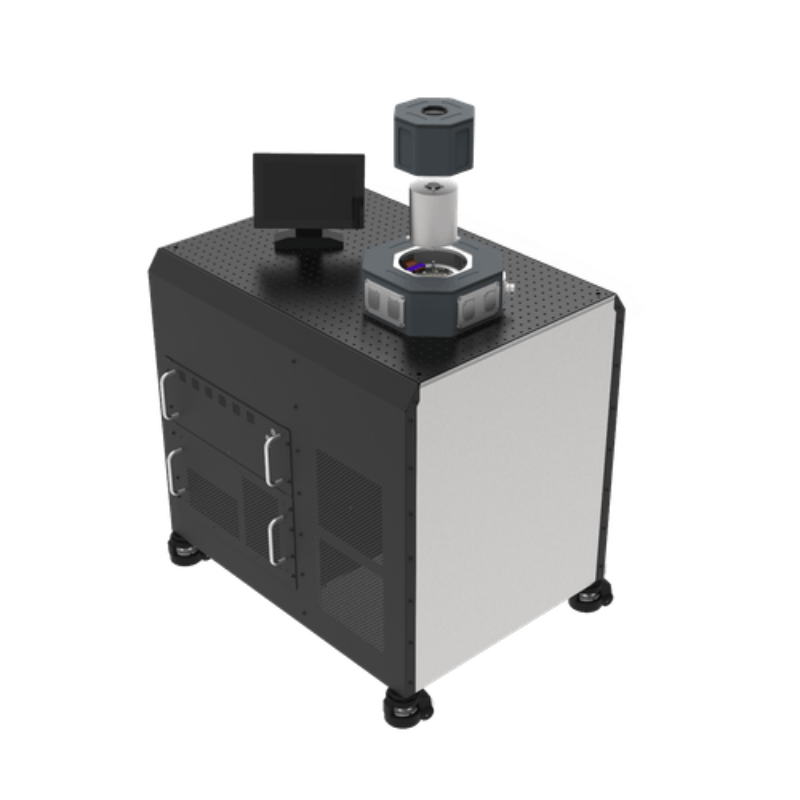

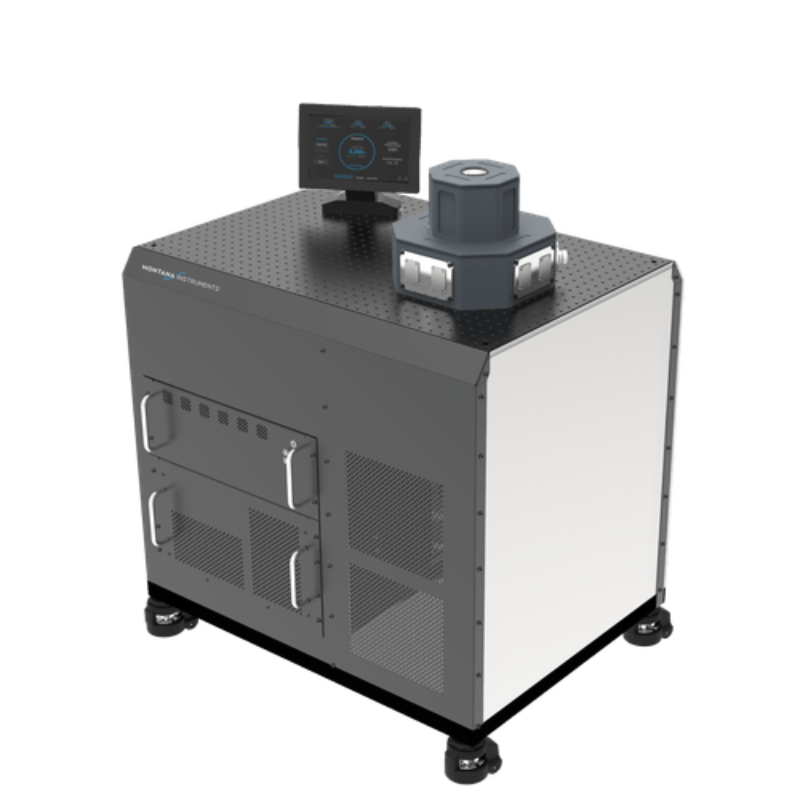

Montana Instruments RapidCycle™ 100 EC
Increase your throughput in electrical component cryogenic testing
Purpose‑built for high‑volume cryogenic testing, the RapidCycle Cryostat streamlines evaluation of electrical components. Its closed‑cycle system eliminates liquid‑helium logistics and offers intuitive push‑button control for every thermal cycle. Achieving cooldown, warmup, and sample exchange in under 2.5 hours, it maximises productivity and minimises downtime. Designed for flexibility, the RapidCycle can be easily customised to meet the most demanding test applications.
The 100mm <4 Kelvin sample space provides flexibility for ever changing devices and tests. The sample space includes a larger vacuum area for custom components and wire management. The systems can be integrated with up to 48 DC I/O, 12 RF, or combination of both. Our in-house Custom Engineering team can help design and support a wide range of designs to meet your demanding requirements.
Closed-cycle cryostat with unparalleled cooldown and warmup performance to increase your throughput in cryogenic testing
FEATURES
- Cooldown, Warmup, sample exchange – For engineers tasked with increasing the throughput of their cryogenic testing a full cooldown and warmup cycle with sample exchange can be completed in <2.5 Hours.
- RF & DC feedthroughs – multiple vacuum to cryogenic feedthroughs allow for additional DC and RF connections to your device under test.

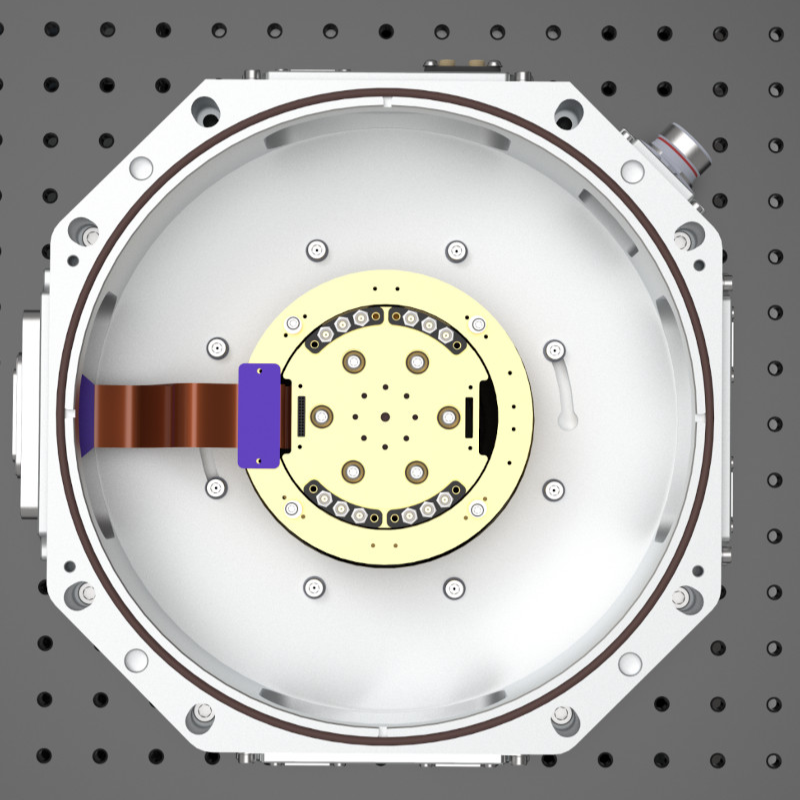

- 100mm Sample Space – The large 100mm 4 Kelvin platform supports a range of cryogenic test components.
- Touchscreen user interface – displays real-time temperature status, temperature stability and vacuum pressure readouts.
Profile
Profile
Profile
Profile
Profile
Profile
Profile
Montana Instruments is known for reliable, high performance and easy to use systems. The RapidCycle Cryostat follows this formula to provide exceptional cooldown and warmup performance for demanding electrical test applications. The intuitive control design allows users to quickly setup and start a cooldown to perform their tests. Remote connection and control is accomplished via ethernet and allows test engineers to monitor and control the system remotely.
