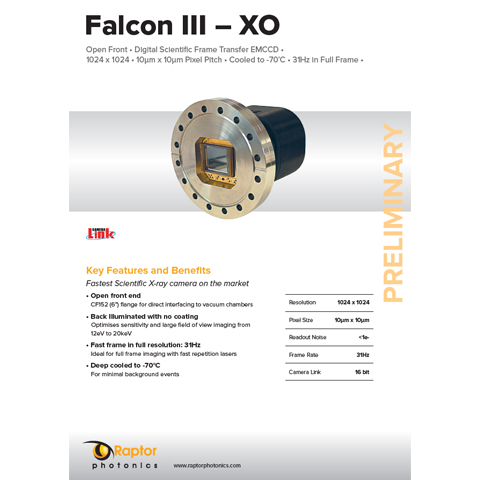

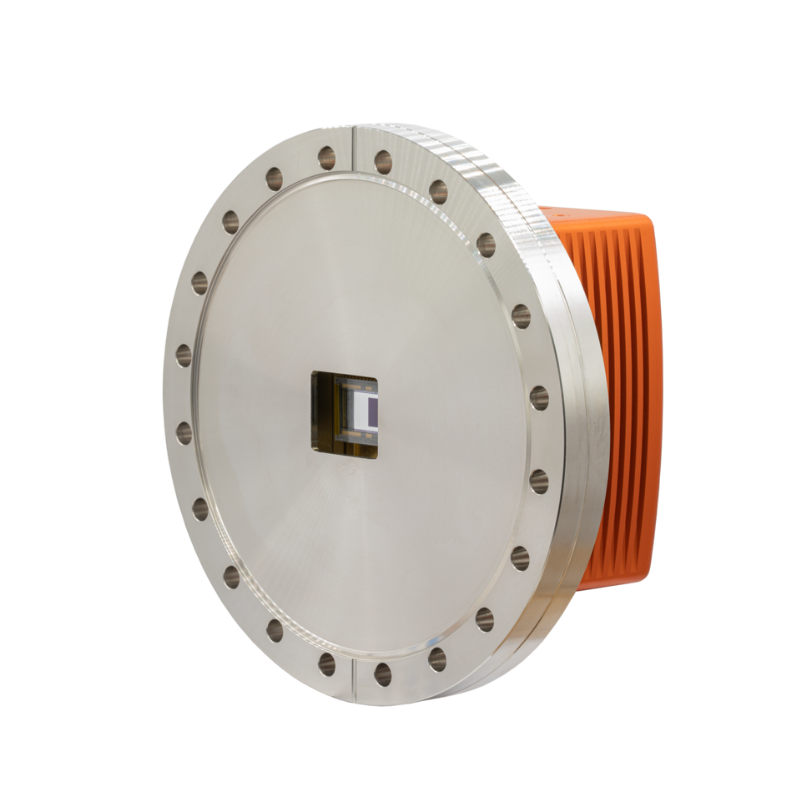

Raptor Falcon III XO – Open Front X-Ray
Fastest Scientific X-ray camera on the market
The only high energy direct X-Ray using a 1MP Frame Transfer EMCCD sensor. The Falcon III XO offers a combination of speed and sensitivity for soft X-Ray applications up to 20KeV. The camera runs at 31.5fps in full resolution, fasted with ROI and binning. It offers <1e- readout noise using EM Gain. The Falcon III XO is available with options on cooling, as well as a selection of CF flanges.
FEATURES
- Open front end – CF152 (6”) flange for direct interfacing to vacuum chambers
- Back-Illuminated with no coating – Optimises sensitivity and large field of view imaging from 1.2keV to 20keV
- Fast frame in full resolution: 34 fps – Ideal for full-frame imaging with fast repetition lasers
- Deep cooled to -70°C – For minimal background events
Profile
Profile
Profile
Profile
Profile
Profile
Profile
Raptor Photonics - Leaders in Digital Cameras
Downloads
Supplier Info
APPLICATIONS
Scientific
X-ray imaging and fluorescence (XRF) | X-Ray Diffraction (XRD) | X-ray microscope | RIXS | VUV/EUV/XUV Spectroscopy | Thin films and nanofibres | Material Composition and Structure | X-ray plasma diagnostics | Holography and lithography
