M91 FastHall™ Measurement Controller
A new approach to Hall measurement
The MeasureReady M91 is a revolutionary, all‑in-one Hall analysis instrument that delivers significantly higher levels of precision, speed, and convenience to researchers involved in the study of electronic materials.
Featuring Lake Shore’s patented* new FastHall measurement technique, the M91 fundamentally changes the way the Hall effect is measured by eliminating the need to switch the polarity of the applied magnetic field during the measurement. This breakthrough results in faster and more accurate measurements, especially when using high field superconducting magnets or when measuring very low mobility materials.
*Protected by US patent number 9797965. Other patents pending.
REQUEST YOUR FREE HALL EFFECT HANDBOOK!
A convenient, single instrument

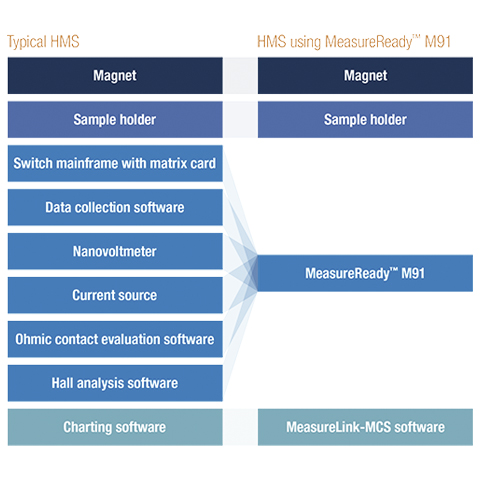

Traditional Hall effect measurement systems (HMS) provide basic electrical measurement instrumentation combined with a switching unit to measure sample resistivity and Hall voltages, but must rely on separate PC-based software to perform pre- and post-measurement calculations in order to ultimately derive the physical parameters that researchers need to know—resistivity, carrier type, carrier concentration, mobility, and Hall coefficient.
The M91 FastHall measurement controller combines all of the necessary HMS functions into a single instrument, automating and optimizing the measurement process, and directly reporting the calculated parameters.
Adding HMS capabilities to any research platform has never been easier!
More about the M91 FastHall™ controller
Better measurements in less time
M91 materials and measurements
Operate easily
Simpler and more convenient
- All-in-one instrument
- Automatically selects optimal excitation and measurement levels
- Automatically executes measurement steps
- Provides complete Hall analysis
- Easy to use, easy to integrate with existing lab systems
Makes better measurements, faster
- No need to reverse the magnetic field with FastHall
- Up to 100× faster for low mobility materials
- Improves accuracy by minimizing thermal drift
Cost effective
- Build a new Hall system or upgrade an existing one
- Add state-of-the-art Hall measurement capability to any lab
- Use with any type of magnet

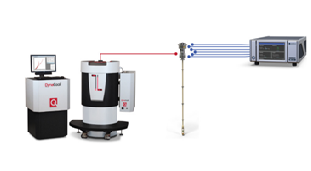

In collaboration with Quantum Design, Lake Shore has created a measurement kit to offer a complete Hall measurement solution. The M91 and Lake Shore’s Hall insert can be seamlessly integrated into Quantum Design’s PPMS. Plus, it is optimised for low noise and resistances up to 200 GΩ.
VIDEOS
Downloads
Supplier Info

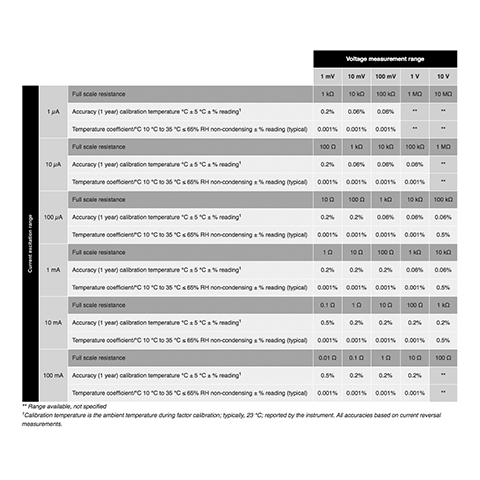

M91 Specifications
Specifications
