Lake Shore also supplies heat sink bobbins, a beryllium oxide heat sink chip, and a four-lead resistance sample holder. Cartridge heaters and vacuum feedthrough products are also available.

DR. SHAYZ IKRAM

TECHNICAL DIRECTOR
+44 (0)1372 378822
shayz@qd-uki.co.uk

DR. SATYAM LADVA

Technical Product Manager X-ray Systems & Optical Components
+44 (0)1372 378822
satyam@qd-uki.co.uk

Products

Heat sink bobbins for cryostat lead wires are gold-plated OFHC or ETP copper for removing heat flowing down sensor leads. The small bobbin holds 4 to 8 phosphor bronze or manganin wires, and the large bobbin holds up to 40, depending on wire gauge and number of wraps. 4 or 5 wraps are usually sufficient, using VGE-7031 varnish or Stycast® epoxy for potting the wires. Do not use copper or other high conductivity wires.

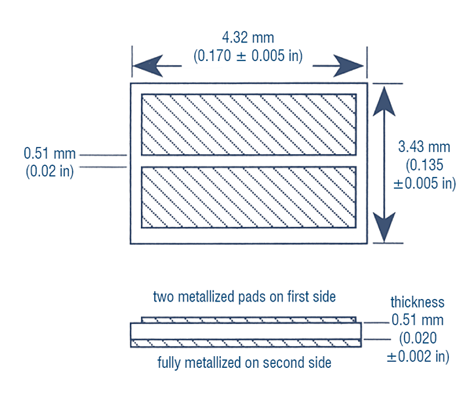

Beryllium oxide heat sink chips can be used to heat sink electrical leads or samples at low temperature with good electrical isolation. They can also be used as a buffer layer to take up expansion mismatch between an object with large expansion coefficient (e.g., copper, epoxy) and an object with a low expansion coefficient (e.g., a DT-670-SD diode sensor). One side is fully metallised with molybdenum/manganese, followed by nickel and gold. It is easily soldered with In/Ag solders. Sn/Pb solders can pull up metallisation under some circumstances. The other side has two 1.27 mm (0.05 in) by 4.06 mm (0.16 in) electrically isolated solder pads. The thermal conductivity is several times that of copper in the liquid nitrogen region but about 1000 times lower at liquid helium temperature. The magnetic susceptibility is about that of nonmagnetic stainless steel.

Note: Due to metallisation irregularities and surface dirt, it is not recommended that these chips isolate more than 100 V.

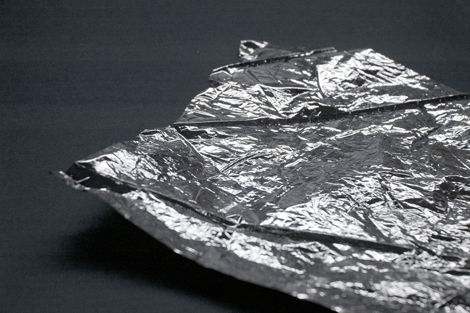

  • Aluminised plastic film
  • Minimizes heat transfer by conduction
  • Crinkled to provide stand-offs, eliminating the need for spacers

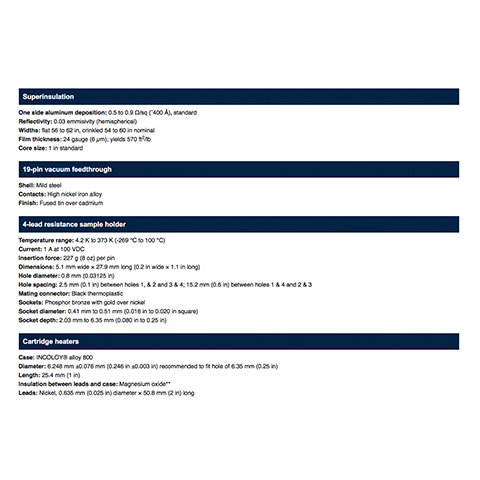

Click here for technical specifications

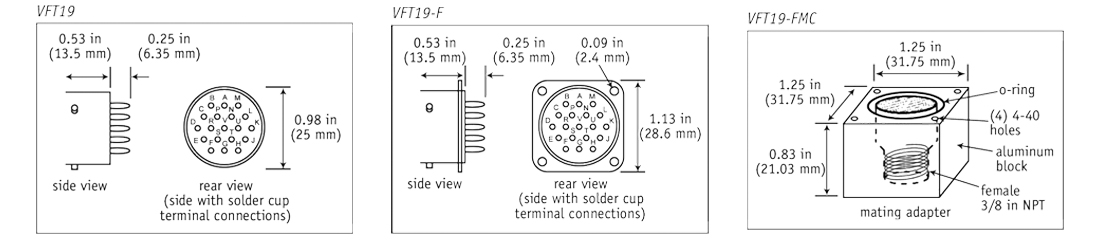

This hermetically sealed glass-to-metal electronic connector is designed to meet the dimensional requirements of MIL-C-26482 and is furnished with a silicone o-ring to seal against the mating connector plug shell. It is commonly used to pass electric signals into a vacuum chamber from the outside.

Note: The VFT19-FMC threads should be sealed with Teflon® tape or epoxy if a vacuum seal is important.

Click here for technical specifications

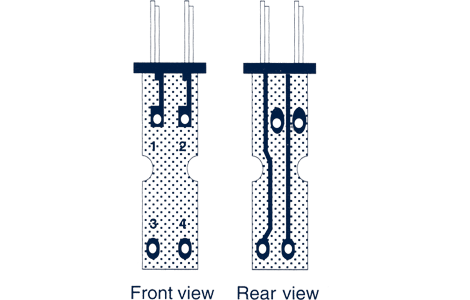

  • 4 pre-tinned and drilled solder pads
  • Plug-in convenience (4-pin plug)
  • Mating socket included

Click here for technical specifications

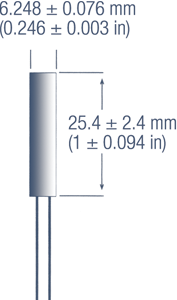

Lake Shore cartridge heaters can be used with all of our temperature controllers. Heaters have wattage ratings in dead air. In cryogenic applications, these cartridge heaters can handle many times the rated value if properly hear sunk or in liquid.

Part number Length V Ω W
HTR-50 25.4 ± 2.4 mm (1 ± 0.094 in) 50 50 50
HTR-25-100 25.4 ± 2.4 mm (1 ± 0.094 in) 50 25 100

Click here for technical specifications

  • Precision-wound nickel-chromium resistance wire
  • Efficient magnesium oxide insulation
  • CSA component recognition
  • 2 solid pins
  • High-temperature rated INCOLOY® case

1 roll = 12.7 mm × 65.8 m (0.5 in × 72 yd)

Click here for technical specifications

  • Excellent tape for use at cryogenic temperatures—does not degrade with time like masking tape
  • CHR Industries electrical tape
  • Yellow polyester film

RF pickup can affect an experiment by upsetting the instrument reading, by being rectified by a diode thermometer to appear as an offset, or by transmitting through the system wiring to pollute the experimental environment. A ferrite bead will reduce the effect of RF pickup on instrument leads by acting like a high impedance (resistance) to high frequency noise. DC and slow moving signals are not affected. The bead can be clamped around existing wiring for ease of installation.
