Model 8425 DC Hall System with Cryogenic Probe Station

Non-destructive Hall measurement of wafer-scale materials in a tightly controlled cryogenic environment

Advancing materials research

Featuring the latest in Lake Shore Hall measurement capabilities, the Model 8425 is ideal for a number of applied physics, electrical engineering, materials research, and product R&D applications. Measure electronic and magneto-transport properties of novel materials, including:

  • III-V semiconductors—InP, InSb, InAs, GaN, GaP, GaSb, AIN-based devices, high-electron mobility transistors (HEMTs), heterojunction bipolar transistors
  • II-VI semiconductors—CdS, CdSe, ZnS, ZnSe, ZnTe, HgCdTe
  • Elemental semiconductors—Ge, Si on insulator devices (SOI), SiC, doped diamond SiGe-based devices (HBTs and FETs)
  • High-temperature superconductors

Direct and derived measurements as a function of field and temperature

  • Hall voltage
  • IV curve measurements
  • Resistance
  • Magnetoresistance
  • Magnetotransport
  • Hall coefficient
  • Hall mobility
  • Anomalous Hall effect (AHE)
  • Carrier type/concentration/density

More about the Model 8425
Options for the Model 8425

Features of the Model 8425

  • A complete Hall effect measurement system using device probing under vacuum in a probe station
  • Supports a range of DC field Hall measurements—measure mobility on wafer-scale materials and structures as a function of temperature and field
  • DC fields to 2 T and resistances from 0.5 mΩ to 100 GΩ
  • Vary temperatures from 10 K to 400 K using closed-cycle refrigerator—no cryogen required
  • Includes intuitive 8400 Series software for easy system operation, data acquisition, and analysis
  • Supports exporting of data for multi-carrier analysis
  • 3-year standard warranty



DR. SHAYZ IKRAM

TECHNICAL DIRECTOR
+44 (0)1372 378822
shayz@qd-uki.co.uk

JOSH HOOK

SALES/SERVICE SUPPORT ENGINEER
+44 (0)1372 378822
josh@qd-uki.co.uk

Downloads

Supplier Info

For even more information, why not visit our suppliers website.

Visit website

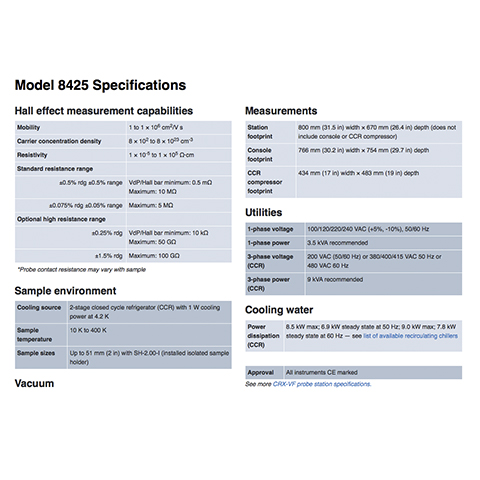

Model 8425 Specifications
