Model 325 Cryogenic Temperature Controller

The Model 325 dual-channel cryogenic temperature controller is capable of supporting nearly any diode, RTD, or thermocouple temperature sensor. Two independent PID control loops with heater outputs of 25 W and 2 W are configured to drive either a 50 Ω or 25 Ω load for optimal cryocooler control flexibility. Designed with ease of use, functionality, and value in mind, the Model 325 is ideal for general-purpose laboratory and industrial temperature measurement and control applications.

Model 325 features

  • Operates down to 1.2 K with appropriate sensors
  • Two sensor inputs
  • Supports diode, RTD, and thermocouple sensors
  • Sensor excitation current reversal eliminates thermal EMF errors for resistance sensors
  • Two autotuning control loops: 25 W and 2 W maximum
  • Control loop 2: variable DC voltage source from 0 to 10 V maximum
  • IEEE-488 and RS-232C interfaces



Ben Parker

SALES MANAGER
+44 (0)1372 378822
ben@qd-uki.co.uk

Satyam Ladva

Technical Sales Engineer
+44 (0)1372 378822
satyam@qd-uki.co.uk

Downloads

Supplier Info

For even more information, why not visit our suppliers website.

Visit website

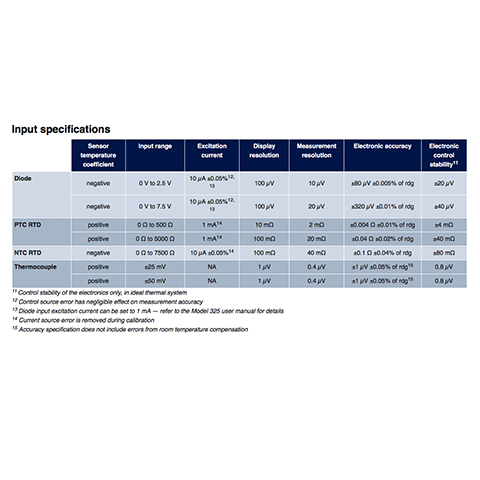

Model 325 Specifications
