Model CPX-HF Cryogenic Probe Station

The Lake Shore CPX-HF probe station enhances the standard probe station capabilities with the addition of a ±1 T horizontal field superconducting magnet. It can do all the C-V, I-V, microwave, and electro-optical probing that a CPX can do, plus in-plane horizontal field superconducting magnetic measurements.

To maximize the field of the horizontal magnet, however, the sample size is 25 mm (1 in). Researchers can use it for testing magneto-transport parameters. The sample can be maintained at elevated temperature during cooldown, reducing the potential for condensation, a critical requirement for measuring organic materials. The CPX-HF is one of Lake Shore’s premium probe stations for combining microwave measurements with magnetic field.


The CPX-HF is designed to enable true 90° wafer probing on wafers up to 25 mm (1 in) in diameter. The continuous refrigeration station uses liquid helium and can be operated with liquid nitrogen; however, the superconducting magnet requires liquid helium to operate. The CPX-HF operates over a temperature range of 4.2 K to 400 K with the option to extend the base temperature to 2 K.

Sample holders
Probing configurations
Vision system

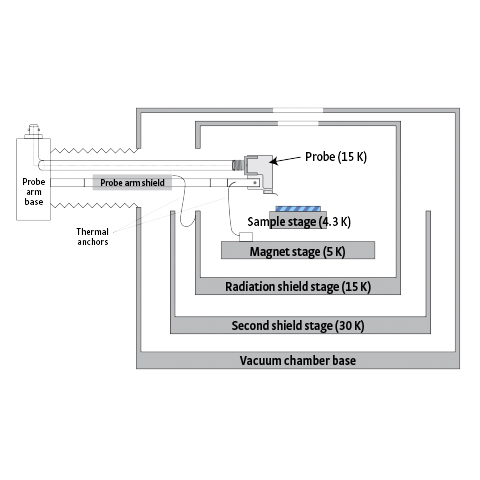

Sample temperature accuracy is key

Features of the Model CPX-HF Superconducting Magnet-based Horizontal Field Probe Station

  • Standard probing plus in-plane horizontal field superconducting magnetic measurements
  • Multiple radiation shields for best low temperature performance
  • Minimize sample condensation during cool-down
  • True 90° probing





Ben Parker

SALES MANAGER
+44 (0)1372 378822
ben@qd-uki.co.uk

Downloads

Supplier Info

For even more information, why not visit our suppliers website.

Visit website

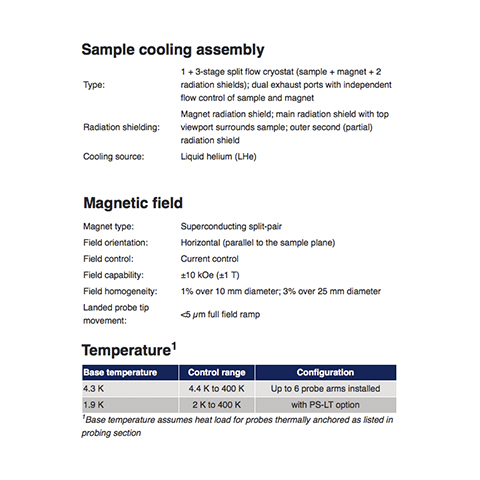

CPX-HF Specifications
