Model TTPX Cryogenic Probe Station

The TTPX probe station is an affordable, entry-level probe station capable of making a wide variety of non-destructive, standard electrical device measurements.

The compact table-top design is perfect for academic and laboratory research settings. The TTPX provides efficient cryogenic temperature operation and control with a continuous refrigeration system using either liquid helium or liquid nitrogen.

The TTPX operates over a temperature range of 4.2 K to 475 K with options to extend as low as 3.2 K or to a higher range of 20 K to 675 K. This model accommodates full and partial wafers up to 51 mm (2 in) in diameter. A wide selection of probes, cables, sample holders, and options makes it possible to meet specific measurement applications.

The TTPX is Lake Shore’s premium design for electro-optical materials characterisation with the backside optical access option and compatible optical sample holders. I-V, C-V, and microwave measurements are standard options on the TTPX. Its versatility and affordability make the TTPX the tool of choice for many researchers around the world. Features the Lake Shore Model 336 Cryogenic Temperature Controller

Sample holders
Probing configurations
Vision system

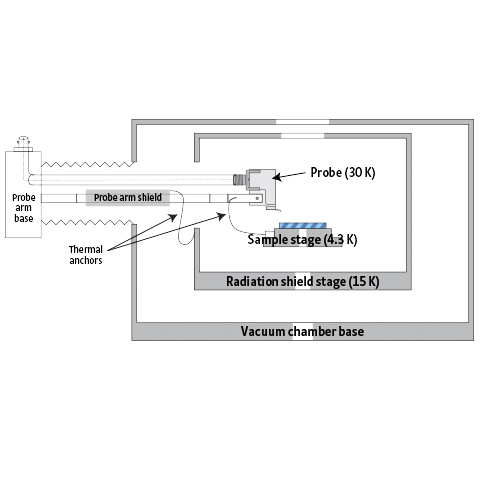

Sample temperature accuracy is key

Features of the Model TTPX Tabletop Probe Station

  • Entry-level system
  • Compact table-top design
  • Affordable
  • Rapid cooldown and warmup
  • Backside optical access




+44 (0)1372 378822


Technical Product Manager X-ray Systems & Optical Components
+44 (0)1372 378822


Supplier Info

For even more information, why not visit our suppliers website.

Visit website

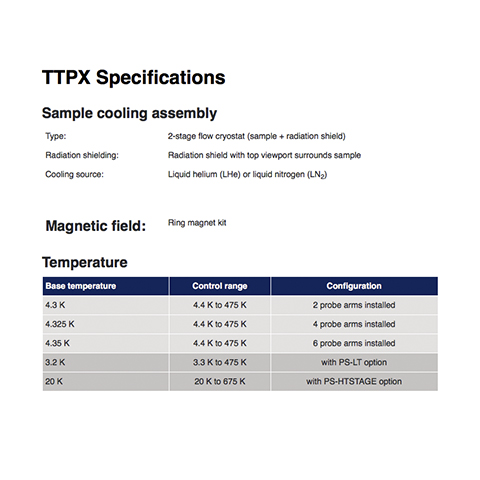

TTPX Specifications
