High-Power Picosecond and Femtosecond Lasers from 515 to 1970 nm
Rainbow HP Series from NPI Lasers
The Rainbow HP series comprises high-power picosecond and femtosecond laser systems covering wavelengths from 515 nm to approximately 2 µm. Depending on the model, the lasers provide average output powers from more than 200 mW to more than 5 W, with pulse durations below 10 ps or as short as 150 fs.
The series includes frequency-converted visible systems as well as high-power sources around 780 nm, 1 µm, 1.55 µm and 2 µm. This allows users to select a source according to wavelength, pulse duration, average power and application requirements.
Rainbow HP lasers are designed as fully integrated, turn-key systems for scientific and industrial applications including microscopy, spectroscopy, nonlinear optics, terahertz generation and photonics research.
FEATURES
- Picosecond and femtosecond models from 515 to 1970 nm
- Average output powers from >200 mW to >5 W
- Visible, near-infrared and approximately 2 µm output options
- Spatially collimated free-space output
- Factory-configurable repetition rates available for selected models
- Fully integrated turn-key systems
- Air-cooled operation
- Model-specific options including multiple wavelengths or reduced repetition rates
Profile
Profile
Profile
Profile
Profile
Profile
Profile
MODELS

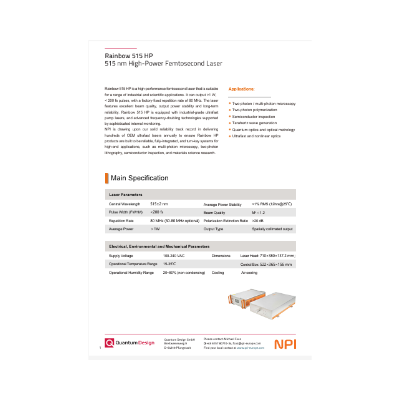

Rainbow 515 HP
The Rainbow 515 HP provides more than 1 W of green output at 515 ± 2 nm with pulse durations below 200 fs. The standard repetition rate is 80 MHz, with factory-configured rates from 30 to 80 MHz stated as optional.
The model combines femtosecond pulse duration with watt-level visible output.

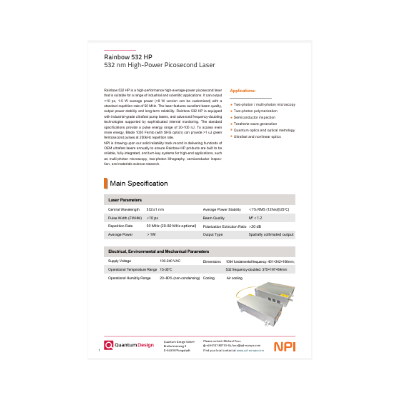

Rainbow 532 HP
The Rainbow 532 HP is the green picosecond model of the series. It provides pulses below 10 ps at 532 ± 1 nm and operates at a standard repetition rate of 50 MHz. Repetition rates from 20 to 80 MHz are available as options.
The manufacturer describes standard configurations between 1 and 5 W and customised versions above 8 W. The formal specification table guarantees more than 1 W.

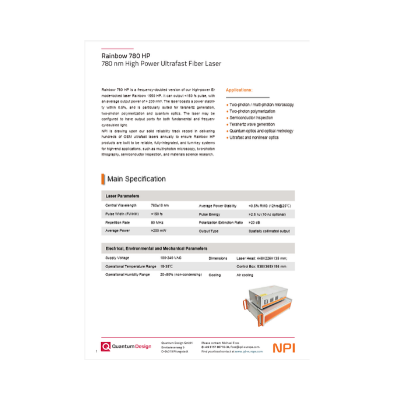

Rainbow 780 HP
The Rainbow 780 HP is generated by frequency doubling the Rainbow 1550 HP platform. It provides more than 200 mW at 780 ± 10 nm with pulse durations below 150 fs.
The standard pulse energy is above 2.5 nJ, while a 10 nJ version is stated as optional. Configurations providing both fundamental and frequency-doubled output may be available.

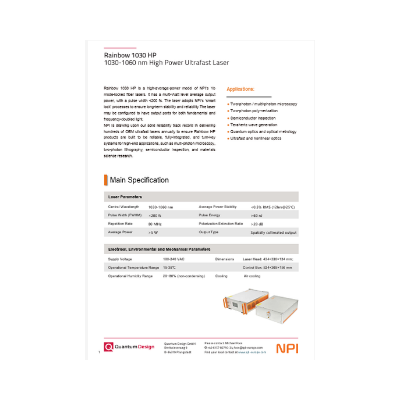

Rainbow 1030 HP
The Rainbow 1030 HP is the highest-average-power model in the documented series. It provides more than 5 W between 1030 and 1060 nm, with pulse durations below 200 fs and pulse energies above 60 nJ.
The manufacturer also states that configurations with fundamental and frequency-doubled output ports may be available.

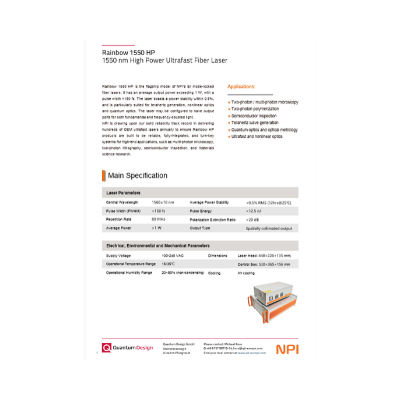

Rainbow 1550 HP
The Rainbow 1550 HP provides more than 1 W at 1560 ± 10 nm with pulse durations below 150 fs and pulse energies above 12.5 nJ.
It is the fundamental source platform associated with the frequency-doubled Rainbow 780 HP and may be configured with fundamental and frequency-doubled output ports.

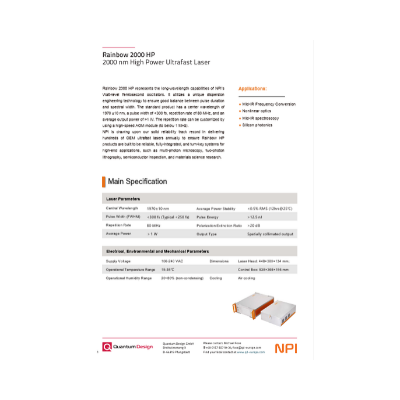

Rainbow 2000 HP
The Rainbow 2000 HP extends the series to approximately 2 µm. It provides more than 1 W at 1970 ± 10 nm with pulse durations below 300 fs and typically below 250 fs.
The standard repetition rate is 80 MHz. According to the product description, an optional high-speed AOM module can reduce the repetition rate to below 1 MHz.
Model Comparison
| Model | Spectral Range | Pulse Regime | Central Wavelength | Pulse Width | Repetition Rate | Average Power |
|---|---|---|---|---|---|---|
| Rainbow 515 HP | Green | Femtosecond | 515 ± 2 nm | <200 fs | 80 MHz; 30–80 MHz optional | >1 W |
| Rainbow 532 HP | Green | Picosecond | 532 ± 1 nm | <10 ps | 50 MHz; 20–80 MHz optional | >1 W |
| Rainbow 780 HP | Near infrared | Femtosecond | 780 ± 10 nm | <150 fs | 80 MHz | >200 mW |
| Rainbow 1030 HP | Near infrared | Femtosecond | 1030–1060 nm | <200 fs | 80 MHz | >5 W |
| Rainbow 1550 HP | Near infrared | Femtosecond | 1560 ± 10 nm | <150 fs | 80 MHz | >1 W |
| Rainbow 2000 HP | Around 2 µm | Femtosecond | 1970 ± 10 nm | <300 fs; typically <250 fs | 80 MHz | >1 W |
Choosing the Right Rainbow HP Model
| Choose this model if you need … | Recommended Model | Key Reason |
|---|---|---|
| High-power green femtosecond pulses | Rainbow 515 HP | >1 W at 515 nm with <200 fs pulse width |
| High-power green picosecond pulses | Rainbow 532 HP | <10 ps pulses with a standard 50 MHz repetition rate |
| Femtosecond pulses around 780 nm | Rainbow 780 HP | <150 fs pulses with optional pulse energy up to 10 nJ |
| The highest average power in the series | Rainbow 1030 HP | >5 W output and >60 nJ pulse energy |
| High-power femtosecond output around 1.55 µm | Rainbow 1550 HP | >1 W with <150 fs pulses |
| Femtosecond output around 2 µm | Rainbow 2000 HP | 1970 nm output for mid-IR-related applications |
