Model 346 Cryogenic Temperature Controller
Pre-order Now
The Model 346 cryogenic temperature controller delivers rapid, precise temperature control so you can reach stable conditions faster and keep experiments on schedule. With four 100 W heater outputs, it warms up more than twice as quickly as the Model 336, minimizing downtime and maximising productivity.
Equipped with 10 temperature sensor inputs as standard, all but the most complex systems can be fully monitored and controlled with ease. Each input can read down to 300 mK with the right Cernox or Rox sensor without self-heating, or up to 600 °C with 100 Ω platinum sensors. For more advanced systems, option cards can be added to increase the number of inputs to a maximum of 26, or push to higher temperature with the use of thermocouples.
Next-generation temperature controller
400 W of control power with measurements down to 300 mK

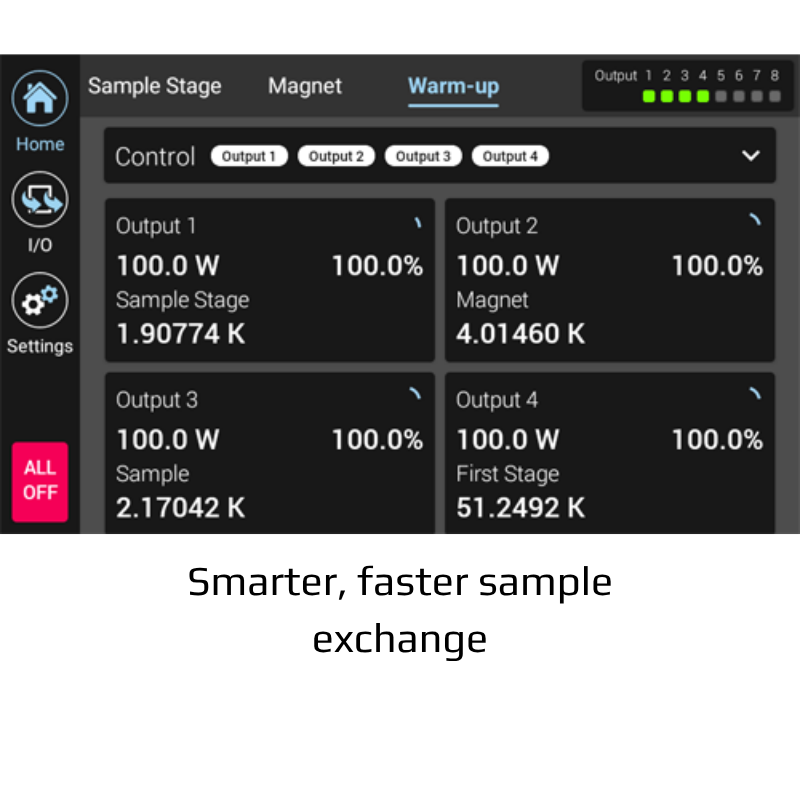

Enhanced system control is achieved through two digital inputs for external triggering and two relays. The touchscreen interface ensures simple setup and monitoring, while the included ColdSync™ software facilitates advanced setup, initial configuration, and comprehensive data monitoring.
Model 346 features
- Best choice for large cryogenic systems requiring increased heater power
- Temperature control from 300 mK to 1,505 K
- 10 sensor inputs — expandable to 26 inputs with option cards

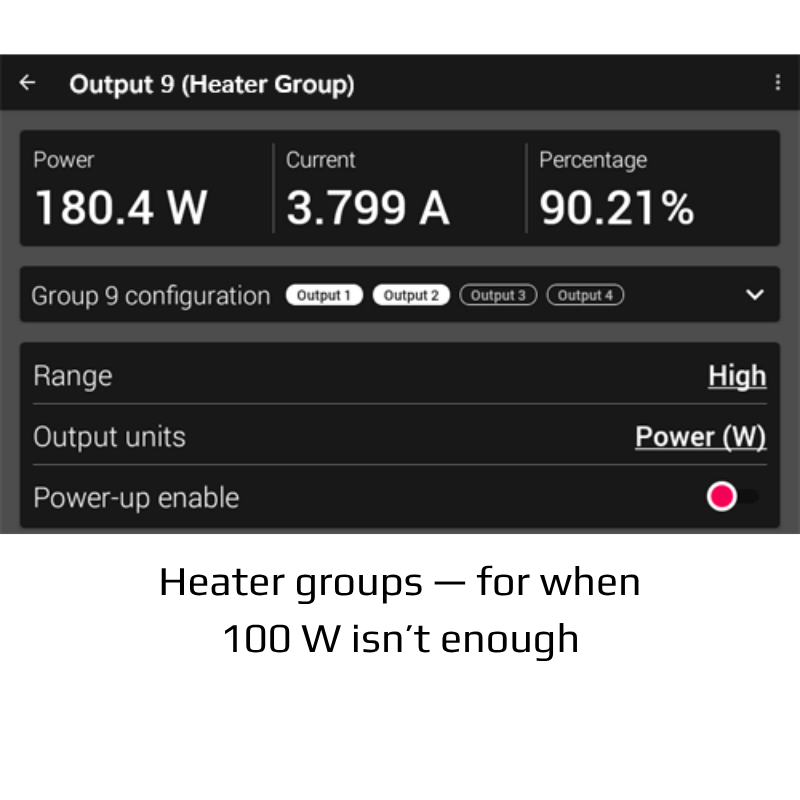

- 4 PID-controlled 100 W heater outputs (400 W total) for rapid warm-up
- 4 additional PID-controlled 1 W heater outputs
